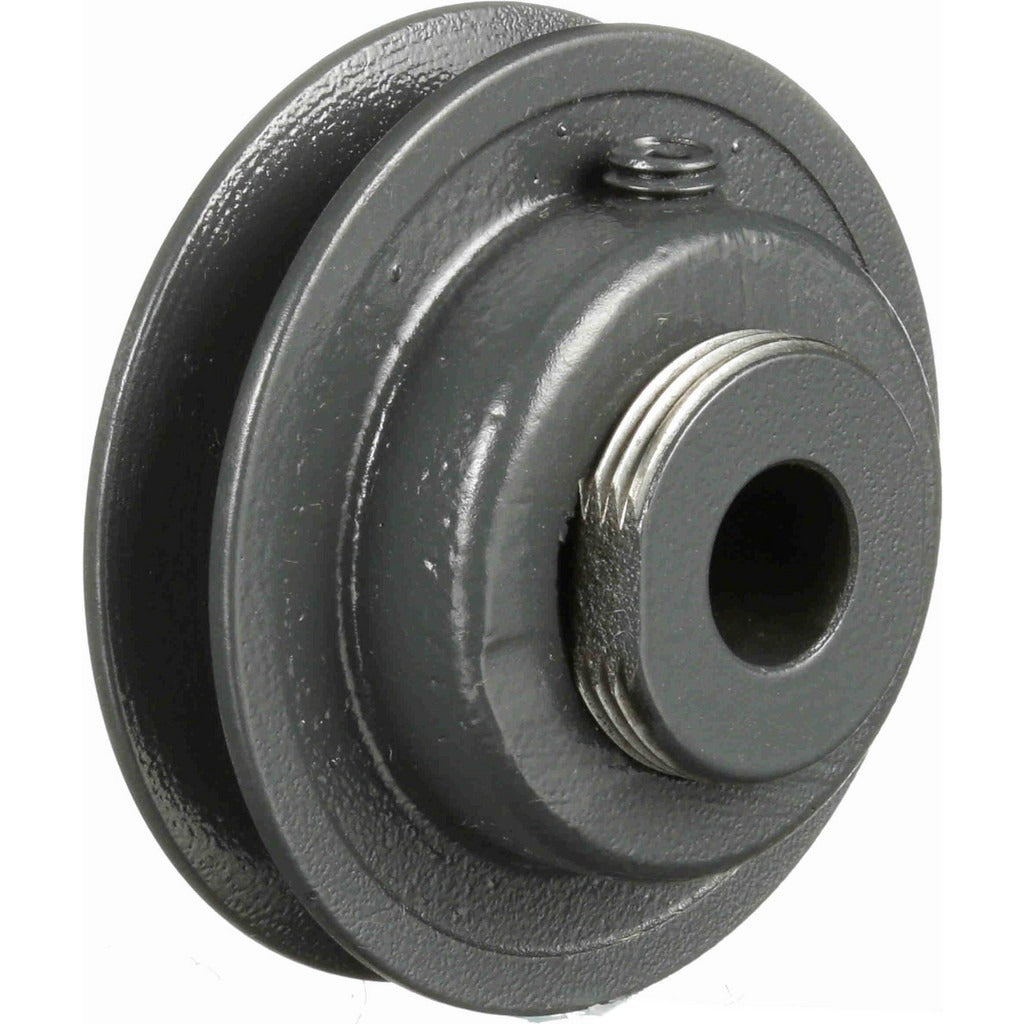

Browning 1045228 Variable Pitch Sheave 1 Groove 3L Belt

Product Description

The BROWNING 1045228 is a single-groove variable pitch sheave designed for adjustable-speed belt drive applications in HVAC, industrial fan, and blower systems. The sheave accepts a 0.5 inch bore and measures 2.5 inches in outside diameter, with a sheave thickness of 1.6875 inches and a face width range of 0.53125 to 0.78125 inches. Cast iron construction provides durability under continuous rotational load. The variable pitch design allows technicians to fine-tune driven equipment speed without swapping fixed sheaves, making it a practical tool during system commissioning and airflow balancing. Licensed HVAC technicians and mechanical contractors are the primary installers.

This sheave is used in light-duty belt drive systems found in residential and light commercial HVAC equipment, including air handlers, blower assemblies, and exhaust fans. It is rated for 3L belt section drives. The adjustable pitch range accommodates minimum pitch diameters from 1.6 inches to a maximum of 2.4 inches for 3L belt types, and requires a minimum of 4 open turns to engage 3L belts properly. It is suited for applications where periodic speed adjustments are part of routine service or initial setup.

Key Features

• Variable pitch design enables field speed adjustment without replacing the sheave
• Single groove configuration for 3L belt section drives
• 0.5 inch bore fits standard HVAC blower motor shafts
• Cast iron construction resists wear under sustained rotational loads
• Pitch diameter adjustable from 1.6 inches to 2.4 inches for 3L belts
• Compact 2.5 inch outside diameter suits space-constrained blower compartments

Compatibility

Designed as a replacement or upgrade variable pitch sheave for 3L belt section drives in residential and light commercial HVAC blower and fan assemblies.

Installation Notes

Installation is performed by licensed HVAC technicians or qualified mechanical contractors. Disconnect and lock out electrical power to the motor before removing or installing any sheave. Ensure the bore is properly aligned with the motor shaft and that set screws are secured before energizing the drive. Adjust pitch diameter and belt tension according to the equipment manufacturer specifications before returning the system to service.
