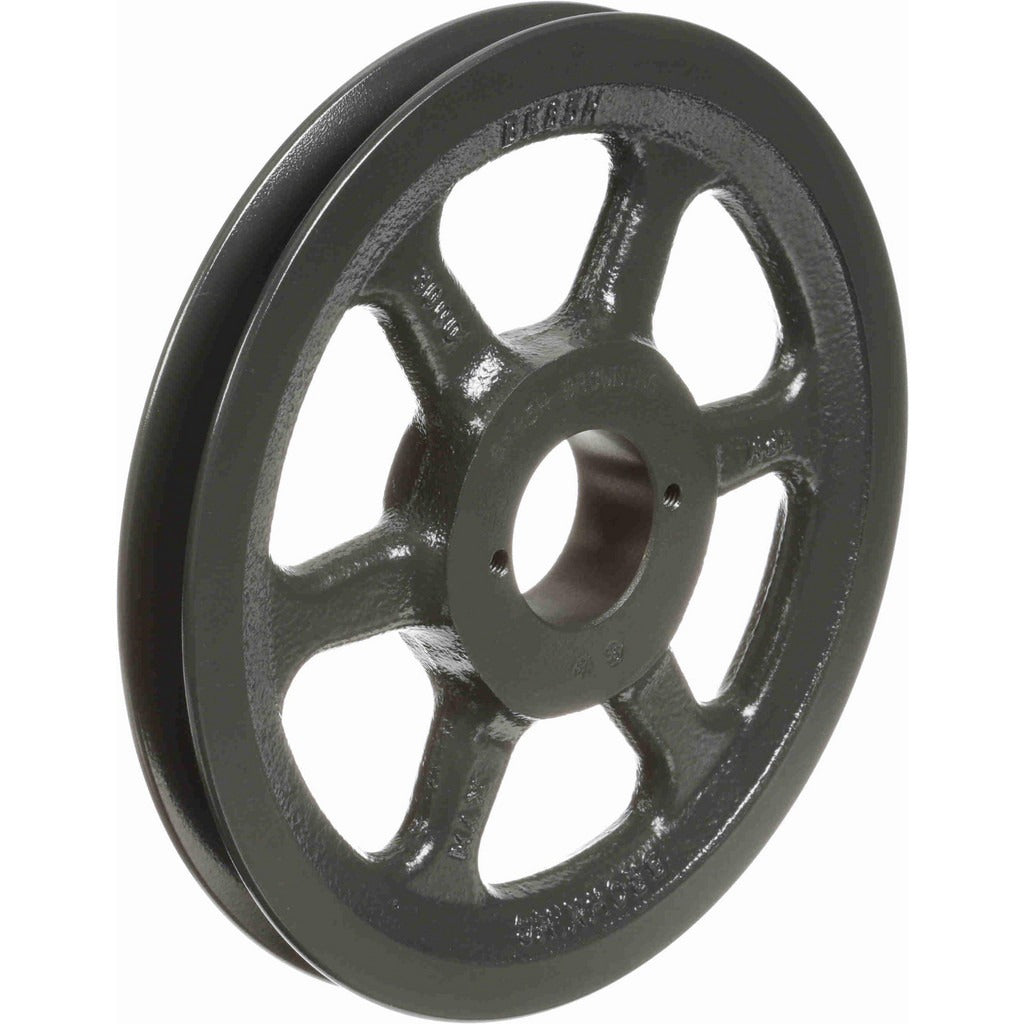

Browning 1042589 Qd Bushed V Belt Sheave 1 Groove 8.25 in

Product Description

The BROWNING 1042589 is a single-groove, QD (Quick Detachable) bushed V-belt sheave designed for industrial and commercial belt-drive applications. Constructed from cast iron, this sheave accepts an H-style QD bushing, allowing fast installation and removal without special tooling. The outside diameter measures 8.25 inches, with a belt pitch A diameter of 7.5 inches and a belt pitch B diameter of 7.9 inches. Bore diameter range runs from 3/8 inch minimum to 1-1/2 inch maximum, accommodating a wide variety of shaft sizes. The part weighs 4.65 pounds. HVAC technicians, millwrights, and mechanical contractors install this type of sheave on fan drives, blower systems, and general power-transmission equipment.

This sheave is compatible with A-section and B-section V-belts, making it a versatile option across residential and light commercial HVAC blower assemblies, industrial fan drives, and other belt-driven rotating equipment. The QD bushing design enables precise shaft alignment and repeatable torque retention, which is especially useful in multi-unit installations or planned-maintenance environments where sheaves are replaced on a regular schedule.

Key Features

• Single-groove design for A-section and B-section V-belts
• Outside diameter of 8.25 inches with belt pitch A diameter of 7.5 inches
• H-style QD bushing interface for tool-free removal and reinstallation
• Bore range from 3/8 inch to 1-1/2 inch covers common shaft sizes
• Cast iron construction for durability in continuous-duty drive applications
• Weighs 4.65 pounds for straightforward single-tech handling during service

Compatibility

Designed for use with A-section and B-section V-belts and an H-style QD bushing. Suitable as an OEM-style or aftermarket replacement sheave on belt-drive systems requiring a single-groove, 8.25-inch outside-diameter sheave with H bushing fitment.

Installation Notes

Installation and removal must be performed by a qualified millwright, HVAC technician, or mechanical contractor. Always de-energize the drive system and lock out the power source before removing or installing sheave components. Verify shaft diameter falls within the 3/8-inch to 1-1/2-inch bore range before selecting the appropriate H-style QD bushing. Follow the bushing manufacturer torque sequence for the bushing cap screws to ensure proper seating and shaft grip.
