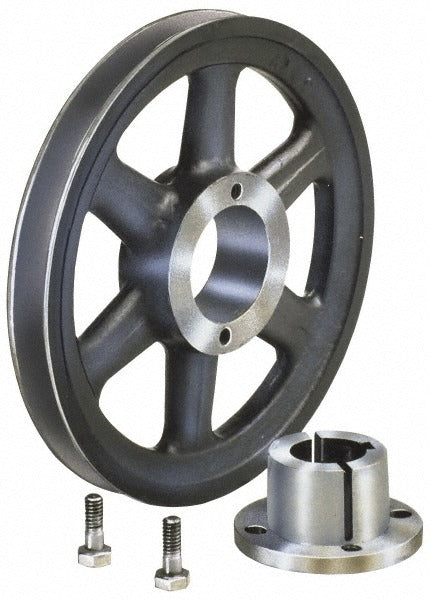

Browning 1042431 Qd V Belt Sheave 1 Groove 4.25 in Od

Product Description

The BROWNING 1042431 is a quick-detachable (QD) bushed V belt sheave designed for single-groove belt drive applications in HVAC, industrial, and mechanical systems. It features an H-style bushing mount and an outside diameter of 4.25 inches, with a belt pitch A diameter of 3.5 inches and a belt pitch B diameter of 3.9 inches. The bore accepts shaft diameters from 3/8 inch up to 1.5 inches, making it adaptable across a range of shaft sizes. Licensed HVAC technicians and mechanical contractors typically install this sheave when configuring or replacing belt-driven blower and fan assemblies.

This sheave is suited for residential and light commercial belt drive systems where a single-groove V belt configuration is required. Common install scenarios include air handler blowers, exhaust fans, and other motor-to-load belt drive setups that use A-section or comparable V belts. The H bushing style allows the sheave to be paired with a separately sourced QD H bushing to achieve the desired final bore diameter within the specified range.

Key Features

• Single-groove design for straightforward single V belt drive configurations
• QD H-style bushing mount for precise bore sizing and secure shaft attachment
• Outside diameter of 4.25 inches with a belt pitch A diameter of 3.5 inches
• Bore diameter range from 3/8 inch to 1.5 inches accommodates varied shaft sizes
• Compact and durable construction appropriate for blower and fan drive service

Compatibility

Designed as an OEM-style replacement or new-installation sheave for single-groove V belt drive systems using H-style QD bushings and A-section or equivalent V belts.

Installation Notes

Installation is performed by licensed HVAC technicians or mechanical contractors. Disconnect and lock out power to the motor and driven equipment before beginning work. The QD bushing must be installed and torqued to the bushing manufacturer specifications using appropriate hand tools. Verify belt tension and sheave alignment after installation per industry standard belt drive practices.
