Browning 1028224 Single Groove Sheave 7/8 Bore 3.95 Od

Product Description

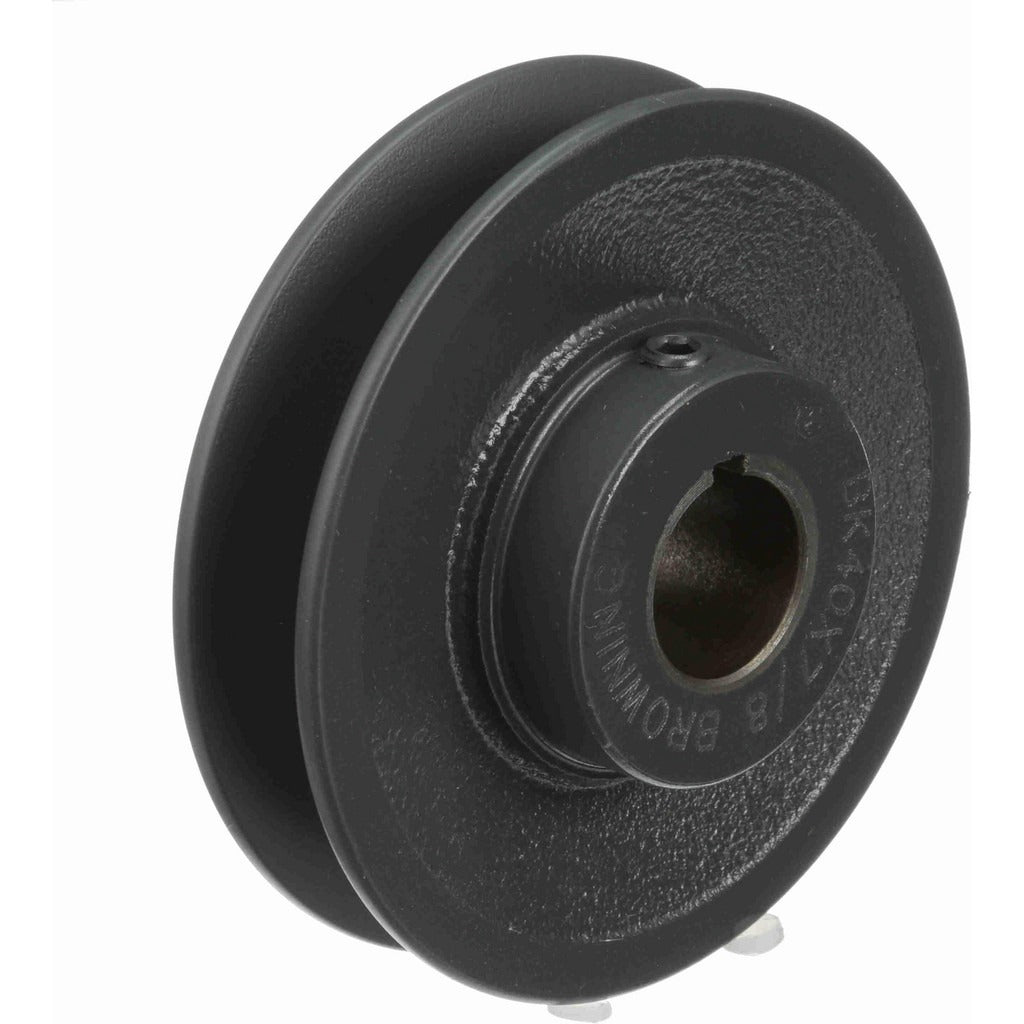

The BROWNING 1028224 is a finished bore single groove sheave designed for V-belt drive systems in HVAC, industrial, and mechanical power transmission applications. Cast from iron for durability, this sheave features a 7/8 inch finished bore and a 3.95 inch outside diameter. The belt pitch diameter measures 3.6 inches for B or A profile belts, with a pitch diameter of 3.2 inches for 4L or A belt types. The bore length through the hub runs 1-5/32 inches. At 1.7 pounds, it is a compact, single-groove unit suited for light-to-medium duty V-belt drive setups. Installation is typically performed by HVAC technicians or millwrights during motor or blower drive assembly or belt replacement service.

This sheave is used in single-belt V-belt drive configurations found in residential and light commercial HVAC systems, ventilation fans, blowers, and general power transmission equipment. It accepts standard B-section or A-section V-belts and 4L fractional horsepower belts, making it a practical replacement component in motor-to-blower drive assemblies. The finished bore means it is ready to mount on a 7/8 inch shaft without additional machining.

Key Features

• Finished bore design — ready to mount on a 7/8 inch shaft, no machining required
• Single groove configuration accepts standard A, B, or 4L V-belts
• Cast iron construction for wear resistance in belt drive applications
• Belt pitch diameter of 3.6 inches for B or A belt types
• Pitch diameter of 3.2 inches for 4L or A belt types
• Compact 1.7 pound weight suitable for residential and light commercial drive systems

Compatibility

Designed as an OEM-style replacement single groove sheave for V-belt drive systems using standard A-section, B-section, or 4L fractional horsepower V-belts on 7/8 inch shafts.

Installation Notes
