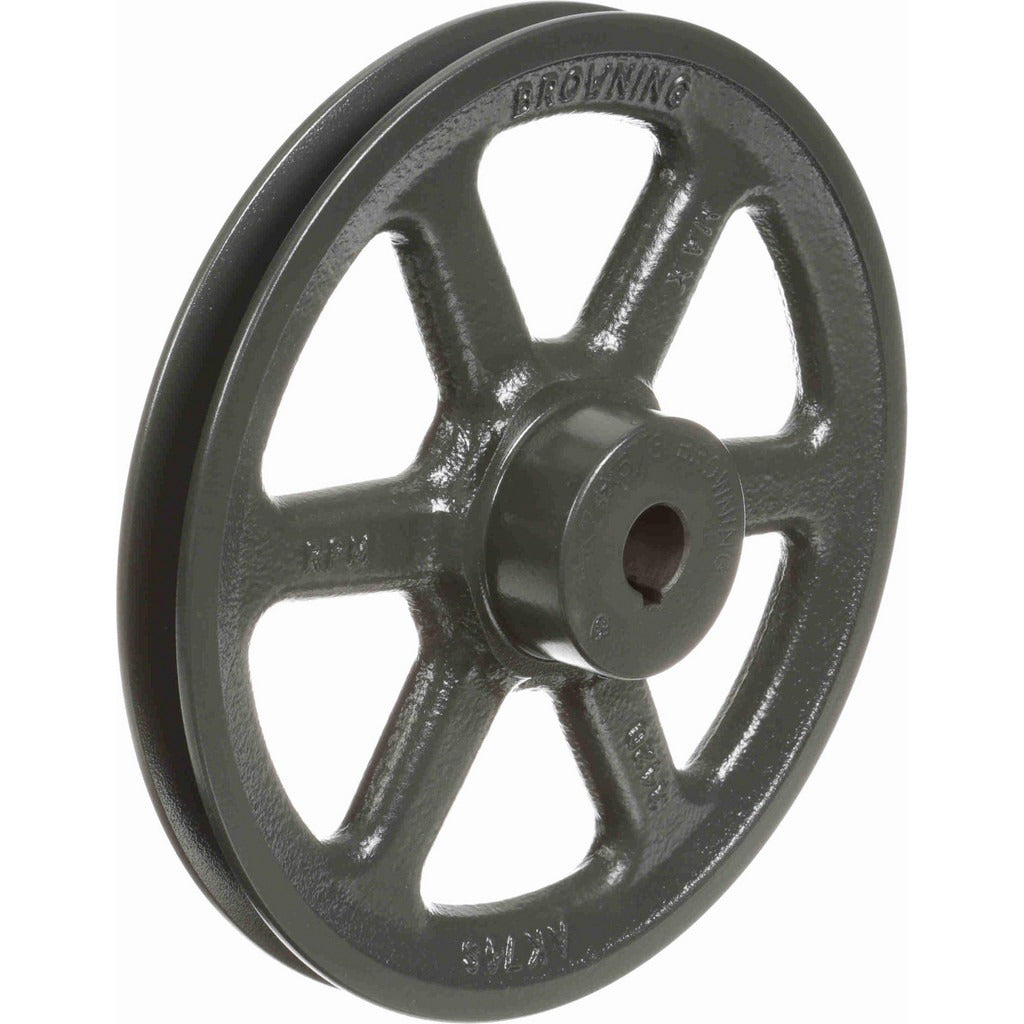

Browning 1027127 Single Groove Sheave 0.625 in Bore 7.25 in Od

Product Description

The BROWNING 1027127 is a finished bore single groove sheave designed for V-belt drive systems in HVAC, industrial, and mechanical power transmission applications. Cast iron construction provides the rigidity and wear resistance required for continuous-duty operation. The sheave features a 0.625 inch bore diameter, a 7.25 inch outside diameter, and a 0.75 inch face width. The bore is finished and ready for shaft installation without additional machining. Licensed HVAC mechanics, millwrights, and mechanical contractors install this type of sheave when sizing or replacing blower drive assemblies in air handling units, fans, and similar belt-driven equipment.

This single groove sheave is suited for residential and light commercial HVAC blower drives, exhaust fans, and general power transmission setups where a single V-belt is used. It is compatible with 3L, 4L, and A-section V-belts. The belt pitch diameter is 7.0 inches for 4L and A-section belts, and 6.66 inches for 3L-section belts. The overall length through the bore is 1-15/32 inches. This sheave fits standard 0.625 inch shafts and is a common replacement component in air handling and fan motor drive trains.

Key Features

• Finished 0.625 inch bore — no additional machining required for standard shaft fitment
• 7.25 inch outside diameter with 7.0 inch pitch diameter for 4L and A-section belts
• Compatible with 3L, 4L, and A-section V-belts for flexible drive system configuration
• Cast iron construction for durability in continuous-duty belt drive applications
• Single groove design suits single V-belt drive configurations in fans and blowers
• 0.75 inch face width fits standard belt widths for these groove profiles

Compatibility

Compatible with 3L, 4L, and A-section V-belts. Designed as a finished bore replacement sheave for single V-belt drive systems on HVAC blowers, exhaust fans, and general-purpose mechanical power transmission equipment using a 0.625 inch shaft diameter.

Installation Notes

Installation should be performed by a qualified HVAC technician or millwright. Disconnect and lock out all power to the drive system before removing or installing any sheave or belt. Ensure the shaft is clean and free of burrs before seating the sheave, and confirm proper belt tension and sheave alignment after installation to prevent premature belt or bearing wear. Follow applicable mechanical and electrical safety codes for the installation environment.
