Browning 1010404 3B54Q Qd Bushed V-belt Sheave 3 Groove

Product Description

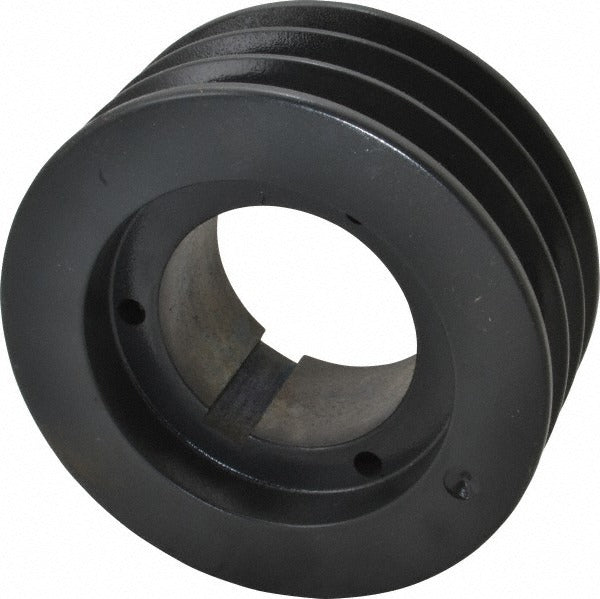

The BROWNING 1010404 is a three-groove, QD-bushed V-belt sheave designed for power transmission applications in HVAC, industrial, and mechanical drive systems. It accepts a Q1-style quick-detach bushing, which allows for fast installation and removal without specialized tooling. The outside diameter measures 5.75 inches, with a Belt Pitch A diameter of 5.0 inches and a Belt Pitch B diameter of 5.4 inches. Bore range spans 0.75 inches minimum to 2.6875 inches maximum, accommodating a wide variety of shaft sizes. At 8.25 pounds, this sheave is built for durability in continuous-duty drive configurations. Installation is typically performed by licensed HVAC technicians and millwrights.

This sheave is suited for use in belt-driven blower assemblies, fan drives, and general mechanical power transmission setups found in commercial and residential HVAC equipment as well as light industrial machinery. The three-groove design allows it to run multiple V-belts simultaneously, distributing load and improving drive reliability. It is commonly paired with A-section or B-section V-belts depending on the selected groove profile.

Key Features

• Three-groove configuration supports multi-belt drive arrangements for increased load capacity
• Q1 quick-detach bushing style enables rapid installation and removal without pressing equipment
• Outside diameter of 5.75 inches with Belt Pitch A diameter of 5.0 inches and Belt Pitch B diameter of 5.4 inches
• Wide bore range from 0.75 inches to 2.6875 inches fits a broad range of shaft sizes
• Weighs 8.25 pounds, indicating solid construction appropriate for continuous-duty service

Compatibility

Designed as an OEM-style replacement or upgrade sheave for three-groove V-belt drive systems using Q1-style quick-detach bushings with A-section or B-section V-belts.

Installation Notes

Installation should be performed by a qualified HVAC technician or millwright. Disconnect and lock out all power to the drive system before beginning work. Align the sheave carefully with mating components to minimize belt wear and vibration. Torque the Q1 bushing fasteners evenly and verify belt tension and alignment before returning the system to service.
