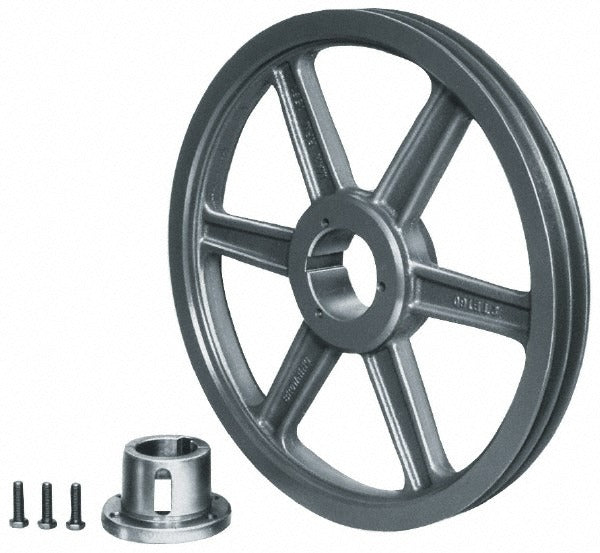

Browning 1002526 Qd Bushed V Belt Sheave 3 Groove

Product Description

The BROWNING 1002526 is a three-groove, quick-detachable (QD) bushed V-belt sheave designed for power transmission applications in HVAC, industrial, and mechanical drive systems. It accepts standard A-section and B-section V-belts and features a Q1 bushing style for straightforward installation and removal without damaging the sheave or shaft. The outside diameter measures 9.35 inches, with a belt pitch diameter of 8.6 inches for A-section belts and 9.0 inches for B-section belts. Bore range runs from 3/4 inch minimum to 2-11/16 inch maximum, covering a wide range of shaft sizes. This sheave weighs 17.8 pounds and is suited for multi-belt drive configurations requiring reliable torque transfer.

This sheave is used in commercial and industrial mechanical drive systems where multi-groove V-belt setups are required. Typical applications include blower drives, fan drives, pump drives, and compressor drives found in HVAC equipment and industrial machinery. The three-groove configuration allows simultaneous use of three V-belts, increasing the load capacity and torque transfer capability of the drive assembly. Licensed mechanical contractors, HVAC technicians, and industrial maintenance professionals are the primary installers of this component.

Key Features

• Three-groove design supports multi-belt drive configurations for higher torque loads
• Q1 bushing style enables quick installation and removal without shaft damage
• Wide bore range of 3/4 inch to 2-11/16 inch accommodates various shaft diameters
• Compatible with standard A-section and B-section V-belts
• 9.35-inch outside diameter with 8.6-inch A-section and 9.0-inch B-section belt pitch diameters

Compatibility

Designed as an OEM-style replacement or upgrade sheave for three-groove V-belt drive systems using Q1-style QD bushings and standard A-section or B-section V-belts.

Installation Notes

Installation should be performed by a qualified mechanic or HVAC technician. Disconnect and lock out all power to the drive system before removing or installing any sheave. The QD bushing design allows the sheave to be mounted and secured to the shaft using the bushing fasteners; follow standard QD bushing torque procedures per the bushing manufacturer specifications. Verify belt alignment and tension after installation before returning the system to service.
