Browning 1002468 Qd Bushed V Belt Sheave 3 Groove

Product Description

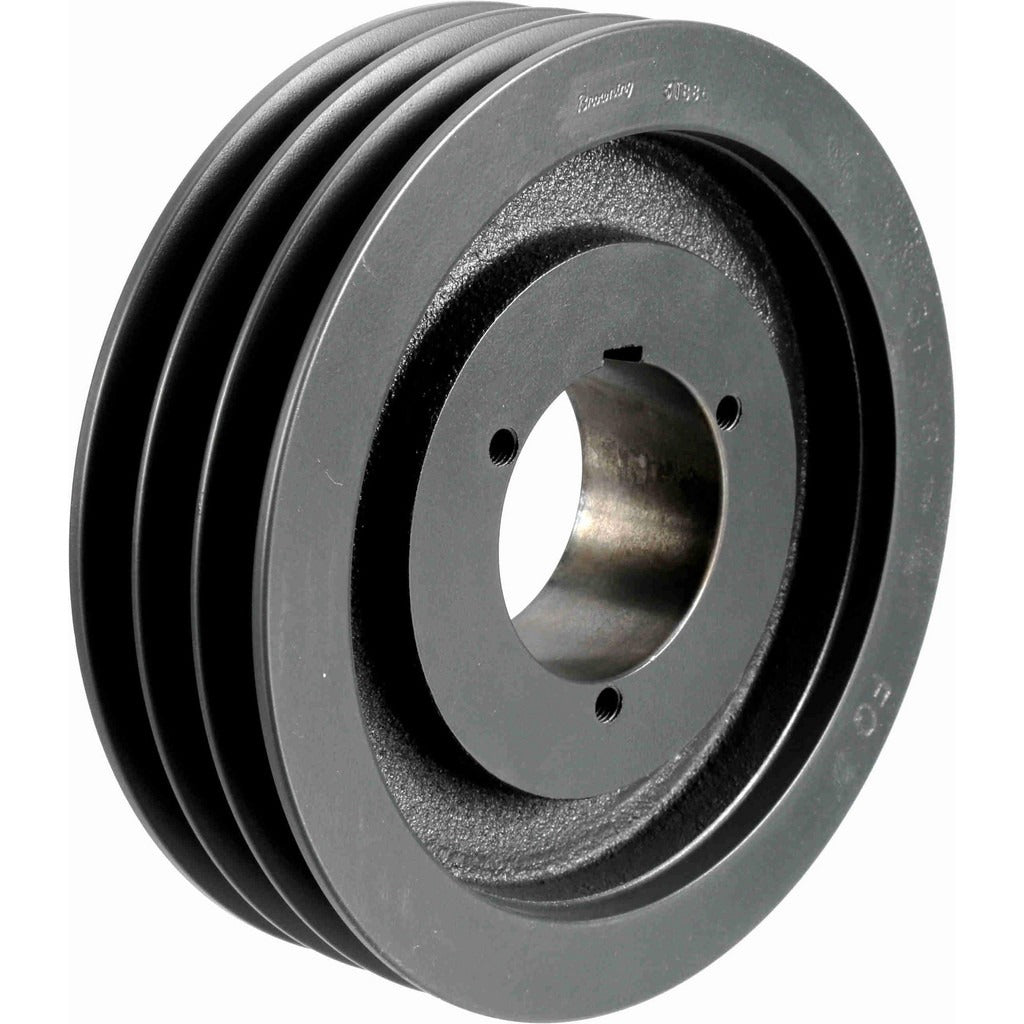

The BROWNING 1002468 is a three-groove, QD bushed V-belt sheave designed for power transmission applications in HVAC, industrial, and mechanical drive systems. It accepts a Q1-style quick-detachable bushing with a bore range of 3/4 inch to 2-11/16 inches, allowing for flexible shaft sizing without a custom fit. The outside diameter measures 8.95 inches, and the belt pitch A diameter is 8.2 inches, with a belt pitch B diameter of 8.6 inches. Constructed from iron, this sheave is built to handle the repeated loading common in belt-driven fan and blower assemblies. Licensed HVAC technicians, millwrights, and mechanical contractors are the typical installers.

This sheave is suited for residential and commercial belt-drive systems where 5V, A, or B cross-section V-belts are used. Common applications include air handling units, belt-driven blowers, cooling tower fans, and industrial drive assemblies that require a multi-groove sheave to transmit load across parallel belt runs. The three-groove configuration helps distribute drive load evenly, reducing wear on individual belts and extending service intervals in continuous-duty equipment.

Key Features

• Three-groove design accommodates 5V, A, and B belt trade sizes
• Q1 quick-detachable bushing style for simplified installation and removal
• Bore range of 3/4 inch to 2-11/16 inches covers a wide range of shaft diameters
• 8.95 inch outside diameter with 8.2 inch belt pitch A diameter and 8.6 inch belt pitch B diameter
• Iron construction provides durability under continuous belt-drive loading

Compatibility

Compatible with 5V, A, and B cross-section V-belts. Designed for use with Q1-style QD bushings. Fits shafts ranging from 3/4 inch to 2-11/16 inches in diameter.

Installation Notes

Installation should be performed by a qualified technician or millwright. Disconnect and lock out all power to the drive system before beginning sheave removal or installation. The Q1 bushing should be seated and fastened according to standard QD bushing torque procedures using appropriate hand tools. Verify belt alignment and tensioning after installation per the belt manufacturer's guidelines before returning the system to service.
