Browning 1002286 Qd Bushed V Belt Sheave 3 Groove

Product Description

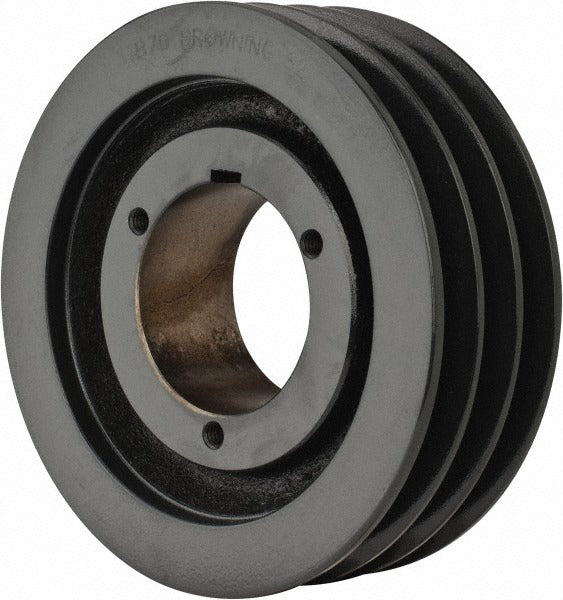

The BROWNING 1002286 is a three-groove, QD bushed V belt sheave designed for power transmission applications in HVAC, industrial, and mechanical drive systems. It accepts standard A and B section V belts and uses a Q1 bushing style for quick, secure installation and removal without special tools. The outside diameter measures 7.35 inches, the belt pitch diameter for A section belts is 6.6 inches, and the belt pitch diameter for B section belts is 7.0 inches. Bore range spans 3/4 inch minimum to 2-11/16 inch maximum, giving installers flexibility across a wide range of shaft sizes. Total unit weight is 13.9 pounds.

This sheave is suited for use in belt-driven blower and fan assemblies commonly found in commercial and residential HVAC air handling units, industrial ventilation systems, and general mechanical drive equipment. The three-groove configuration supports multi-belt drive arrangements that require higher torque capacity or redundancy. It is typically installed by HVAC technicians, millwrights, and mechanical contractors during new equipment setup or drive system replacement service.

Key Features

• Three-groove design supports multi-belt A or B section V belt drives
• Q1 bushing style allows tool-free sheave installation and removal
• Outside diameter of 7.35 inches with A pitch diameter of 6.6 inches and B pitch diameter of 7.0 inches
• Bore range from 3/4 inch to 2-11/16 inch accommodates a wide variety of shaft sizes
• UNSPSC Code 31171804 for procurement classification

Compatibility

Designed as an OEM-style replacement sheave for three-groove QD bushed V belt drive systems using A or B section belts with a Q1 bushing style.

Installation Notes

Installation should be performed by a qualified HVAC technician or millwright. Disconnect and lock out all electrical power to the drive system before beginning work. Ensure the mating shaft diameter falls within the 3/4 inch to 2-11/16 inch bore range before selecting a bushing, and torque all bushing fasteners according to the bushing manufacturer specifications. Verify belt tension and sheave alignment after installation per the drive manufacturer guidelines before returning the system to service.
