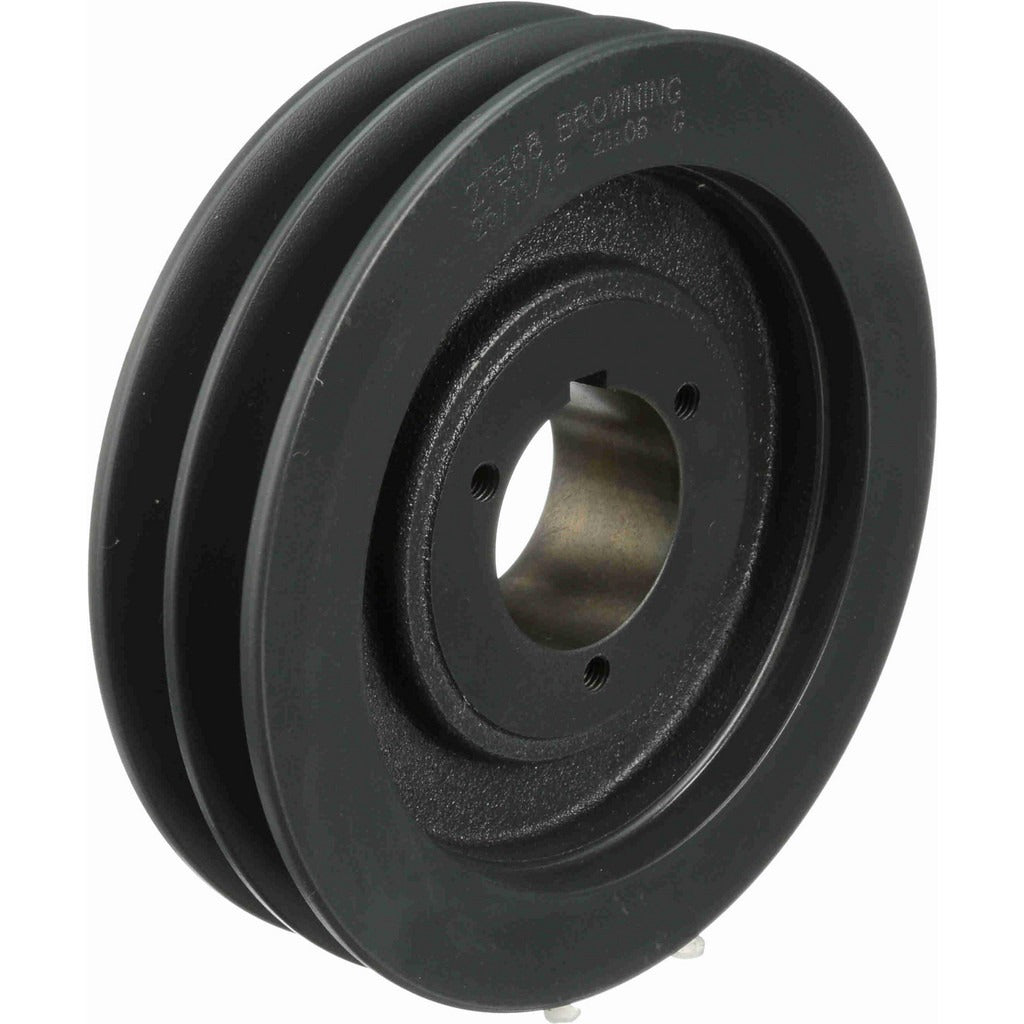

Browning 1002211 2-groove Qd V-belt Sheave 7.15 in Od

Product Description

The BROWNING 1002211 is a 2-groove, QD (Quick Detachable) bushed V-belt sheave designed for power transmission applications in HVAC, industrial, and mechanical drive systems. It accepts P1-style QD bushings and accommodates bore diameters from 0.5 inches to 1.75 inches, making it adaptable to a range of shaft sizes without retooling. The outside diameter measures 7.15 inches, with a belt pitch A diameter of 6.4 inches and a belt pitch B diameter of 6.8 inches. Cast from iron for durability under continuous belt loading, this sheave is sized for A, B, and 5V belt trade sizes. HVAC service techs and industrial maintenance mechanics routinely specify this sheave for fan, blower, and pump drive assemblies.

This sheave is suited for both residential and light commercial HVAC blower drive systems, as well as general industrial belt-drive machinery requiring a 2-groove configuration. The QD bushing system allows for fast installation and removal on motor or driven-shaft assemblies. Compatible belt trade sizes include A, B, and 5V profiles, giving installers flexibility when sourcing matched belt sets. The P1 bushing style is a common QD platform, widely stocked across supply houses.

Key Features

• 2-groove design supports dual V-belt configurations for increased torque capacity
• QD bushed with P1 bushing style for tool-free bore adjustment and quick shaft removal
• Bore range of 0.5 inches to 1.75 inches fits a wide variety of motor and driven shafts
• Outside diameter of 7.15 inches with 6.4-inch belt pitch A diameter and 6.8-inch belt pitch B diameter
• Compatible with A, B, and 5V belt trade sizes
• Cast iron construction provides strength and resistance to belt-load fatigue

Compatibility

Designed for use with A, B, and 5V trade-size V-belts. Accepts P1-style QD bushings. Bore diameter range of 0.5 inches to 1.75 inches makes this sheave compatible with standard motor shaft sizes commonly found in HVAC blower and fan drive assemblies.

Installation Notes

Installation should be performed by a qualified mechanic or HVAC technician. Disconnect and lock out electrical power to the drive motor before handling the sheave or belts. The QD bushing must be properly seated and fastened per the bushing manufacturer torque sequence before applying belt tension. Verify belt alignment with a straightedge after installation to prevent premature belt and bearing wear.
