Browning 1002096 Qd V Belt Sheave 2 Groove 6.75in Od

Product Description

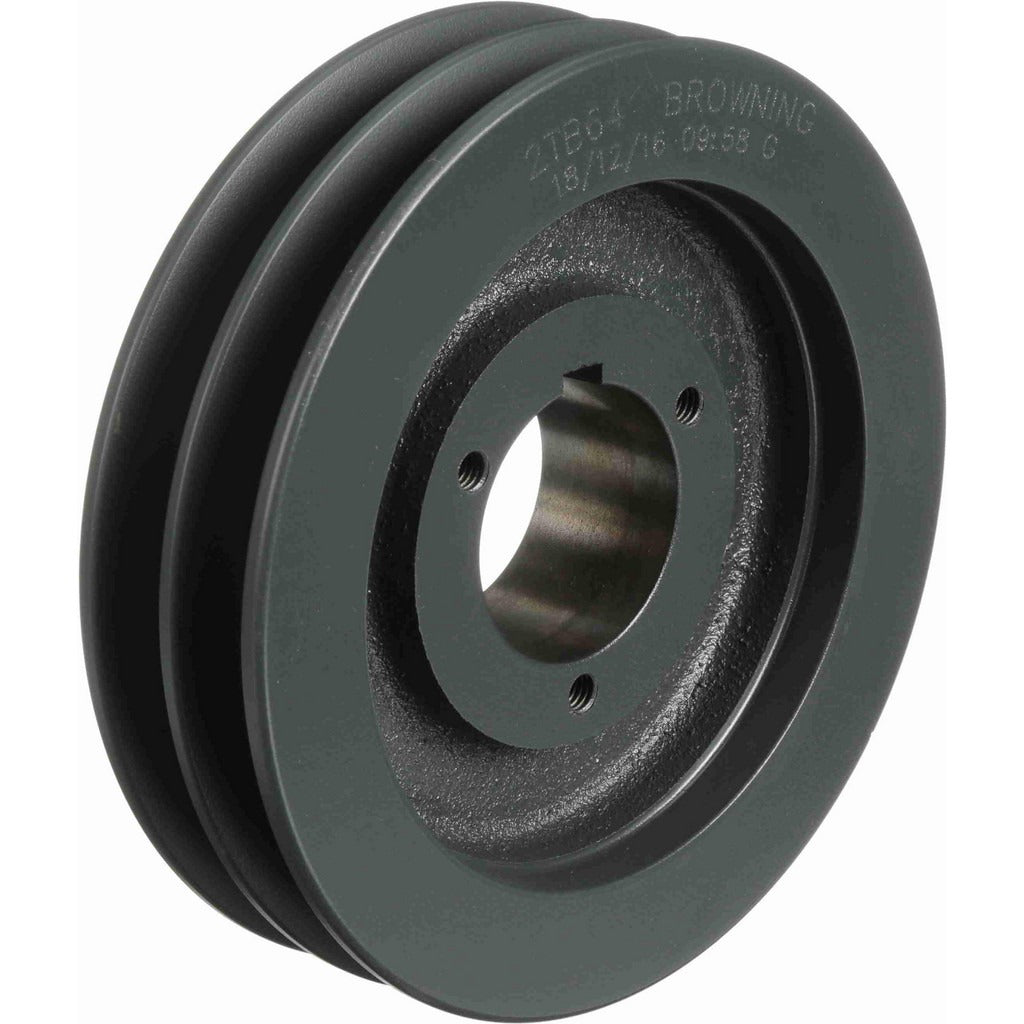

The BROWNING 1002096 is a two-groove, quick-detachable (QD) bushed V belt sheave designed for industrial and mechanical drive applications. It accepts a P1-style QD bushing and accommodates bore diameters from 0.5 inches to 1.75 inches, making it adaptable to a range of shaft sizes without requiring a dedicated bore. The sheave has a 6.75-inch outside diameter and is cast from iron for durability under continuous belt-drive loads. It is compatible with A, B, and 5V belt trade sizes, with a belt pitch A diameter of 6.0 inches and a belt pitch B diameter of 6.4 inches. HVAC, industrial refrigeration, and mechanical systems technicians install this type of sheave on blower and fan drive assemblies.

This sheave is suited for two-belt drive configurations found in commercial and light industrial equipment. Common applications include belt-driven blower assemblies, cooling tower fans, pump drives, and similar rotating equipment where adjustable bore sizing and QD bushing convenience are needed. The P1 bushing style allows the sheave to be mounted and removed without special tooling, which supports routine maintenance and belt replacement on the job. No specific OEM model compatibility is stated in available product data.

Key Features

• Two-groove design supports dual-belt drive configurations for higher torque transmission
• QD bushing system with P1-style bushing for tool-free shaft mounting and removal
• Wide bore range from 0.5 inches to 1.75 inches accommodates varied shaft sizes
• Compatible with A, B, and 5V belt trade sizes for application flexibility
• Iron construction provides strength and resistance to wear under continuous operation
• 6.75-inch outside diameter suits standard blower and fan drive configurations

Compatibility

Designed as an OEM-style replacement or direct-fit sheave for two-groove QD-bushed V belt drive assemblies using A, B, or 5V belt trade sizes with P1-style bushings.

Installation Notes

Installation should be performed by a qualified millwright, HVAC technician, or mechanical systems professional. Disconnect and lock out all power to the drive system before removing the existing sheave or bushing. Ensure the shaft diameter falls within the 0.5-inch to 1.75-inch bore range before selecting a bushing. Follow the bushing manufacturer's torque sequence and tighten fasteners evenly; verify belt tension and sheave alignment with a straightedge or laser alignment tool after installation.
