Browning 1001684 Qd Bushed V Belt Sheave 3 Groove

Product Description

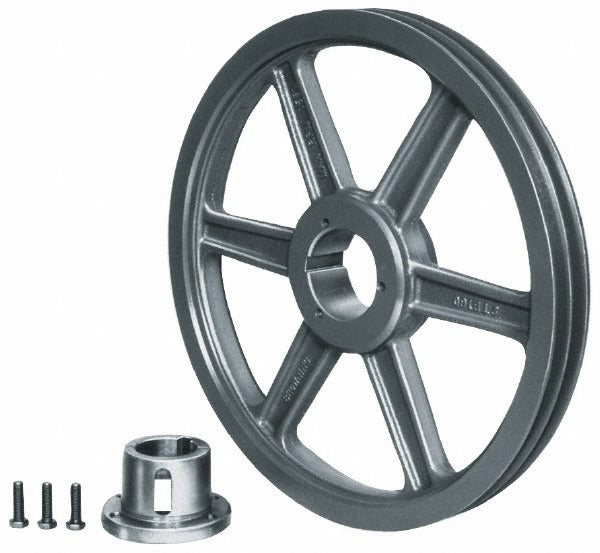

The BROWNING 1001684 is a three-groove, QD bushed V belt sheave designed for power transmission applications in HVAC, industrial fan, pump, and blower drives. It accepts a P1-style Quick Detachable bushing, which allows fast installation and removal without special tools. The sheave has a 5.35-inch outside diameter, supports bore diameters from 0.5 inches up to 1.75 inches, and carries an A-section belt pitch diameter of 4.6 inches and a B-section belt pitch diameter of 5.0 inches. At 7.4 pounds, it is a solid, durable component suited for continuous-duty drive systems. HVAC mechanics and millwrights are the typical installers.

This sheave fits belt-driven systems where a three-groove drive is required to transmit load across multiple V belts simultaneously. Common applications include rooftop unit blower assemblies, centrifugal fans, commercial air handlers, and pump drives. The QD bushing system makes it practical for field installations where shaft alignment and sheave swaps need to be completed quickly. The bore range accommodates a variety of shaft diameters, making this sheave adaptable across multiple drive configurations without requiring a custom bore.

Key Features

• Three-groove design distributes load across multiple V belts for higher torque capacity
• QD bushed with P1 bushing style for tool-friendly installation and removal
• 5.35-inch outside diameter suits compact drive arrangements
• Bore range of 0.5 inches to 1.75 inches accommodates a wide variety of shaft sizes
• Compatible with both A-section and B-section V belts
• Weighs 7.4 pounds for a robust, durable build

Compatibility

Designed for use with P1-style QD bushings and A-section or B-section V belts. Suitable as an OEM-style replacement or new-installation sheave in belt-driven HVAC, fan, pump, and blower drive systems requiring a three-groove configuration.

Installation Notes

Installation should be performed by a qualified HVAC technician or millwright. De-energize and lock out the drive system before removing or installing any sheave. Verify shaft diameter falls within the 0.5-inch to 1.75-inch bore range before ordering a bushing. Torque the QD bushing fasteners per the bushing manufacturer specifications, and check belt tension and sheave alignment after installation before returning the system to service.
