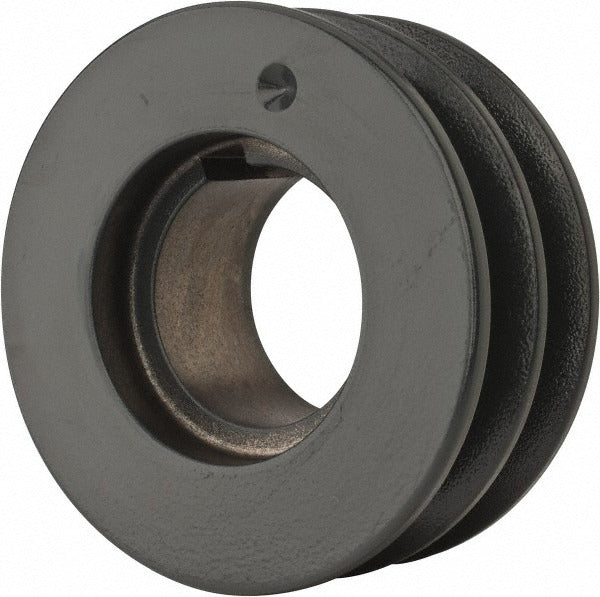

Browning 1001312 Qd Bushed V-belt Sheave 2 Groove

Product Description

The BROWNING 1001312 is a two-groove, QD bushed V-belt sheave designed for power transmission applications in HVAC, industrial, and mechanical drive systems. It features a 4.15-inch outside diameter and accepts bore sizes from 0.5 inches up to 1.75 inches through a P1 bushing style, giving technicians flexibility when matching it to a wide range of shaft sizes. The sheave carries a belt pitch A diameter of 3.4 inches and a belt pitch B diameter of 3.8 inches, making it compatible with both A-section and B-section V-belts. At 3.1 pounds, it is a compact, durable component suited for fan drives, blower assemblies, and motor-to-load drive configurations.

This sheave is commonly used in rooftop units, air handlers, belt-drive blower assemblies, and light industrial machinery where a two-groove V-belt drive is required. The QD bushing design allows for quick installation and removal without special tooling, making it a practical choice for service technicians performing scheduled maintenance or drive replacements. It is sold individually and is appropriate for both new installations and direct drive replacements.

Key Features

• Two-groove design supports dual V-belt drive configurations for balanced load distribution
• QD P1 bushing style enables tool-free bushing removal and simplified shaft fitment
• Bore diameter range of 0.5 to 1.75 inches accommodates a wide variety of motor and blower shaft sizes
• Belt pitch A diameter of 3.4 inches and belt pitch B diameter of 3.8 inches for A-section and B-section V-belt compatibility
• 4.15-inch outside diameter suits compact drive arrangements in residential and light commercial equipment
• Lightweight at 3.1 pounds for easy single-technician handling during installation

Compatibility

Designed as an OEM-style replacement or new-installation sheave for belt-drive blower and fan assemblies using A-section or B-section V-belts with a P1 QD bushing. No specific model compatibility data was provided by the manufacturer for this SKU.

Installation Notes

Installation should be performed by a qualified technician. Disconnect and lock out all power to the drive system before removing or installing the sheave. The QD bushing must be matched to the shaft diameter and properly torqued per the bushing manufacturer specifications before belt tensioning. After installation, verify belt tension and sheave alignment with a straightedge or laser alignment tool before returning the system to service.
