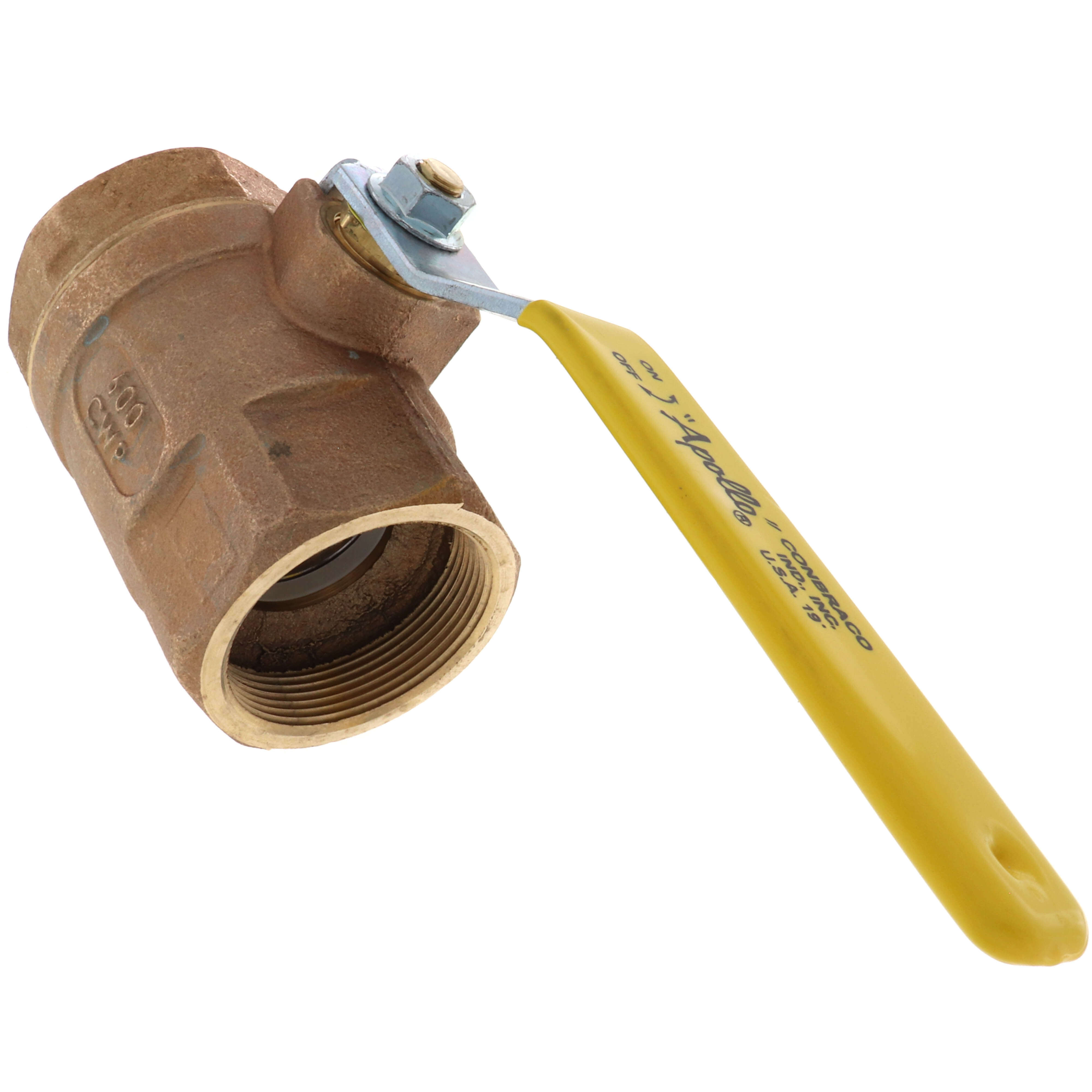

Apollo Valves 7010801 70-100 Series 2 in. PTFE Bronze Standard Port FNPT 600 Ball Valve

Product Description

The Apollo Valves 7010801 is a part of the widely used 70-100 Series, featuring a 2-inch PTFE bronze standard port with FNPT connection. This ball valve is perfect for commercial and industrial applications.

• Heavy-duty construction and reinforced seats
• Adjustable stem packing gland
• Blow-out proof stem design

Product Highlights

This ball valve, manufactured in Apollo's South Carolina plants, offers reliable performance with heavy-duty materials, PTFE seats, and adjustable stem packing. It is factory tested for maximum pressure and temperature ratings.

Product Information

Standard Information

• Application: Commercial, Industrial
• Made in: USA

Technical Specifications

• Maximum Pressure: 600 psi CWP, 150 psi SWP
• Maximum Temperature: 500 degrees Fahrenheit
• Vacuum Service: 29 inches Hg
• Connection Type: FNPT x FNPT
• Ball Material: Chrome-Plated Brass
• Seal Material: PTFE
• Seat Material: RPTFE
• Stem Material: Brass
• Operator Type: Zinc-Plated Steel with Vinyl Grip Lever Handle
• Flow Co-Efficient: 108 Cv
• Standards/Certifications: ISO 9001-2008, MSS SP-110, CSA B51 CRN OC10908.5C
