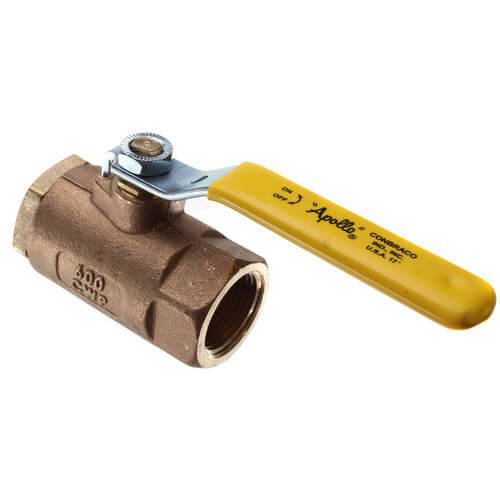

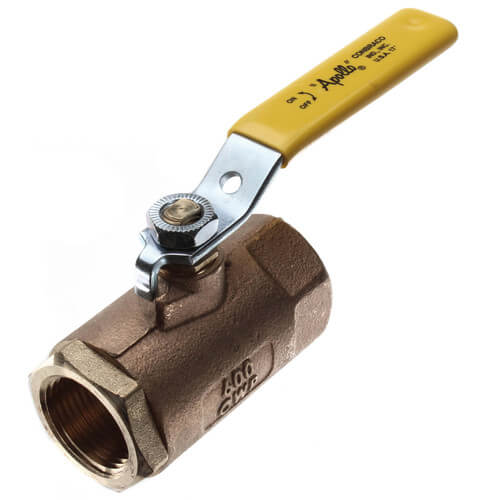

Apollo Valves 7010501 70-100 Series 1 in. PTFE Bronze Standard Port FNPT 600# Ball Valve

Product Description

The Apollo Valves model 7010501, part of the 70-100 series, is a 1-inch PTFE bronze ball valve known for its reliability and durability in various industrial and commercial applications. Manufactured in South Carolina, this valve features female NPT connections and a standard port design.

• Reinforced PTFE seats
• Adjustable packing gland
• Heavy-duty construction

Product Highlights

This 2-piece standard port ball valve is designed for maximum pressure up to 600 psi and temperatures up to 500 degrees Fahrenheit. Suitable for plumbing and other industrial uses, it is constructed from premium materials, ensuring long-lasting performance.

Product Information

Standard Information

• Application: Commercial, Industrial, Plumbing
• Model: 70-100
• Connection Method: Threaded

Technical Specifications

• MPN: 7010501
• Size: 1 inch
• Material: Bronze
• Pressure Rating: 600 psi CWP, 150 psi WSP
• Temperature Rating: 500 degrees Fahrenheit
• Connection Type: FNPT x FNPT
• Seal Material: PTFE
• Seat Material: RPTFE
• Flow Co-Efficient: 43 Cv
• Handle Style: Lever
• Valve Construction: 2-piece
• Standards/Certifications: ISO 9001-2008, MSS SP-110, CRN OC10908.5C
