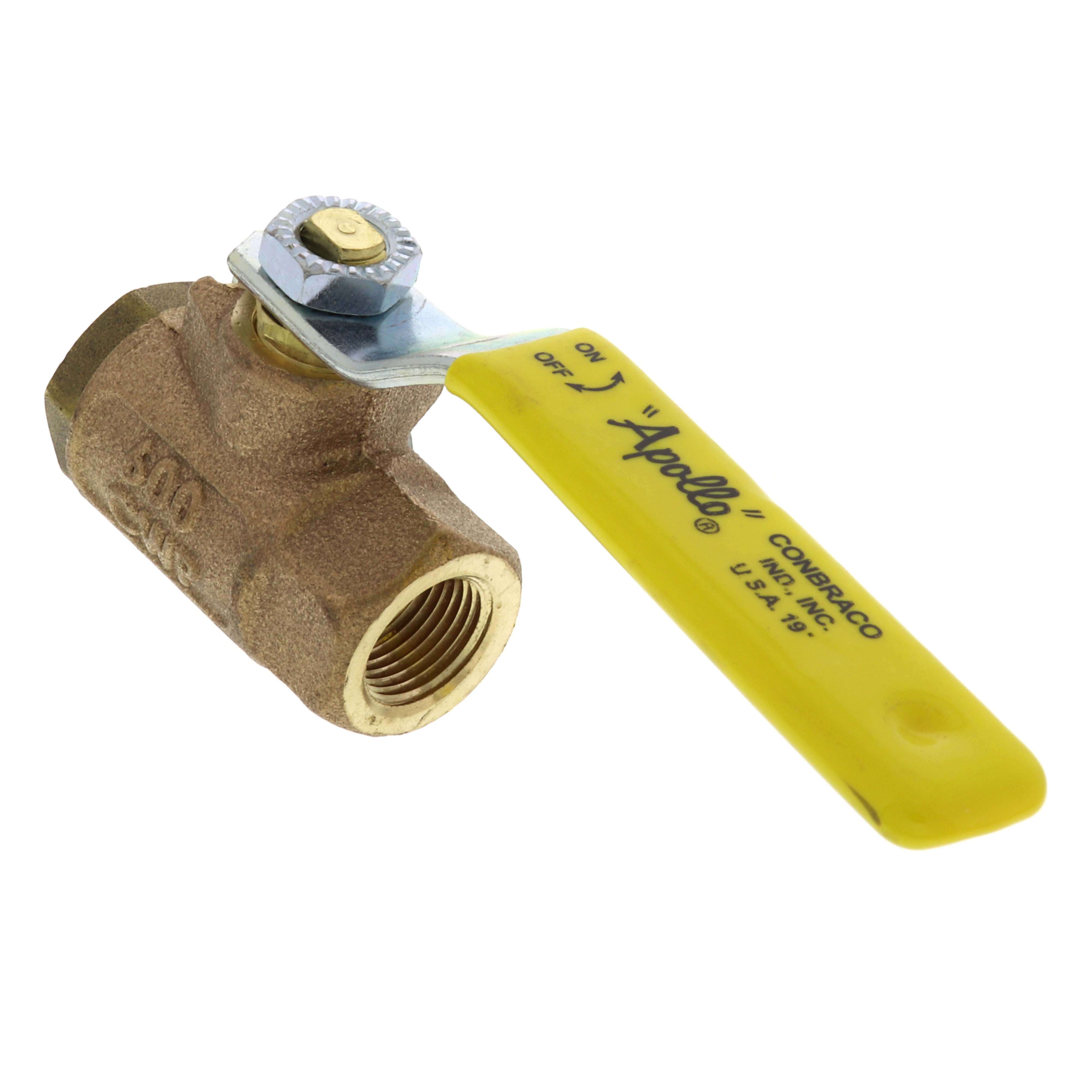

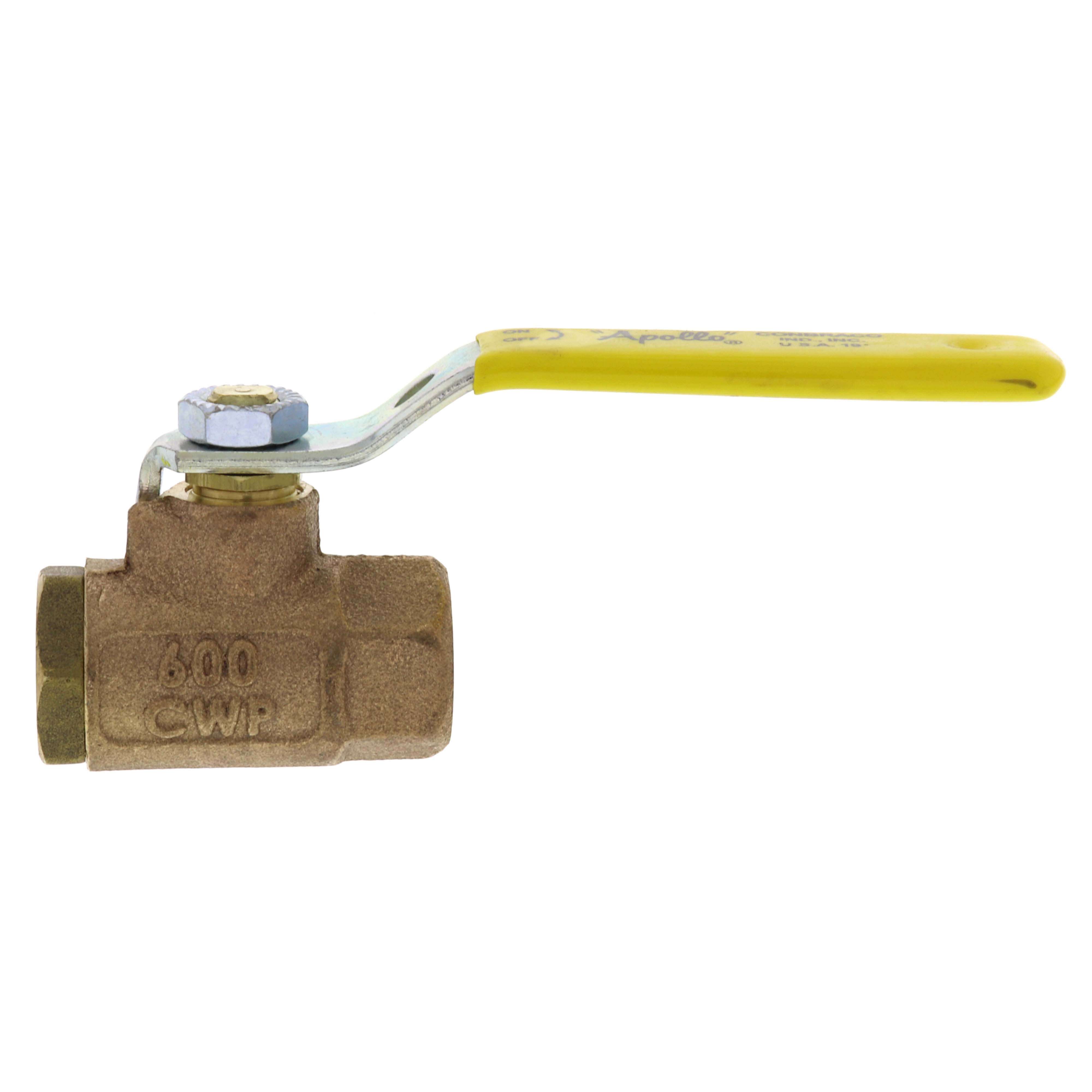

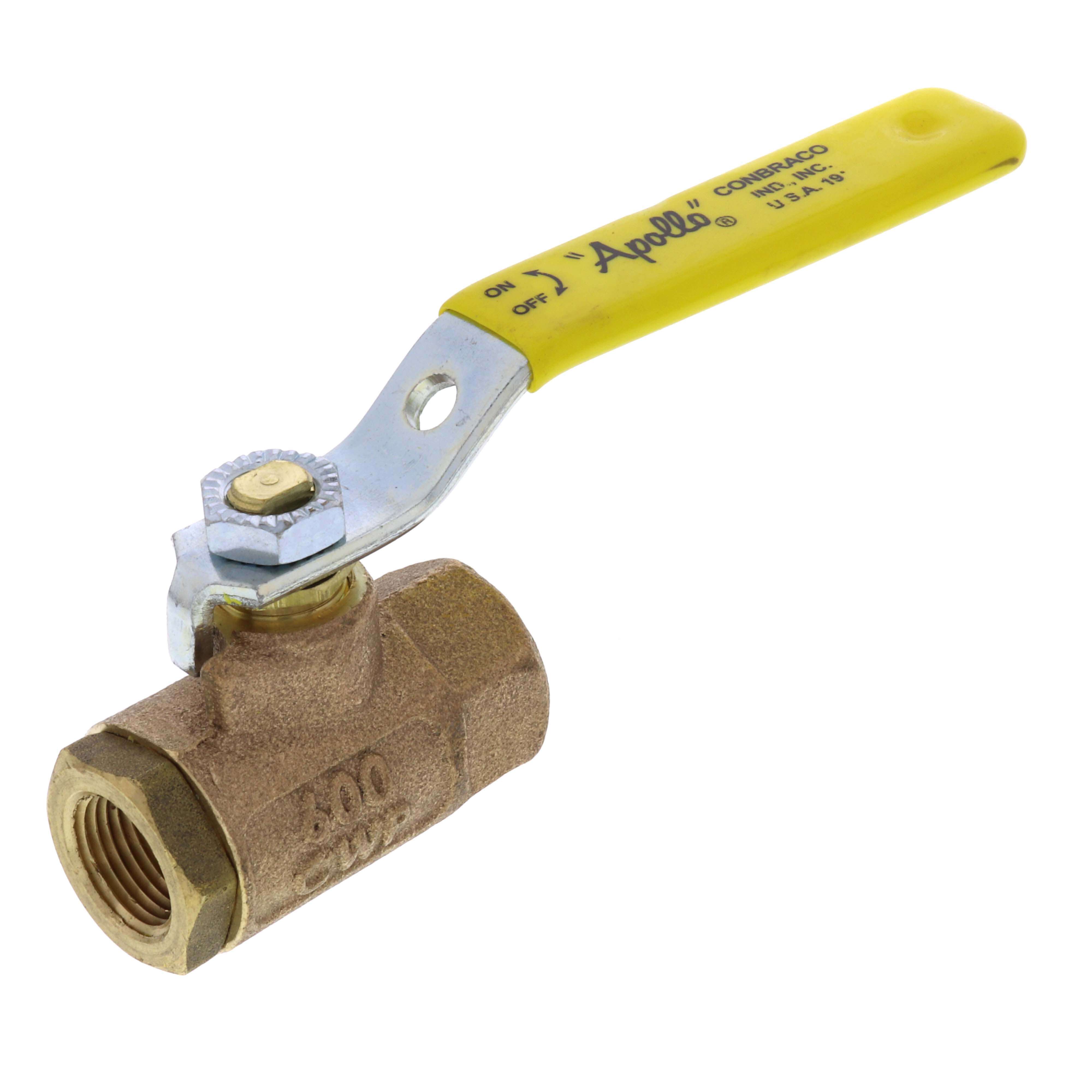

Apollo Valves 7010201 70-100 Series 3/8 in. FNPT Standard Port Ball Valve

Product Description

The Apollo Valves 7010201 is a 70-100 Series ball valve designed for reliable performance in plumbing applications. This 3/8 inch standard port valve features female NPT connections and is made from heavy-duty cast bronze. Manufactured in the USA, this valve meets various standards ensuring quality and dependability.

• Maximum Operating Pressure: 600 psi
• Maximum Operating Temperature: 500°F
• 100% Factory Tested for performance

Product Highlights

This valve is suitable for residential and commercial applications, providing effective flow control for water and steam systems.

Product Information

Standard Information

• Brand: Apollo Valves
• MPN: 7010201

Technical Specifications

• Connection Size: 3/8 inch
• Connection Type: FNPT
• Body Material: Cast Bronze
• Ball Material: Chrome-Plated Brass
• Seal Material: PTFE
• Seat Material: RPTFE
• Flow Coefficient (Cv): 7.2
• Overall Length: 2.06 inches
• Standards Compliance: MSS SP-110
