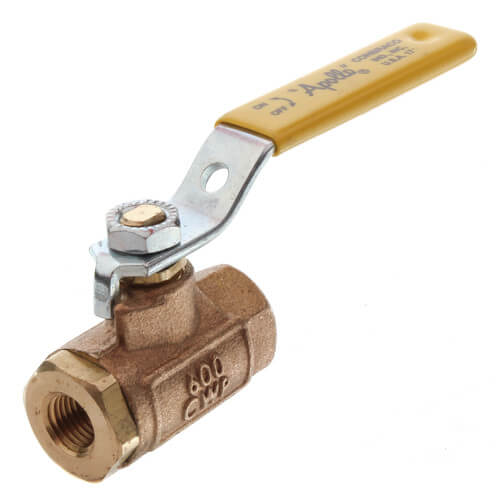

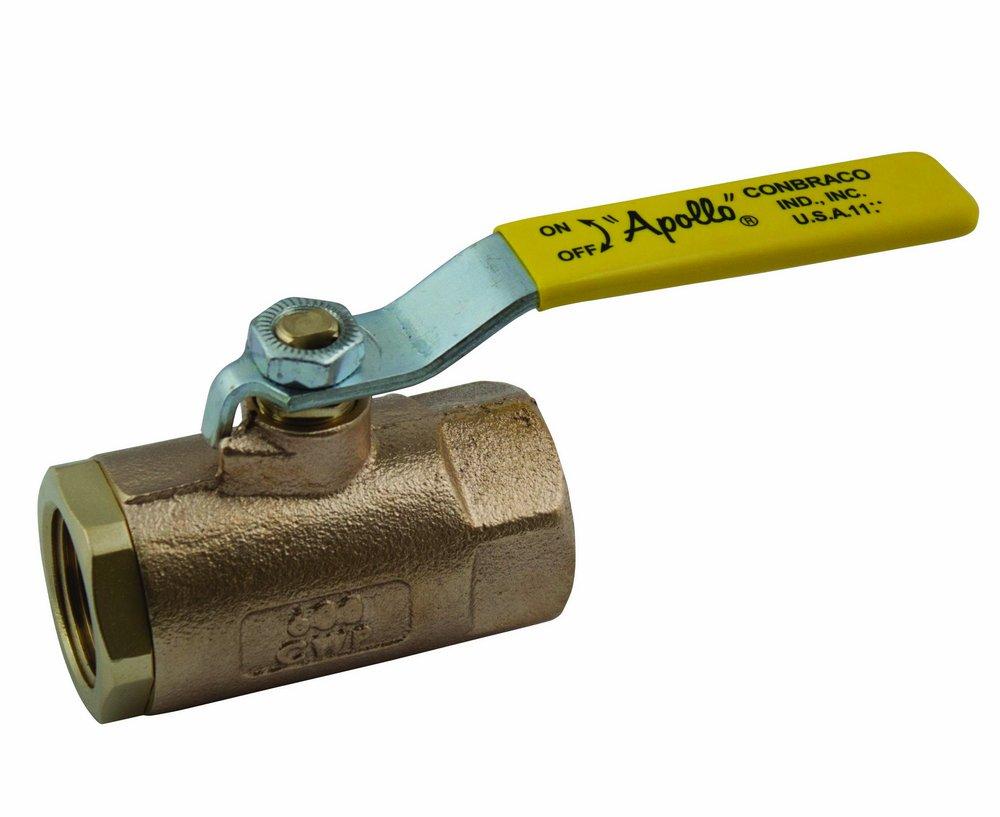

Apollo Valves 7010101 70-100 Series 1/4 in. PTFE Bronze Standard Port FNPT 600# Ball Valve

Product Description

The Apollo Valves 7010101 is part of the 70-100 series, which features a 1/4 inch PTFE bronze standard port ball valve. This model is designed to handle a maximum pressure of 600 psi for cold water and 150 psi for steam applications. The ball valve includes female NPT connections and is constructed from durable materials for reliable performance.

• Maximum Operating Pressure: 600 psi for cold water.
• Constructed for saturated steam applications with a rating of 150 psi.
• Adjustable packing gland to enhance service life.

Product Highlights

Built for commercial and industrial applications, this ball valve is ideal for water, oil, and gas services. The chrome-plated brass ball ensures strong flow and durability, while the PTFE seat material provides superior sealing characteristics.

Product Information

Standard Information

• Material: Bronze
• Connection Size: 1/4 inch

Technical Specifications

• Body Material: Cast Bronze
• Ball Material: Chrome Plated Brass
• Pressure Rating: 600 psi Cold Water, 150 psi Steam
• Temperature Rating: Maximum 500°F
• Flow Coefficient (Cv): 8.4
• Overall Length: 2.06 inches
• Body Style: 2-Piece
• Control Type: Manually Operated
