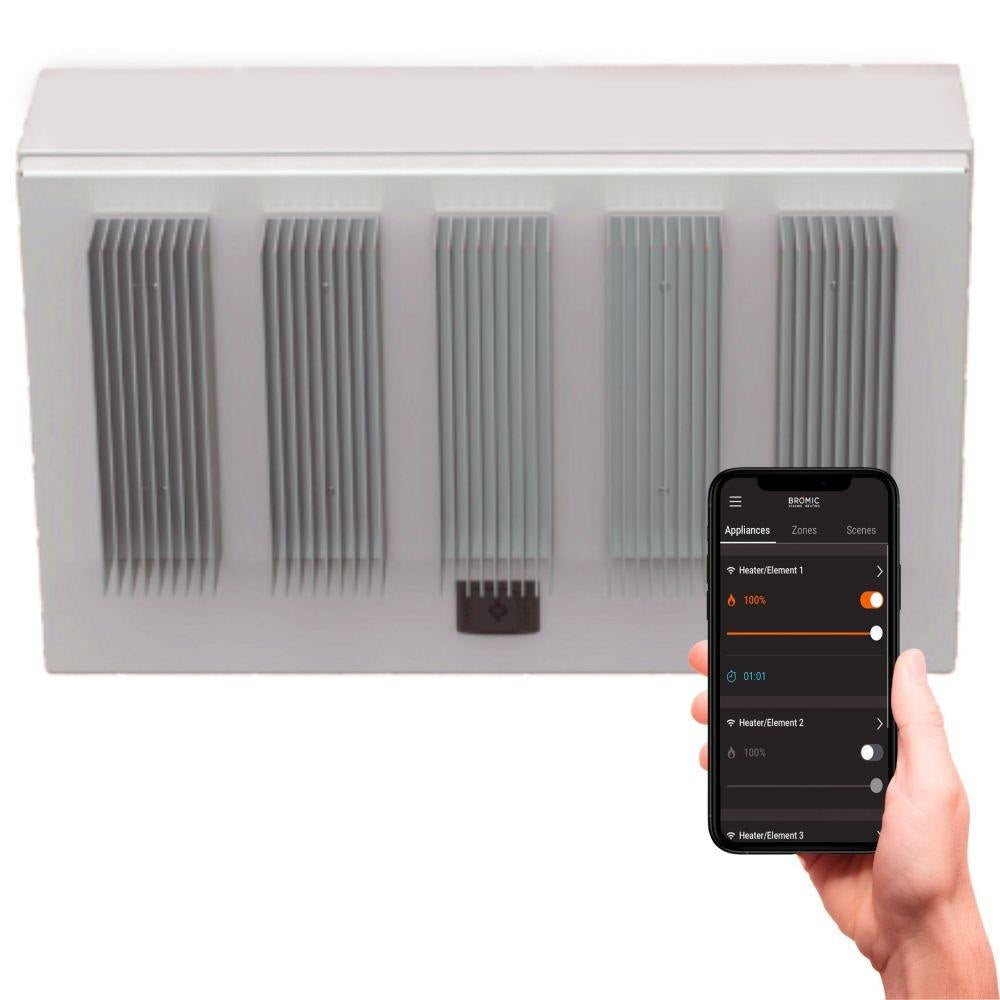

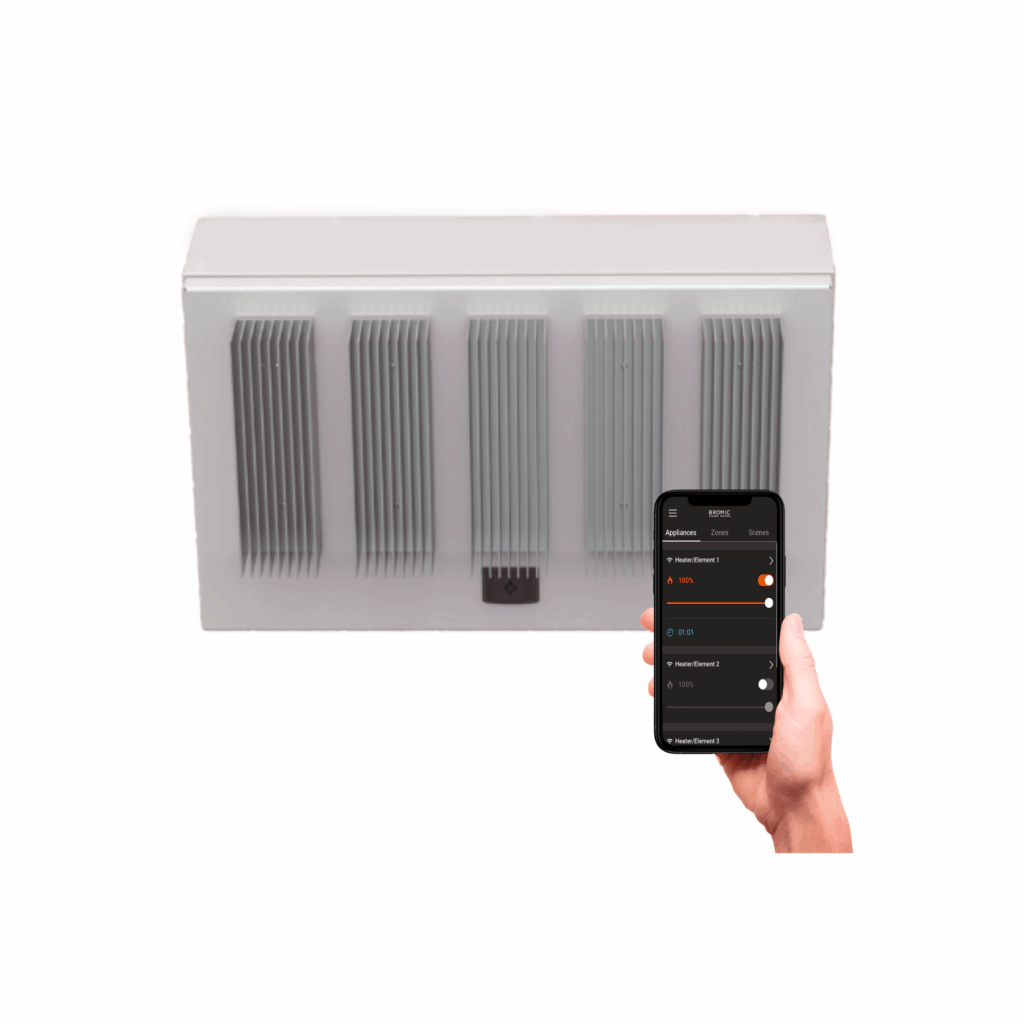

Bromic Heating BH3130063 Affinity Smart-Heat Dimmer Control 5 Channel 3 Phase 208V-277V 30KW (6KW/Channel)

Product Description

The Bromic Heating BH3130063 Affinity Smart-Heat Dimmer Control allows custom comfort with incremental output management. Suitable for Bromic Platinum and Tungsten Collection electric heaters, this 3-Phase, 5 Channel Affinity Dimmer controls up to 6000W of power per channel. Using the Bromic Heating app, instantly and precisely adjust heat output down to 1% increments and other unique scenes and settings for ideal outdoor experiences.

• Gas or Electric Compatible
• WiFi & Bluetooth Enabled
• New Design

Product Highlights

The Affinity Dimmer series streamlines installation and elevates custom comfort. It allows for incremental adjustment of heat output for precise control.

Product Information

Standard Information

• Brand: Bromic Heating
• Manufacturer Part Number: BH3130063

Technical Specifications

• Model Number: BH3130063
• Width: 19.7"
• Height: 13.4"
• Depth: 10"
• Phase: 3 Phase
• Voltage: 208 - 277 Volts
• Wattage: 6,000 Watts
• Features: Bluetooth, WiFi Enabled
• Product Line: Bromic Heating Affinity
• Type: Add-On Accessories
• Controls: Remote Controls
• NUMBER OF CHANNELS: 5 CH
• VOLTAGE-MAX CAPACITY PER CHANNEL: 3N-220/380V – 6kW 3N-230/400V – 6kW 3N-240/415V – 6kW 3N-277/480V – 6kW 3- 120/208V – 6kW
• OPERATING TEMPERATURE RANGE: -4°F to +86°F
• NON-OPERATING TEMPERATURE RANGE: -22°F to +158°F
• PROTECTION RATING: IP54
• WIFI CONNECTIVITY: 2.4GHZ
• APPROVAL CERTIFICATION: UL 60730-1, CAN/CSA E60730-1
• HEATER COMPATIBILITY: Platinum Electric & Platinum Gas Tungsten Electric & Tungsten Gas
• Manufacturer: Bromic Heating
• Series: Affinity
• Compatible with: Platinum & Tungsten ELECTRIC Heaters Only
• Number of Channels: 5
• Max Capacity Voltage: 208-277v - 6kw Each Channel = 30kw Total
• Internet / WIFI Required: Yes
