Bromic Heating BH3130051 Affinity Smart-Heat On/Off Controllers 6kW 1 CH

Product Description

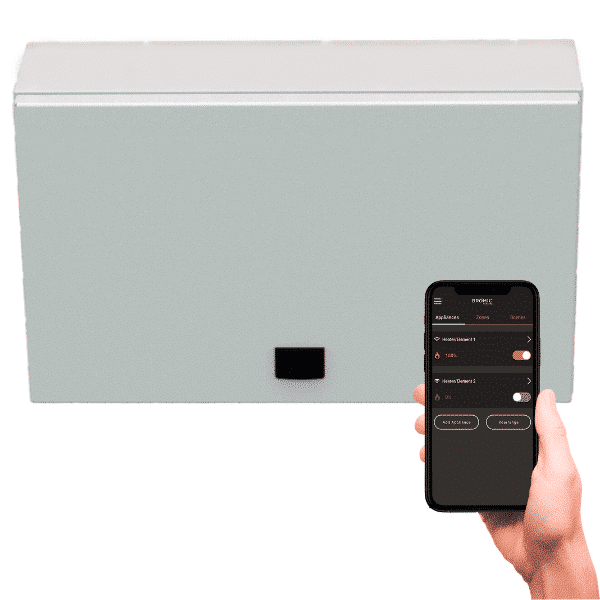

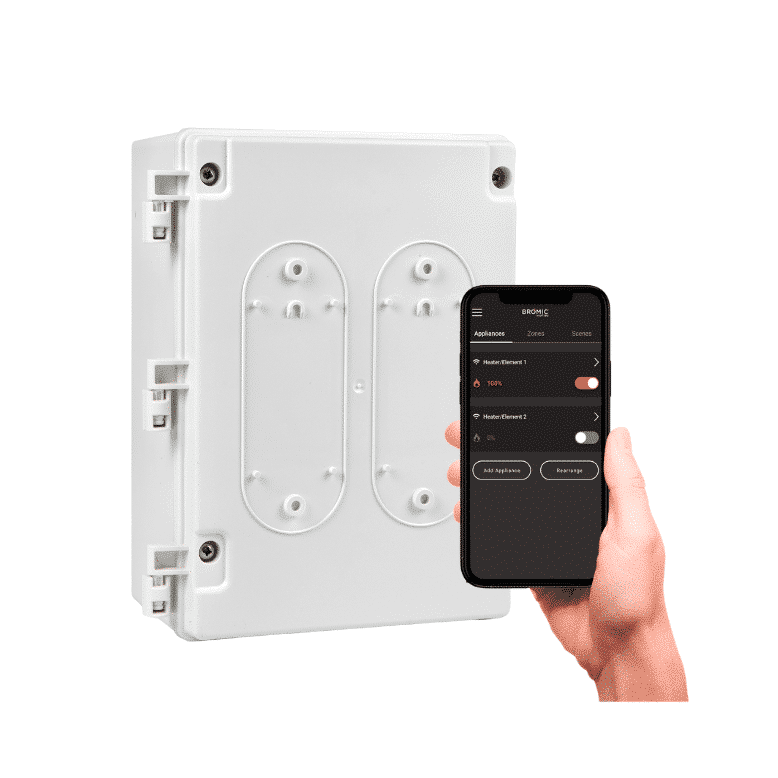

The Bromic Heating BH3130051 Affinity Smart-Heat On/Off Controllers streamline installation and elevate custom comfort with management through the Bromic Heating App. Suitable for Platinum and Tungsten Collection gas or electric outdoor heaters, the On/Off series offers straightforward management. Compatible up to 277V, the controller comes in channel options of 1, 2, or 5, with each channel input controlling up to 6000W of power or 10 gas heaters.

• Gas or Electric Compatible
• More Channels Than Ever
• WiFi & Bluetooth Enabled

Product Highlights

Control heat output with On/Off functionality. Manage multiple sites from one app. Connect with home automation or building management systems.

Product Information

Standard Information

• Brand: Bromic Heating
• Manufacturer Part Number: BH3130051

Technical Specifications

• MODEL: AFFINITY ON/OFF
• PART NUMBER: BH3130051
• NUMBER OF CHANNELS: 1 CH
• VOLTAGE-MAX CAPACITY PER CHANNEL: 100-127V – 1kW 208-277V – 6kW
• OPERATING TEMPERATURE RANGE: -4°F to +86°F
• NON-OPERATING TEMPERATURE RANGE: -22°F to +158°F
• PROTECTION RATING: IP54
• WIFI CONNECTIVITY: 2.4GHZ
• APPROVAL CERTIFICATION: UL 60730-1, CAN/CSA E60730-1
• HEATER COMPATIBILITY: Platinum Electric & Tungsten Electric
• Display Type: LED or OLED
• Indoor/Outdoor: Indoor & Outdoor
• Fuel Type: Electric
• Style: Contemporary
• Power: 6000 W
• Mounting: Ceiling
