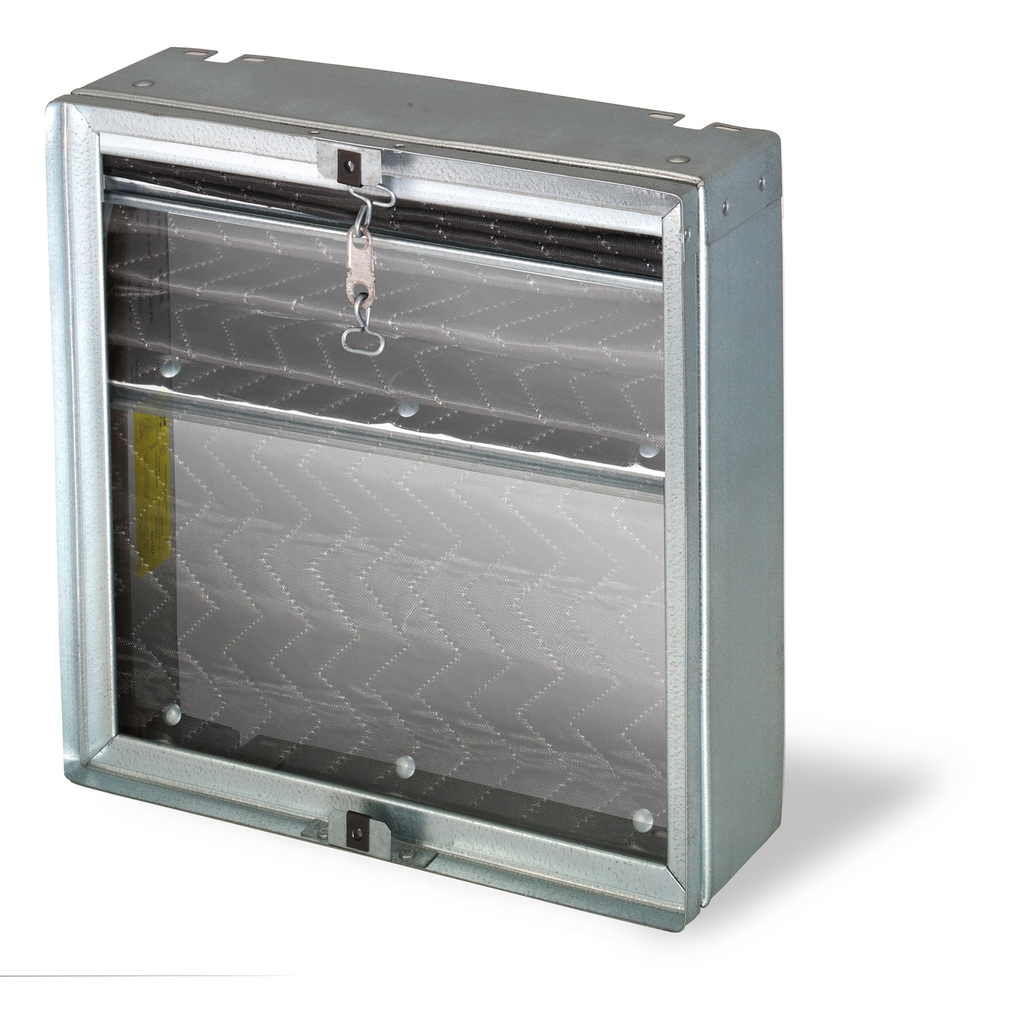

Broan RD1 Ceiling Radiation/Fire Damper UL Rated 3-Hour for 100/150/200/250/300 CFM Models

Product Description

The Broan RD1 Ceiling Radiation/Fire Damper is a UL rated, crucial safety component in ventilation systems, crafted to hinder the spread of fire in buildings. It is compatible with 100, 150, 200, 250, and 300 CFM ceiling mount models, making it a versatile option for various building types.

• Constructed with a galvanized steel frame and equipped with a high-temperature, non-asbestos, reinforced fiber thermal fabric.
• Features a 212°F fusible link that automatically triggers sealing of the damper under high temperatures.
• Approved for use in 1, 2, and 3 hour rated floor-ceiling and roof-ceiling constructions.

Product Highlights

This fire damper supports safety in residential and commercial settings by providing a critical barrier against fire and heat transmission.

Product Information

Standard Information

• Brand: Broan-NuTone
• Model: RD1

Technical Specifications

• Width: 12.5 inches
• Height: 3-5/8 inches
• Length: 12.5 inches
• Weight: 3.3 pounds
• Material: Steel
• Color: Galvanized
• Country of Origin: USA
