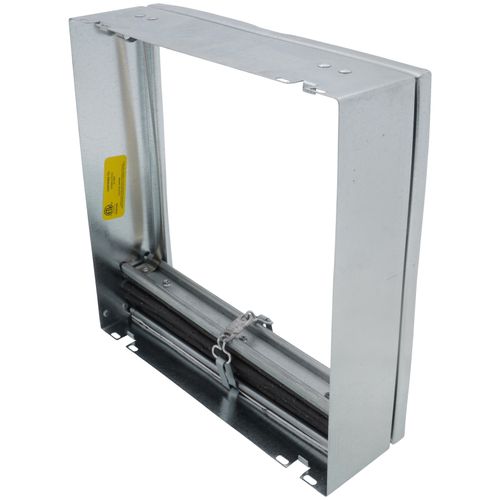

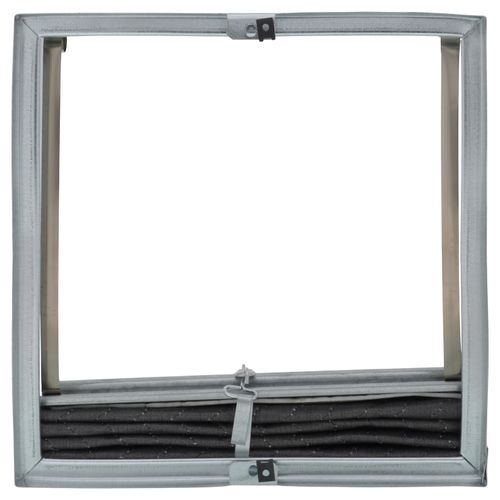

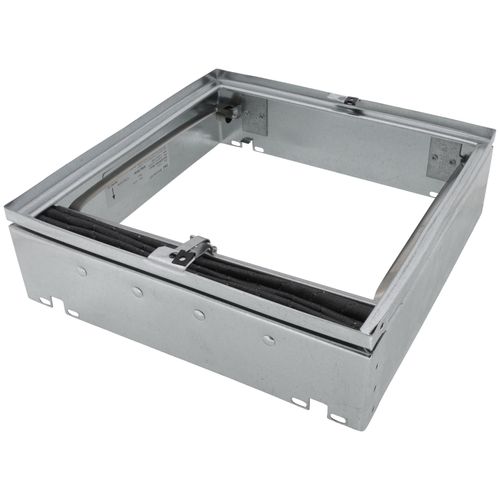

Broan-Nutone RD1 UL Rated 3-Hour Ceiling Radiation/Fire Damper for 100/150/200/250/300 CFM Ceiling Mount Models

Product Description

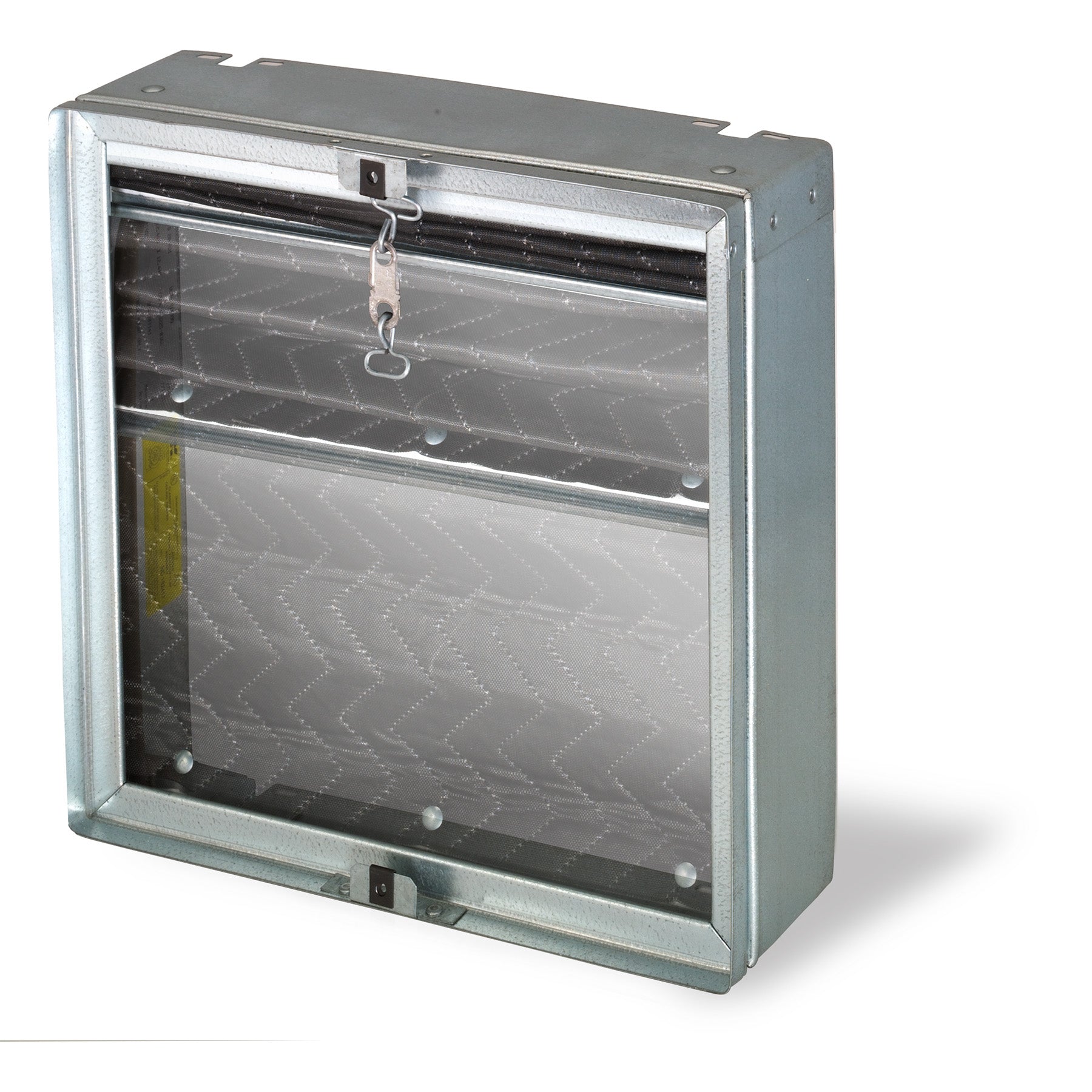

The Broan-NuTone RD1 Radiation Damper prevents the rapid spread of fire. It is designed for exhaust fans installed in multi-family homes with fire-rated ceilings, and must be protected by radiation dampers. When the air temperature exceeds 212.F, the fusible link melts, triggering the thermal fabric to automatically close across the damper. Airflow is interrupted by a flame and heat barrier.

• For use in 1, 2 and 3 hour rated floor-ceiling and roof-ceiling constructions
• Galvanized steel frame
• High temperature, non-asbestos, reinforced fiber thermal fabric

Product Highlights

The Broan-NuTone RD1 is UL Classified (UL-555C) and meets or exceeds NFPA-90A. Compatible with Broan LoSone Select L100, L150, L200, L250, & L300 Series.

Product Information

Standard Information

• Brand: BROAN-NUTONE
• Manufacturer Part Number: RD1
• Country of Origin: USA

Technical Specifications

• Brand: Broan-NuTone
• Material: Steel
• Width: 12.5 in
• Height: 3-5/8 Inch
• Length: 12-1/2 Inch
• Catalog Number: RD1
• UPC: 026715124749
• GTIN: 00026715124749
• Item Type: Damper
• Product Type: Ceiling Radiation/Fire Damper
• Size: 12-1/2" x 12-1/2"
• Used With: L100 L100MG L150 L150MG L200 L200MG L250MG L250 L300MG L300 L300KMG
