Broan-Nutone QTXE110150DCL QT DC 110-150 CFM (6in)

Product Description

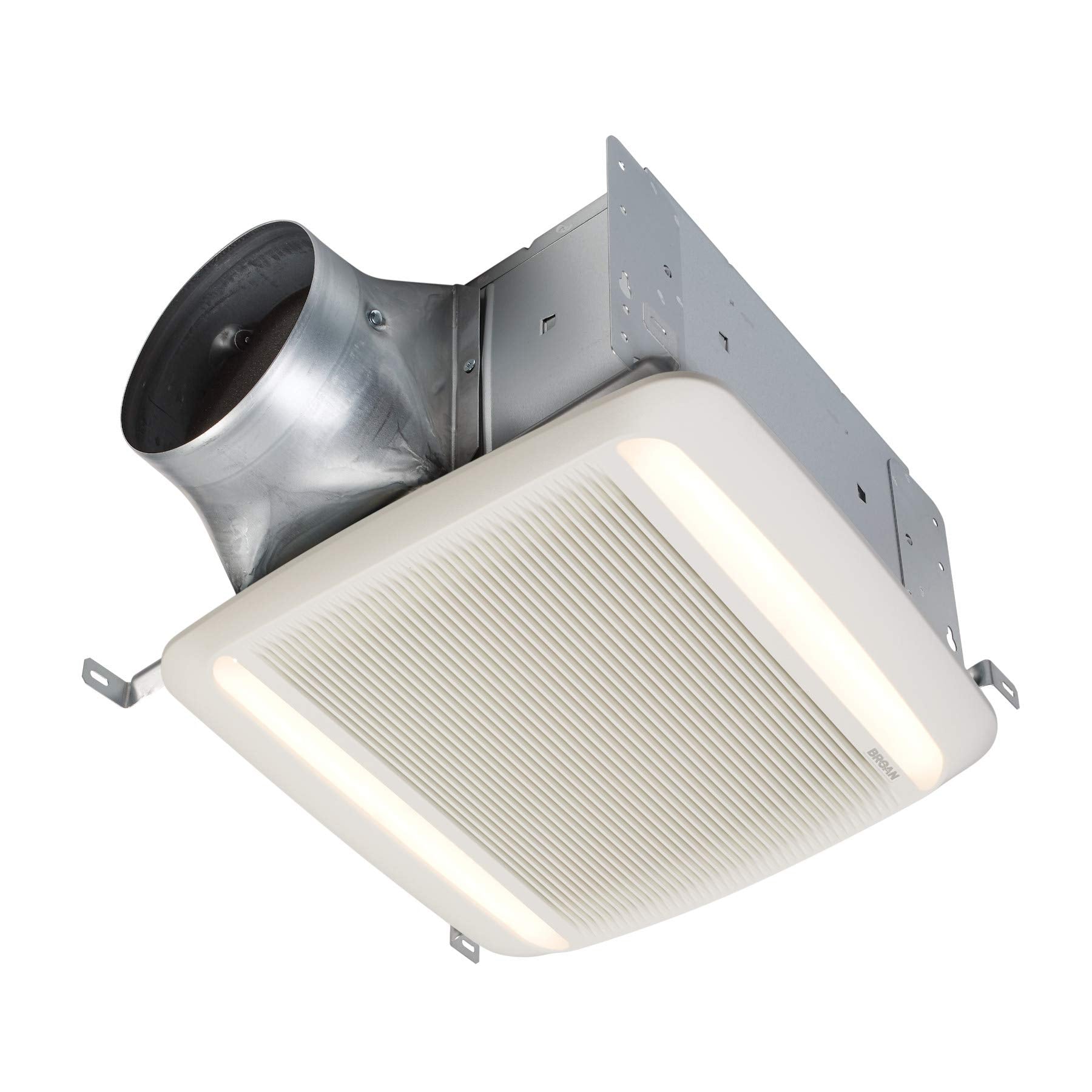

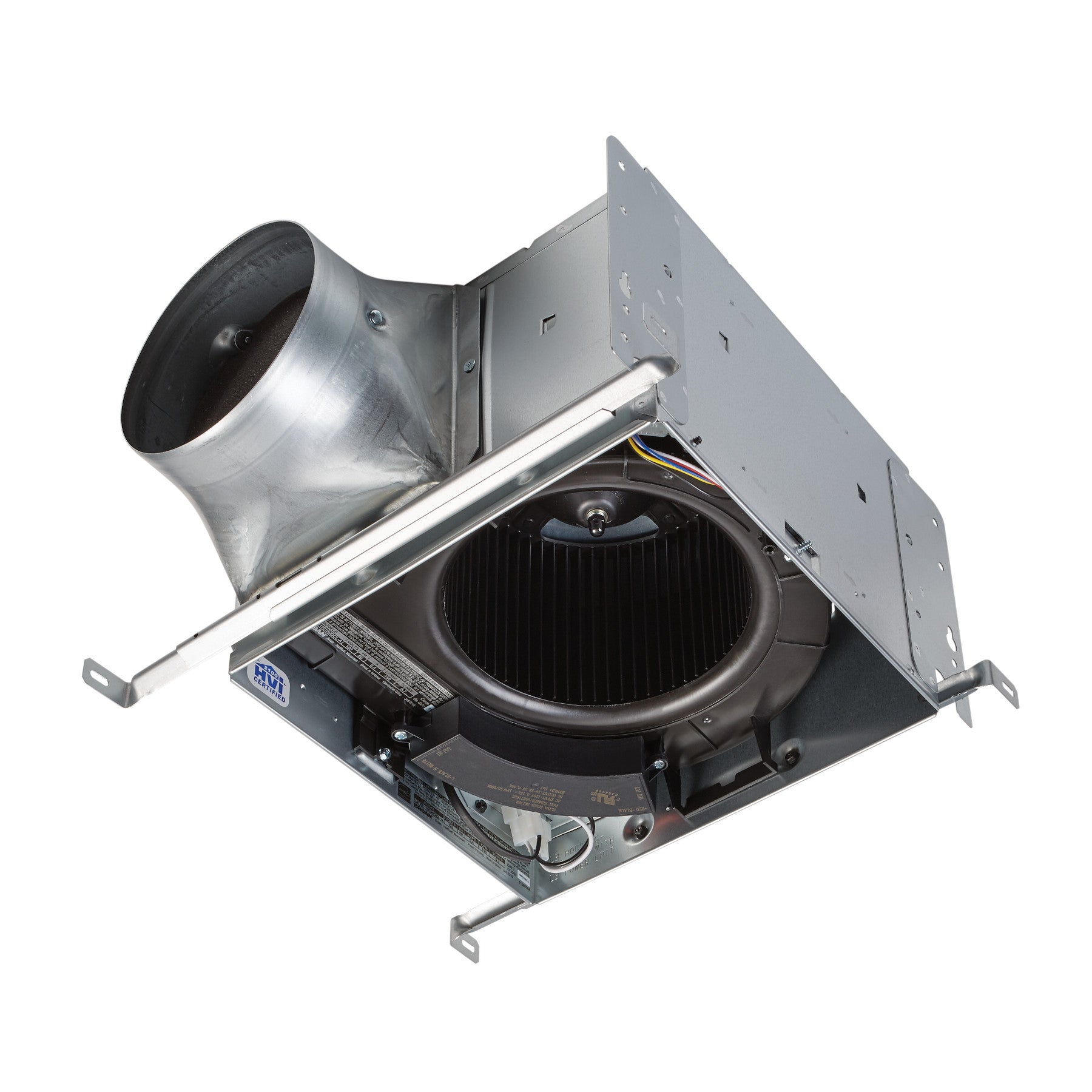

Broan-NuTone QTXE110150DCL is a QT DC series ceiling ventilation fan with selectable airflow and an integrated LED light. The unit offers selectable CFM settings of 110, 130, or 150, a DC motor engineered for continuous operation, and ultra-quiet sound levels (≤0.3–0.7 sones). It operates at 120 V/0.5 A, includes a 6-inch round duct connector, galvanized steel housing, and a dimmable 1,179-lumen LED (3000 K).

• Selectable airflow: 110 / 130 / 150 CFM with sound levels <0.3, 0.4, 0.7 sones
• Integrated dimmable LED: 1,179 lumens, 3000 K
• DC motor engineered for continuous operation; ENERGY STAR certified and UL listed for ceiling use over bathtubs/showers when connected to a GFCI-protected circuit

Product Highlights

Selectable 110–150 CFM, integrated dimmable 1,179-lumen LED, DC motor, 6-inch round duct connector, galvanized housing, ENERGY STAR

Product Information

Standard Information

• Brand: BROAN-NUTONE
• Manufacturer Part Number: QTXE110150DCL
• Country of Origin: China

Technical Specifications

• Brand: Broan-NuTone
• Manufacturer Part Number: QTXE110150DCL
• Series: QT DC

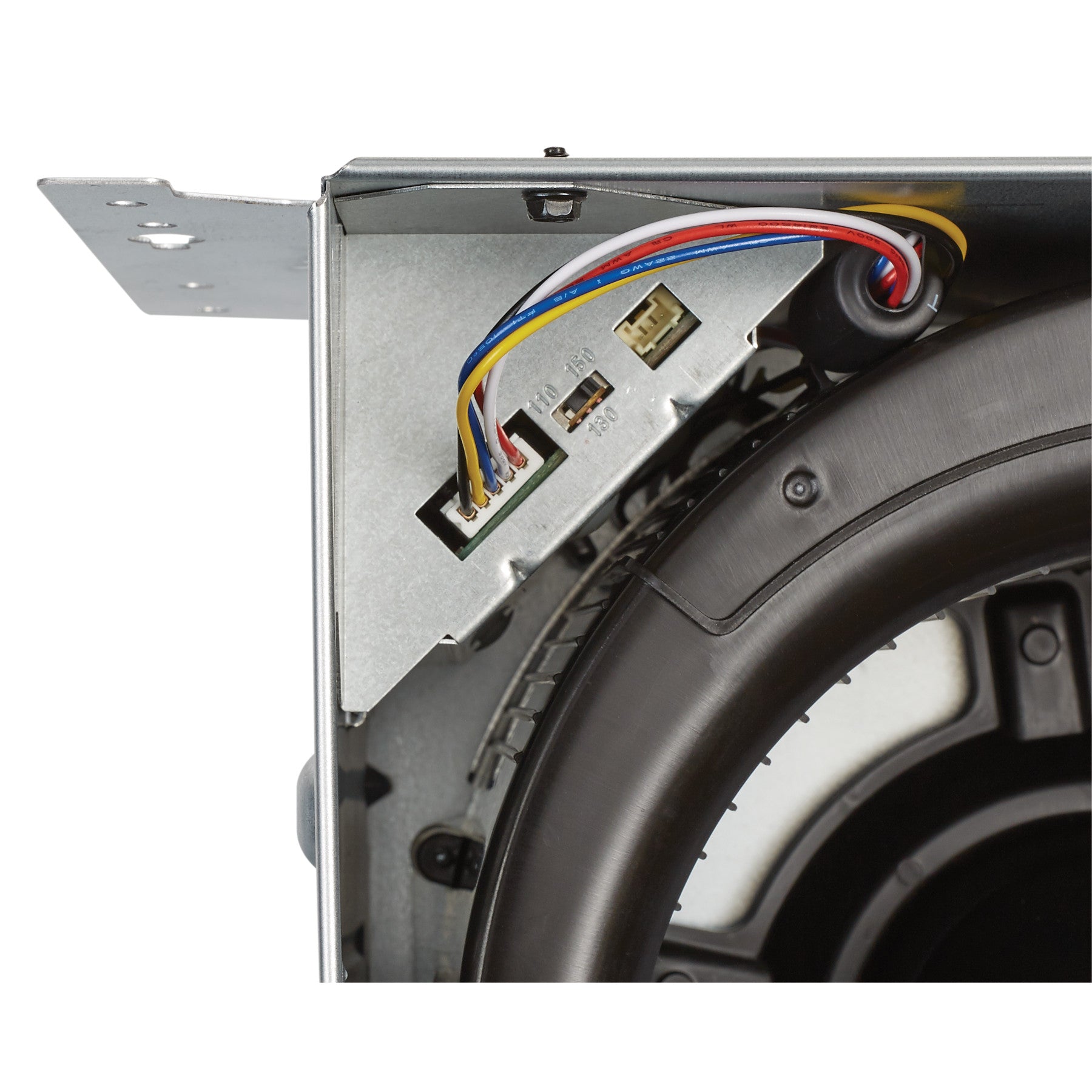

• Selectable CFM: 110 / 130 / 150
• Sound Level: <0.3, 0.4, 0.7 sones (0.4 sones at 150 CFM)
• Motor Type: DC motor (engineered for continuous operation)
• Input Voltage: 120 Volt
• Rated Current: 0.5 Amp
• Duct Connector: 6 inch round
• Mounting Type: Ceiling
• Housing Material: Galvanized steel

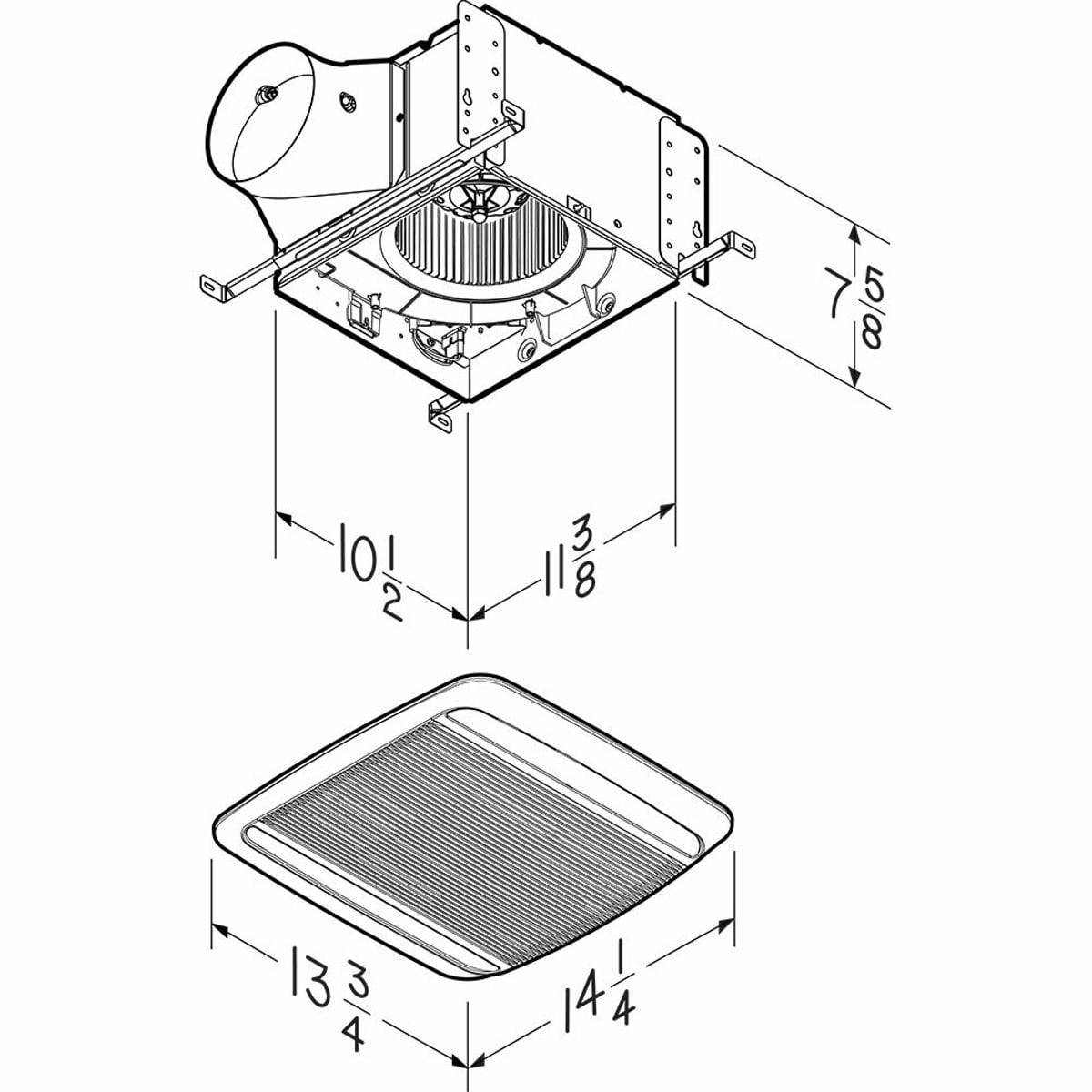

• Dimensions (W x H x L): 14.25 in x 7.63 in x 10.50 in
• Weight: 11.88 lb
• Light Type: Integrated dimmable LED module
• Lumens: 1,179 lumen
• Color Temperature: 3000 K
• Certifications: ENERGY STAR certified
• UL Listing: UL listed for ceiling mount over bathtubs and showers when connected to a GFCI-protected branch circuit
• Included Accessories: Hanger bars; spacer for engineered I joists; integrated LED module
• Country of Origin: China
