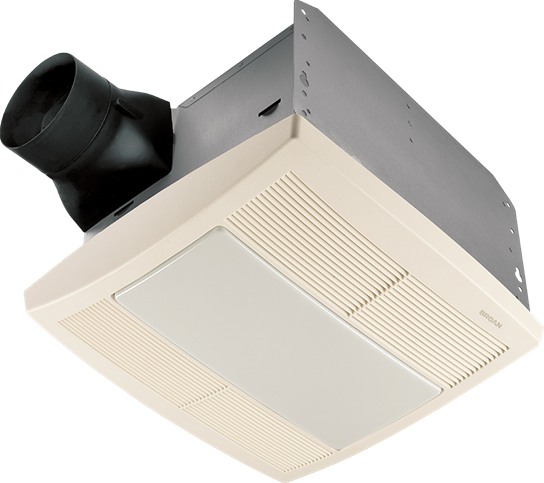

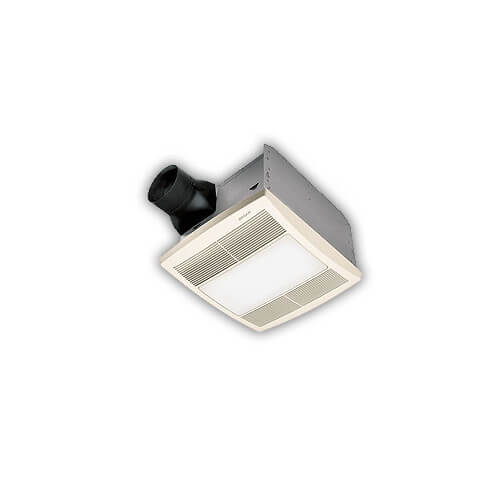

Broan-Nutone QTR080L Ventilation Fan with Lamp 80 CFM (12-3/8 x 14 Inch Grille)

Product Description

The BROAN-NUTONE QTR080L is a ventilation fan with lamp, operating at 80 CFM and 1.0 Sones. It features a 12-3/8 x 14 inch grille and is constructed from 26 gauge galvanized steel. This fan is designed for bathrooms up to 75 sq-ft and includes a motor engineered for continuous operation. It utilizes 4 inch ducting.

• Features a 4W nightlight (bulb sold separately)
• Operates at a nearly silent 1.0 Sones
• Provides bright 100W incandescent lighting (bulb sold separately)

Product Highlights

This ventilation fan offers a combination of power and quiet operation, suitable for use over bathtubs and showers when connected to a GFCI protected branch circuit.

Product Information

Standard Information

• Brand: BROAN-NUTONE
• Manufacturer Part Number: QTR080L

Technical Specifications

• Type: QTR Series Fan With Light
• Brand: Broan-NuTone
• Color: White
• Sones: 1.0
• Width: 11.375 in
• Finish: White
• Height: 7.625 Inch
• Length: 10.5 Inch
• Wattage: 100 Watt
• Amperage: 1.6 Amp
• Material: Polymeric
• Standard: HVI 2100 Certified,UL Listed For Use Over Bathtubs And Showers When Connected To A GFCI Protected Branch Circuit (Ceiling Mount Only) And For Use In Insulated Ceilings (Type IC)
• Duct Size: 4 in
• Applications: For Bathrooms Up To 75 SQ-FT
• Energy Saver: No
• Grille Width: 14 in
• Grille Length: 12.375 in
• Grille Material: Polymeric
• Warranty Length: 3 yr
• Product Type: Ventilation Fan
• Air Flow Capacity (CFM): 80
• Lighting: Incandescent
• Housing Dimension: 10-1/2" x 11-3/8" x 7-5/8"
• Grille Finish: White
• Housing Material: Galvanized Steel
• Warranty: 3 Year
• Product UPC: 02671516386
