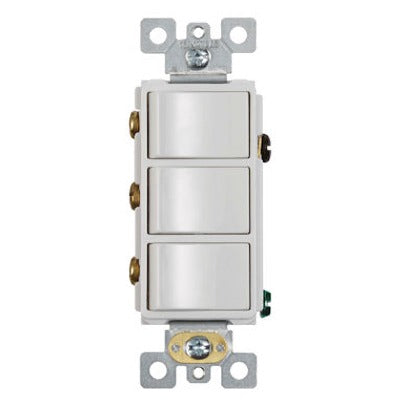

Broan-nutone P3RW 3-function Rocker Switch Wall Control

Product Description

The Broan-Nutone P3RW is a white, tri-rocker combination switch wall control designed to manage up to three devices from a single wall plate. Rated for 120 volts at 60 Hz with a maximum of 15 amps per switch, this control gives HVAC and electrical technicians a clean, consolidated solution for installations that require simultaneous control of a fan, light, heater, or nightlight from one location. The three independent rocker switches operate on a single gang mounting footprint, reducing wall cutout requirements and simplifying rough-in wiring in both new construction and retrofit applications.

This wall control is suited for residential bathroom, utility, and ventilation applications where multiple devices share a common installation point. Typical use cases include exhaust fan and heater combinations, fan and light pairings, and fan, light, and nightlight tri-function units. Electricians and HVAC technicians install this control as part of a complete ventilation or combination unit rough-in, particularly in bathrooms, laundry rooms, and utility spaces where code requires dedicated ventilation and supplemental heat controls at the same location.

Key Features

• Three independent rocker switches on a single wall control for fan, light, heater, or nightlight combinations
• Rated 120 volts at 60 Hz for standard residential branch circuit compatibility
• Maximum 15 amps per switch to handle motor and resistive heating loads
• White finish for a clean match with standard residential wall plates and trim
• Consolidated single-location control reduces wiring complexity in multi-device installations

Compatibility

Designed as an OEM-style replacement or upgrade wall control for residential combination ventilation units requiring independent management of up to three functions such as fan, light, heater, and nightlight.

Installation Notes

Installation should be performed by a licensed electrician in accordance with NEC requirements for branch circuit wiring and wall control devices. Shut off power at the breaker before removing the existing wall control or making any wiring connections. Verify that the combined load of all devices controlled does not exceed the 15-amp per switch rating. Follow the ventilation unit manufacturer wiring diagram to ensure correct function-to-switch assignment before securing the control to the wall box.

Technical Specifications

• Voltage: 120 volts
• Frequency: 60 Hz
• Max Amperage per Switch: 15 amps
• Number of Functions: 3
• Color: White
• Weight: 1.3 pounds
• Package Quantity: 4 per unit of measure

Standard Information

• Brand: Broan-Nutone LLC
• Manufacturer Part Number: P3RW
