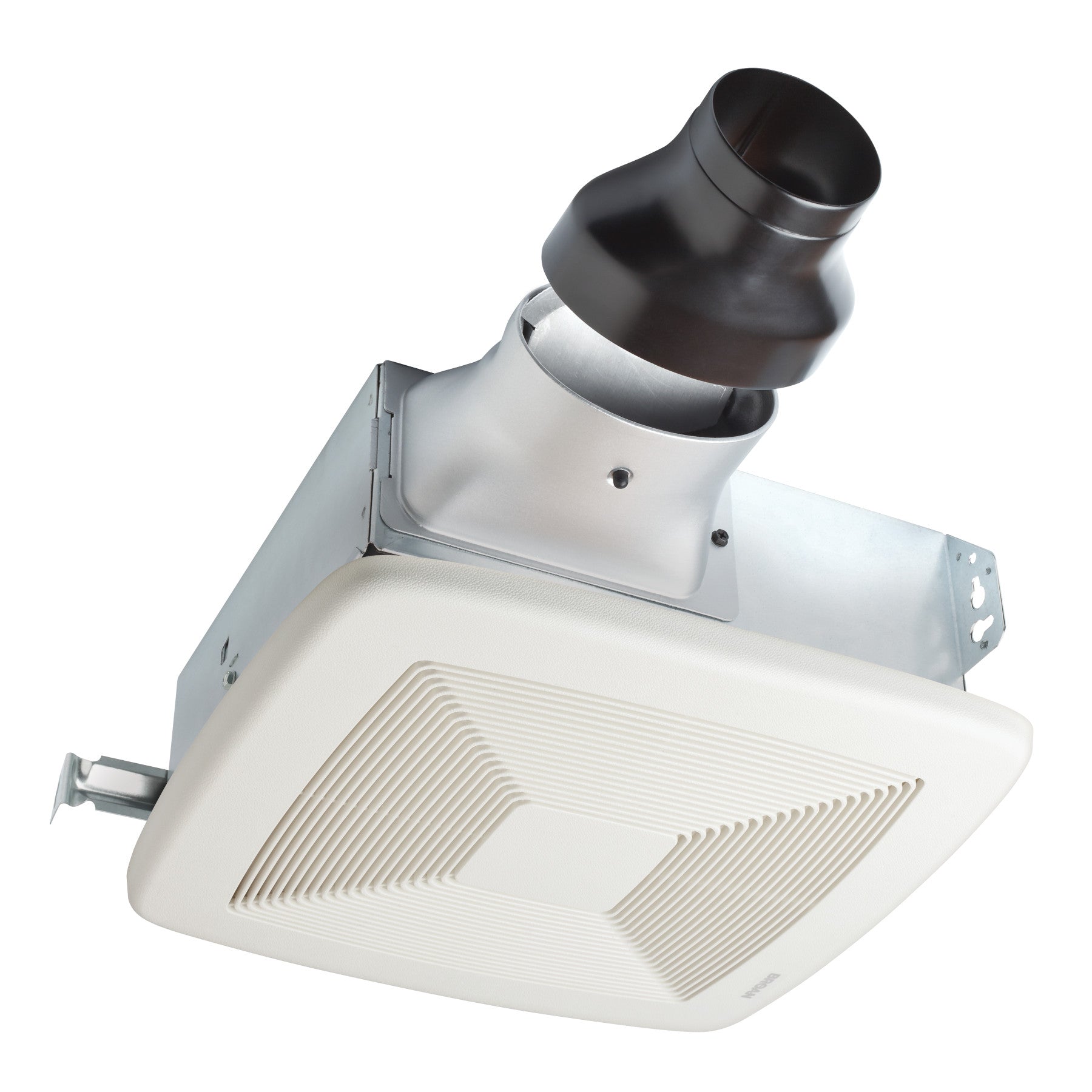

Broan-Nutone LP80F Finish Pack. Motor and 80 CFM

Product Description

The Broan-NuTone LP80F is a finish pack with motor and grille assembly. Designed to operate at 80 CFM, it effectively removes moisture, reducing the risk of mold or mildew in most full baths. This finish pack is ideal for builders and contractors to complete jobs without damaging the grille or motor.

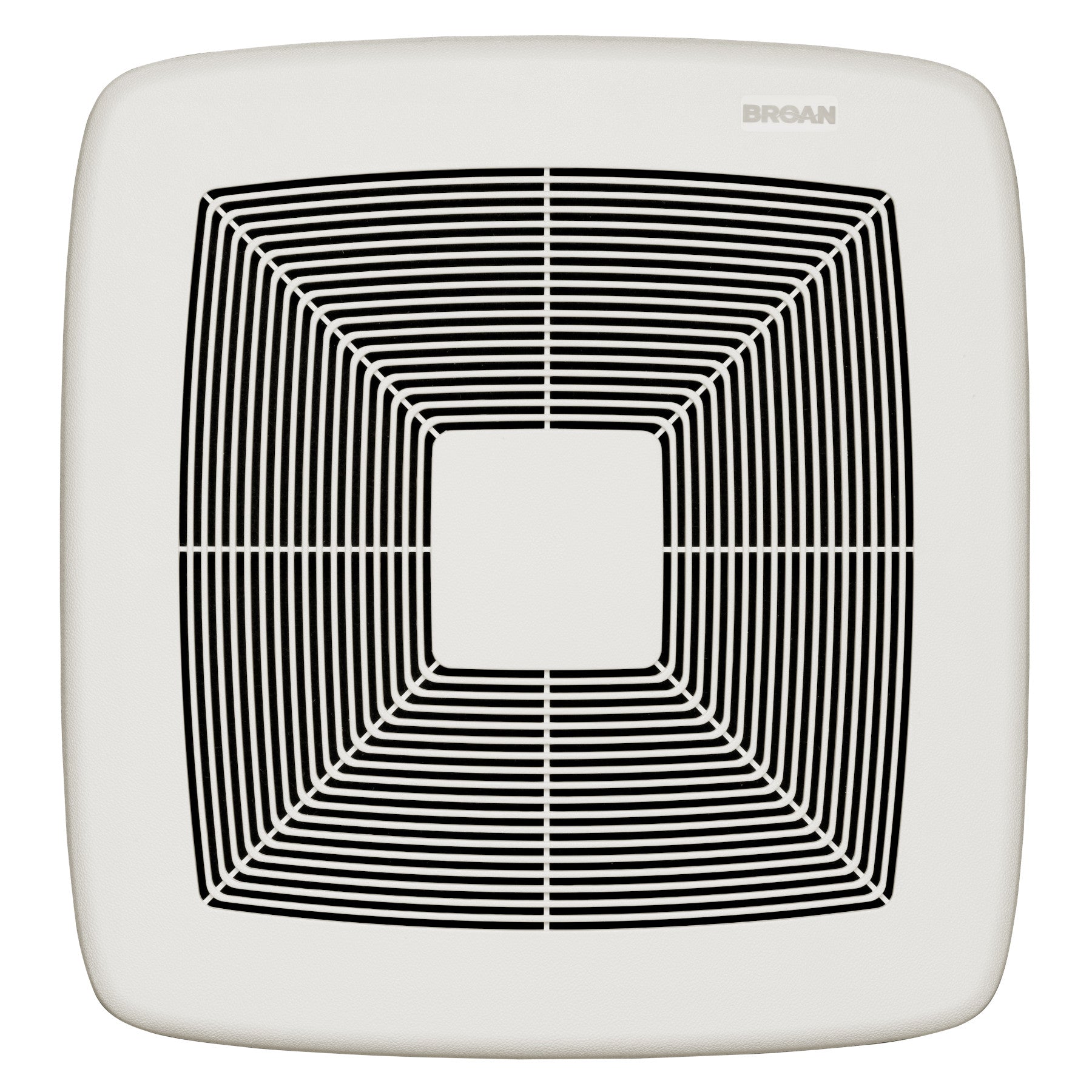

• Includes blower assembly and grille.
• Engineered for continuous operation with a plug-in, permanently lubricated motor.
• ENERGY STAR certified for efficient operation and lower utility bills.

Product Highlights

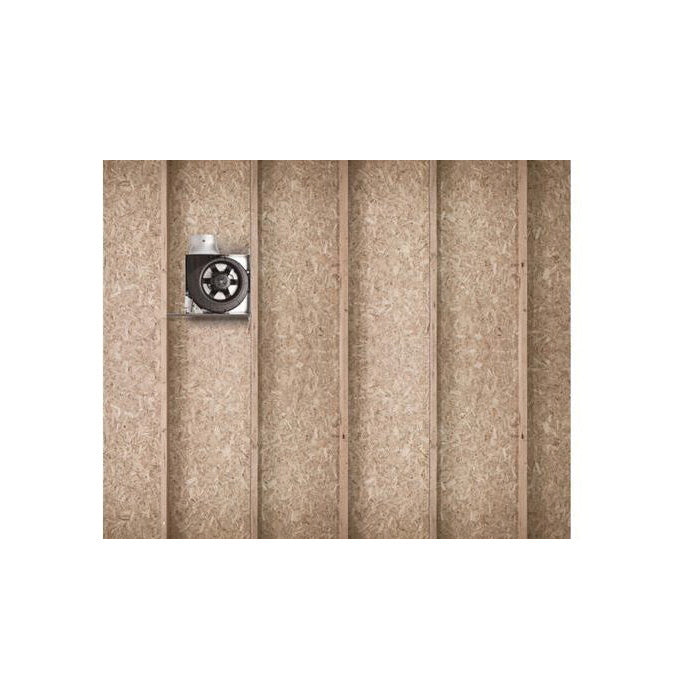

The Broan-NuTone LP80F finish pack offers quiet, efficient ventilation for rooms up to 75 sq. ft. It fits in 2x4 ceiling or wall construction and is suitable for multi-family applications.

Product Information

Standard Information

• Brand: Broan-NuTone
• Manufacturer Part Number: LP80F
• Country of Origin: China

Technical Specifications

• Brand: Broan-NuTone
• Manufacturer Part Number: LP80F
• Airflow Rate: 80 CFM
• Voltage: 120 Volt
• Amperage: 0.3 Amp

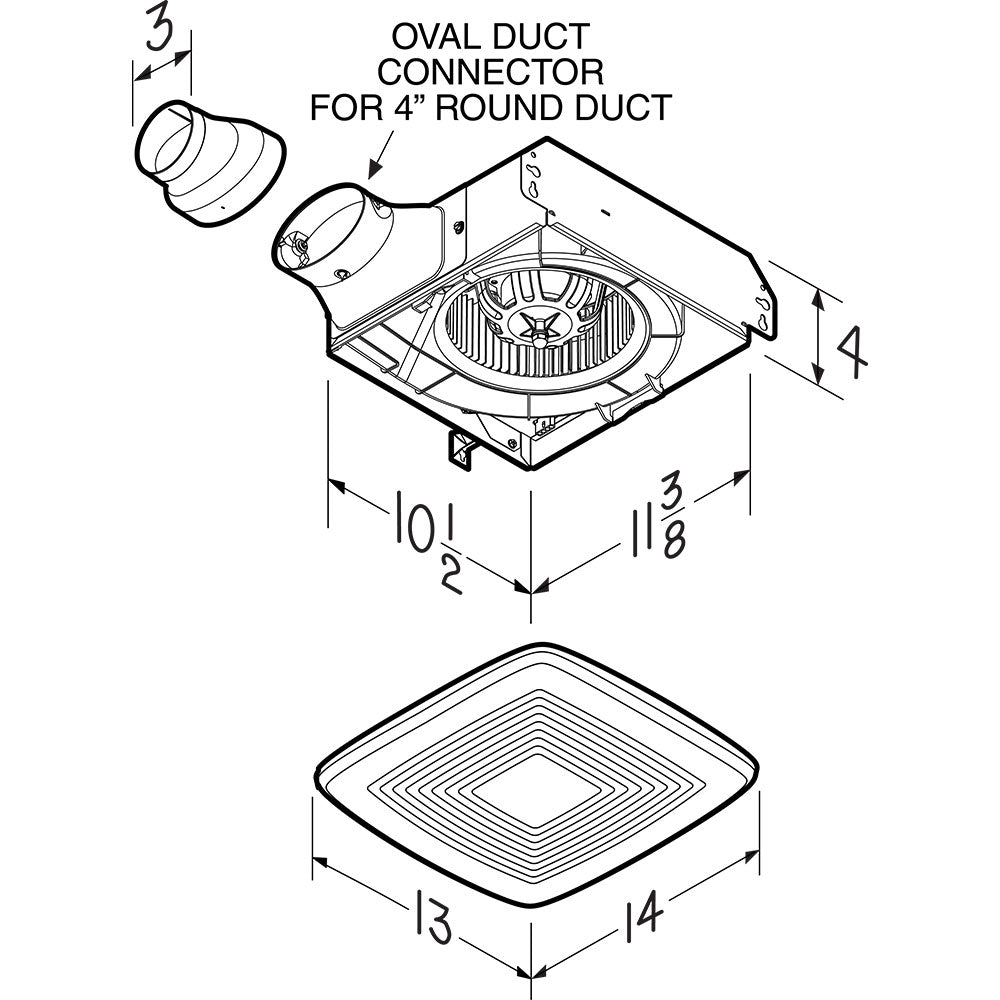

• Duct Size: 3 in
• Duct Shape: Oval
• Nightlight: No
• Width: 13.75 in
• Length: 10.5 in
• Grille Width: 13.75 in
• Grille Length: 13 in
• Housing Width: 11.375 in
• Housing Height: 4 in
• Mounting Type: Ceiling,Wall
• Housing Material: Galvanized
• Country of Origin: China
• Catalog Number: LP80F
• UPC: 026715234080
• GTIN: 00026715234080
• Item Type: Ventilation Fan
• Includes: Blower Assembly
• Standards/Approvals: UL/cUL Listed|HVI Certified|ENERGY STAR® Certified
• Suitable For Use With: LP80H Housing Pack
• Sound Level (Sones): 1
• UL Listed: Yes
• Motor Engineered For Continuous Operation: Yes
• Radiation Damper Available: Yes
• Recommended Room Size (Sq Ft): 75
• Rated Amps: 0.3
• ENERGY STAR® certified: Yes
• Minimum Construction Space Required: 2" x 4"
• High Efficiency Luminaire: No
• CEC Compliant: For Sale in CA
• CFM: 80 ft3/min
• Collection: LoProfile™ Series
• Depth: 13 in
• Dimmable: No
• ETL Listed: No
• Energy Star Compliant: Yes
• Height: 4 in
• Installation Type: Ceiling Mount, Wall Mount
• LED Light: No
• Lights Included: No
• Material: Plastic
• Material Type: Polymer
• Volts: 120V
• Vent Duct Material: Galvanized
• Can Be Used To Comply With Title 24: Yes
