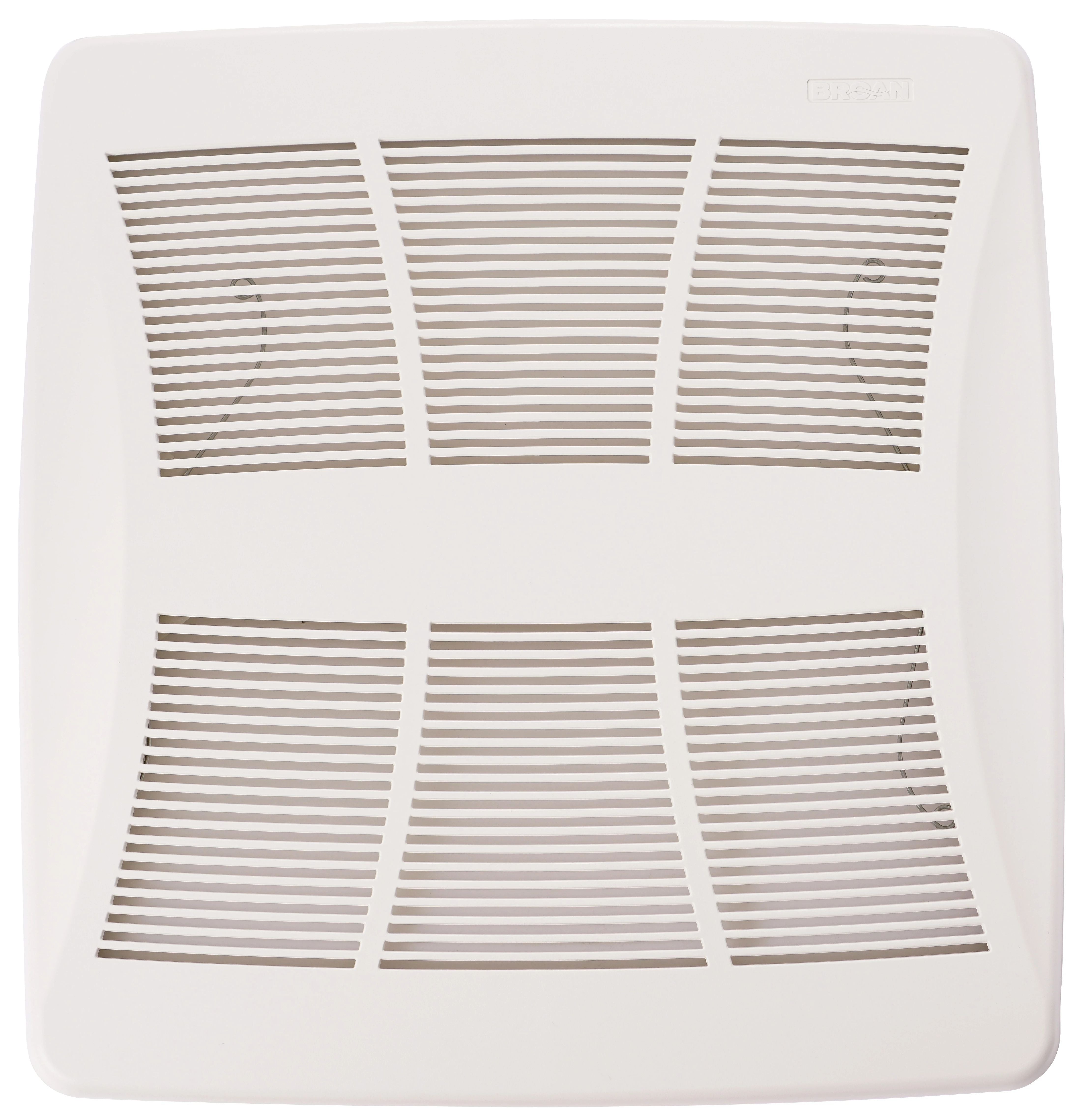

Broan-Nutone LP510RF Lo-Profile DC Series 50-80-100 Selectable CFM Finish Pack

Product Description

The Broan-NuTone LP510RF Lo-Profile Fan is designed for installations where conventional ventilation won't fit. This finish pack features selectable CFM between 50, 80, and 100, and pre-installed continuous run that allows a user to set their low-speed mode between 30 and 100 CFM. It is powerful enough for rooms up to 90 sq. ft.

• ENERGY STAR certified
• Selectable CFM and Continuous Run: speeds of 50-80-100 for effective ventilation
• 4" oval duct connection for installation flexibility, allows for ceiling or wall mounting

Product Highlights

This Lo-Profile fan is narrow enough to be installed in a wall between 2x4 studs. It meets ASHRAE 62.2 standards and is ETL listed for use over bathtubs and showers when connected to a GFCI protected branch circuit.

Product Information

Standard Information

• Brand: BROAN-NUTONE
• Manufacturer Part Number: LP510RF

Technical Specifications

• CFM: 50-80-100
• Color Finish: White
• Duct Size: 4" or 3"
• ENERGY STAR certified: Yes
• Grille Length: 13
• Grille Width: 13.75
• Housing Dimensions: 10.25" x 10.25" x 3.375"
• Sound Level (Sones): 0.4-0.9-1.2
• UL Listed: No
• Grille Finish: White
• Humidity Sensing: No
• Motion Sensing: No
• Motor Engineered For Continuous Operation: No
• Night Light: No
• Radiation Damper Available: Yes
• Room Side Installation: No
• UL Listed for use over bathtubs or showers when connected to a GFCI circuit: No
• Recommended Room Size (Sq Ft): 90
• Rated Amps: 0.23
• Voltage: 120
• Can Be Used To Comply With Title 24: Yes
• Minimum Construction Space Required: 2" x 4"
• High Efficiency Luminaire: No
• Air flow: 100 CFM
• Ventilation fan type: Bathroom Exhaust Fan
• Mount type: Ceiling
• Depth: 3.375"
