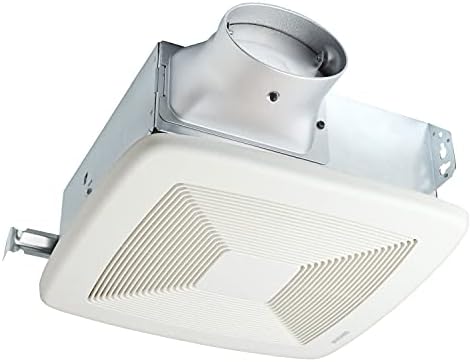

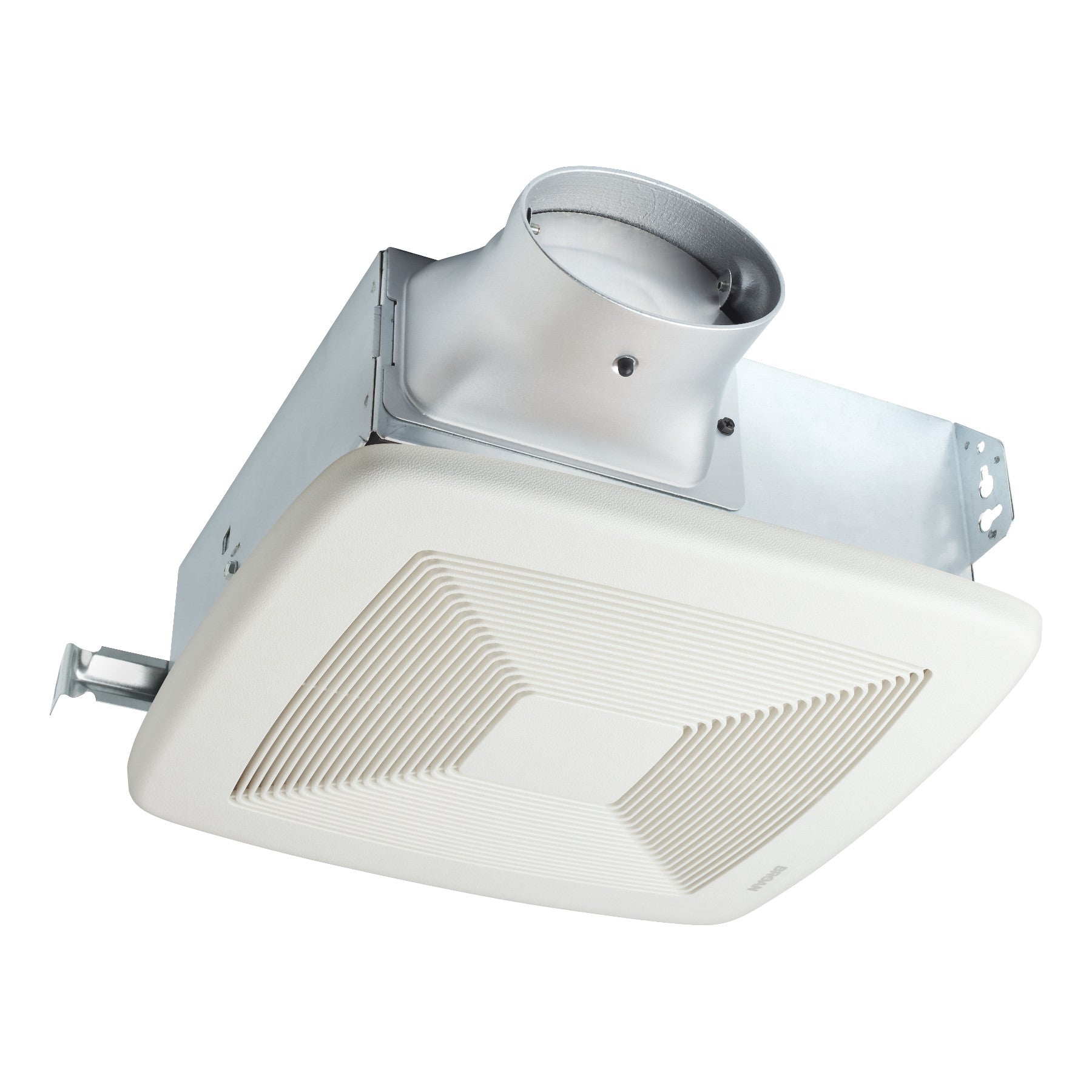

Broan-Nutone LP110H LoProfile 110 CFM Ventilation Fan Housing Pack

Product Description

The BROAN-NUTONE LP110H LoProfile 110 CFM Ventilation Fan Housing Pack includes fan housings with slide channels and mounting brackets. Ideal for multi-family applications, it fits in 2x4 ceiling or wall construction. The corrosion-resistant galvanized steel housing stands up to moisture and is compatible with Radiation Damper Model RDF1.

• 110 CFM, Effective ventilation to remove moisture and reduce the risk of mold or mildew in most full baths
• 1.5 Sones for Quiet performance, enough sound to know your fan is on.
• Housing/Finish packs are sold in a package of four; includes fan housings with slide channels and mounting brackets

Product Highlights

This ventilation fan housing pack is perfect for new construction or renovation projects. It provides powerful and quiet ventilation for rooms up to 100 sq. ft.

Product Information

Standard Information

• Brand: BROAN-NUTONE
• Manufacturer Part Number: LP110H

Technical Specifications

• CFM: 110
• Color Finish: White

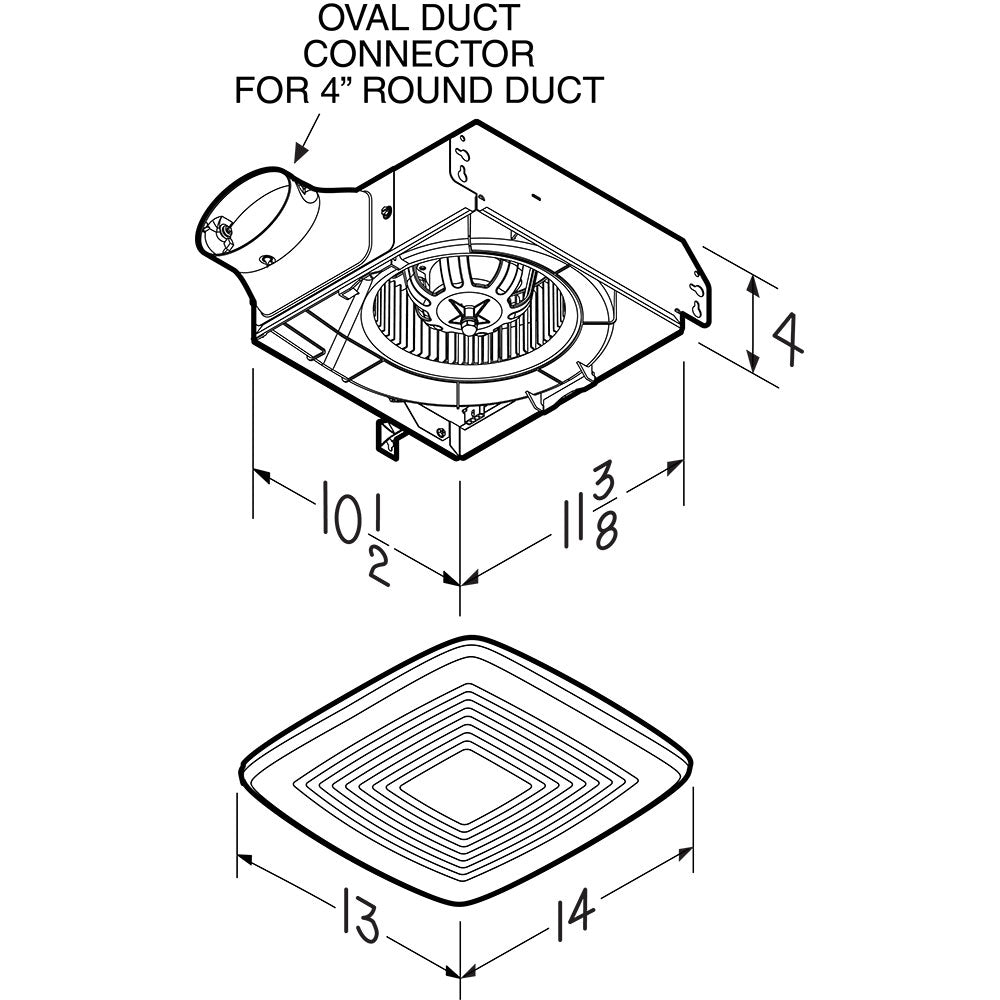

• Duct Size: 4
• ENERGY STAR certified: Yes
• Grille Length: 13
• Grille Width: 14
• Sound Level (Sones): 1.5
• UL Listed: Yes
• Grille Finish: White
• Humidity Sensing: No
• Motion Sensing: No
• Motor Engineered For Continuous Operation: Yes
• Night Light: No
• Radiation Damper Available: Yes
• Room Side Installation: No
• UL Listed for use over bathtubs or showers when connected to a GFCI circuit: Yes
• Heater Wattage: 0
• Recommended Room Size (Sq Ft): 105
• Rated Amps: 0.3
• Voltage: 120
• Can Be Used To Comply With Title 24: No
• Minimum Construction Space Required: 2" x 4"
• High Efficiency Luminaire: No
• Power Source: AC
• Fan Design: Exhaust
• Room Type: Bathroom
• Special Features: Manual
• Recommended Uses For Product: Cooling, Exhaust, Drying, Ventilation
• Mounting Type: Ceiling Mount, Wall Mount
• Controller Type: Button Control
• Number of Speeds: 1
• Noise Level: 1.5 Sonios
• Airflow Capacity: 110 Cubic Feet Per Minute
• Speed: 110 RPM
• Switch Type: Push Button
• Indoor/Outdoor Use: Indoor
• Control Method: Touch
• Efficiency: Energy Efficient
• Wireless: No
• Number of Power Levels: 1
• Motor Type: DC
• Installation Type: Ceiling Mount, Wall Mount
• Material Type: Alloy Steel
• Blade Material: Plastic
