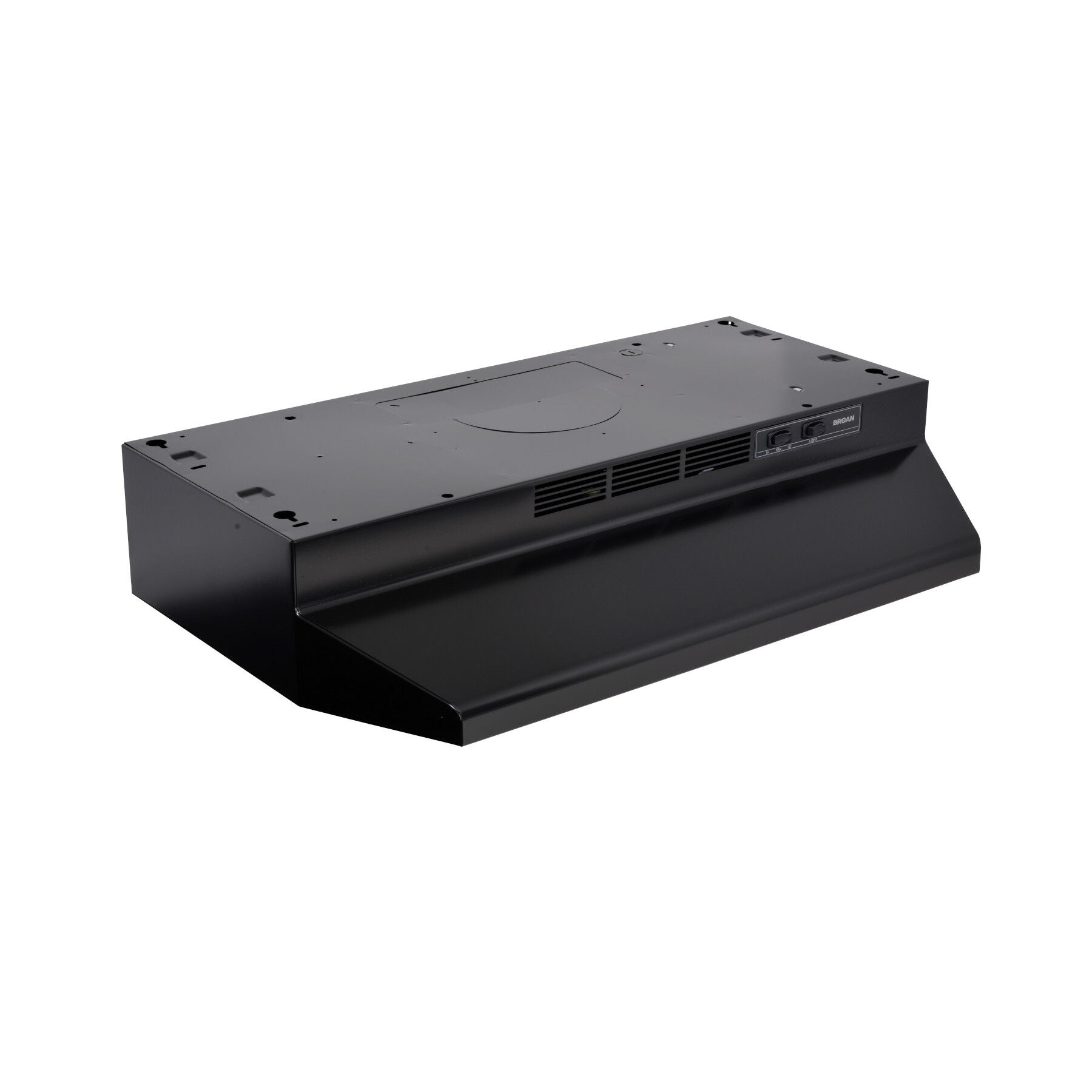

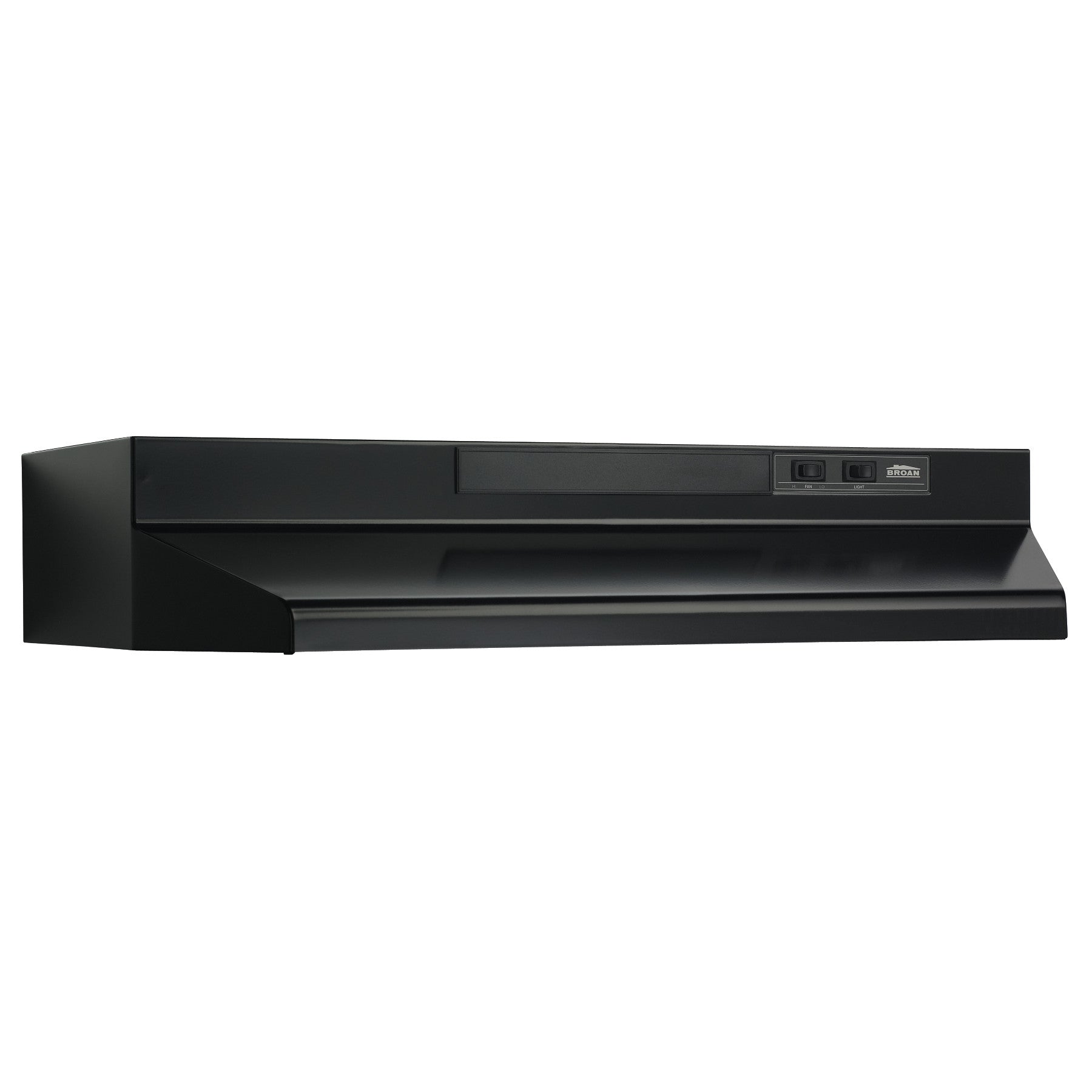

Broan-nutone f402423 Range Hood 230 Cfm 24 in Black

Product Description

The BROAN-NUTONE f402423 is a 24-inch under-cabinet range hood designed for residential kitchen ventilation. Part of the F40000 series, it delivers up to 230 CFM of airflow through a single-speed blower, moving cooking exhaust, grease, and odors away from the cooktop. The unit is built for under-cabinet mounting and ships ready for four installation configurations, giving installers flexibility across new construction and retrofit jobs. A removable grease filter and integrated light switch are built into the control panel. Licensed kitchen ventilation contractors and HVAC techs handle typical installs.

This range hood suits standard residential under-cabinet applications over ranges and cooktops up to 24 inches wide. The four-way convertibility supports ducted vertical discharge, ducted horizontal discharge, and non-ducted recirculating operation. Ducted configurations use either a 3-1/4 inch by 10 inch rectangular opening or a 7-inch round duct collar. The non-ducted mode recirculates filtered air back into the kitchen without exterior ductwork, making it viable for interior kitchen walls where running duct is not practical.

Key Features

• 230 CFM maximum blower output for effective cooktop exhaust in residential kitchens
• Four-way convertible installation: rectangular ducted vertical, rectangular ducted horizontal, 7-inch round ducted, or non-ducted recirculating
• Compatible with 3-1/4 inch by 10 inch rectangular or 7-inch round duct openings
• Easy-clean removable grease filter reduces maintenance time between service calls
• Integrated controls for fan speed and light activation on a single panel
• Black finish for standard residential kitchen aesthetics

Compatibility

Designed as an OEM-style replacement or direct-install under-cabinet range hood for residential kitchens requiring a 24-inch unit with convertible ducting options.

Installation Notes

Power down the kitchen circuit at the breaker before beginning installation and verify the circuit is de-energized with a meter. The unit mounts under an existing cabinet and connects to supply wiring per NEC guidelines for kitchen ventilation appliances. For ducted configurations, ensure the duct path is clear, sealed at all joints, and terminates at an exterior wall cap. Non-ducted installs require a compatible charcoal filter cartridge; confirm the correct filter is in place before returning the unit to service.

Technical Specifications

• Blower CFM (Max): 230 CFM
• Width: 24 inches
• Duct Options: 3-1/4 inches x 10 inches rectangular or 7-inch round
• Installation Type: Under-cabinet, convertible (ducted or non-ducted)
• Finish: Black

Standard Information

• Brand: BROAN-NUTONE
• Manufacturer Part Number: f402423
