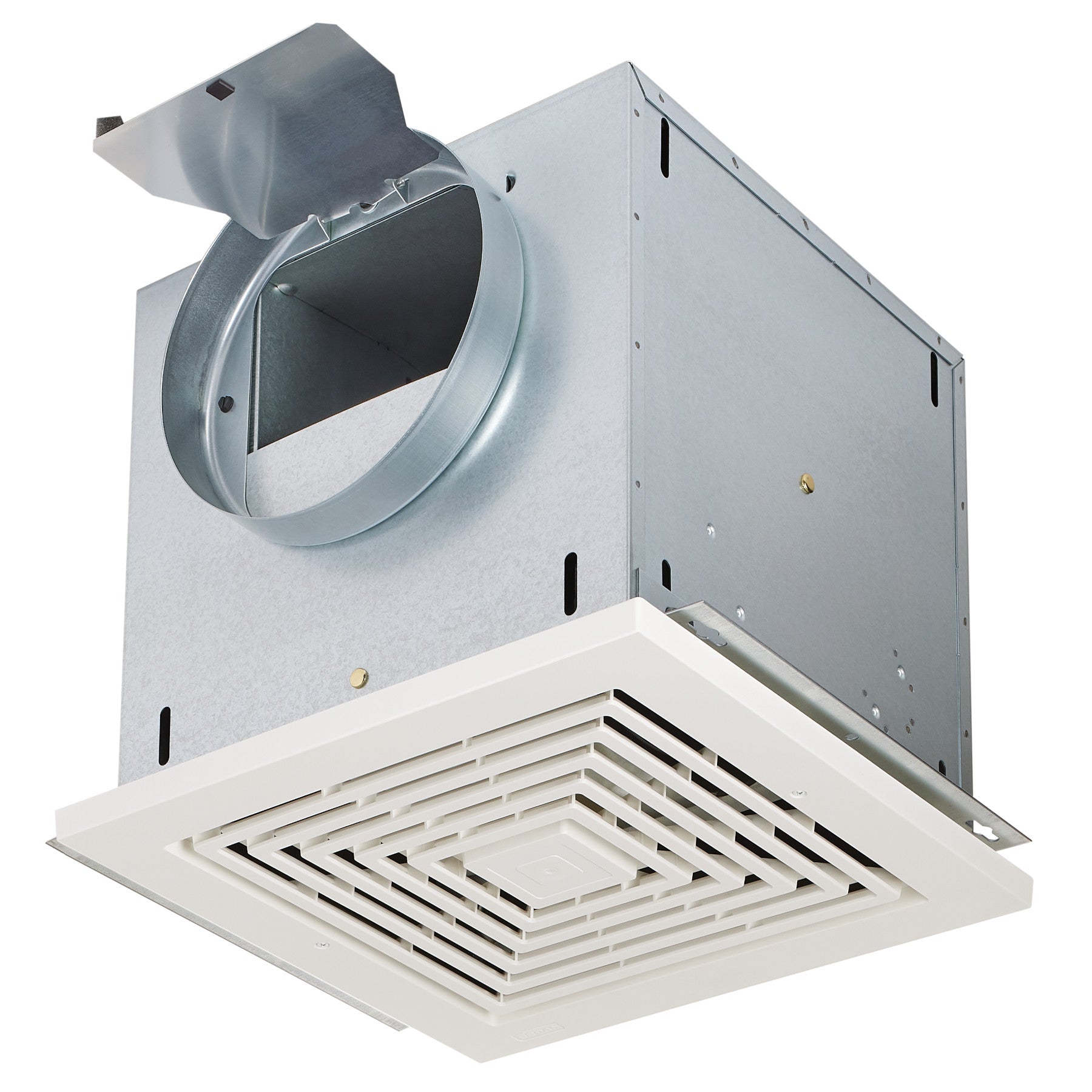

Broan-Nutone BRL150E High-Capacity, Light Commercial 200 CFM Ceiling Mount Ventilation Fan

Product Description

The BROAN-NUTONE BRL150E is a high-capacity, light commercial ENERGY STAR certified fan, providing a quiet solution for continuous ventilation. Ideal for conference rooms and public restrooms, this fan features a heavy-duty motor and low-profile design. It includes 8-way adjustable mounting brackets for easy ceiling installation and complies with ASHRAE 90.1 (2019), IECC-C (2021), and IMC (2021).

• 200 CFM, 1.0 sones ceiling mount commercial ventilation fan
• Includes 8-way adjustable mounting brackets for easy ceiling-mount installation
• ENERGY STAR certified

Product Highlights

High-capacity, low-vibration fan for continuous ventilation in commercial spaces. Easy to install with adjustable mounting brackets. AMCA and HVI air and sound tested.

Product Information

Standard Information

• Brand: BROAN-NUTONE
• Manufacturer Part Number: BRL150E

Technical Specifications

• CFM: 200
• Duct Size: 8
• ENERGY STAR® certified: Yes

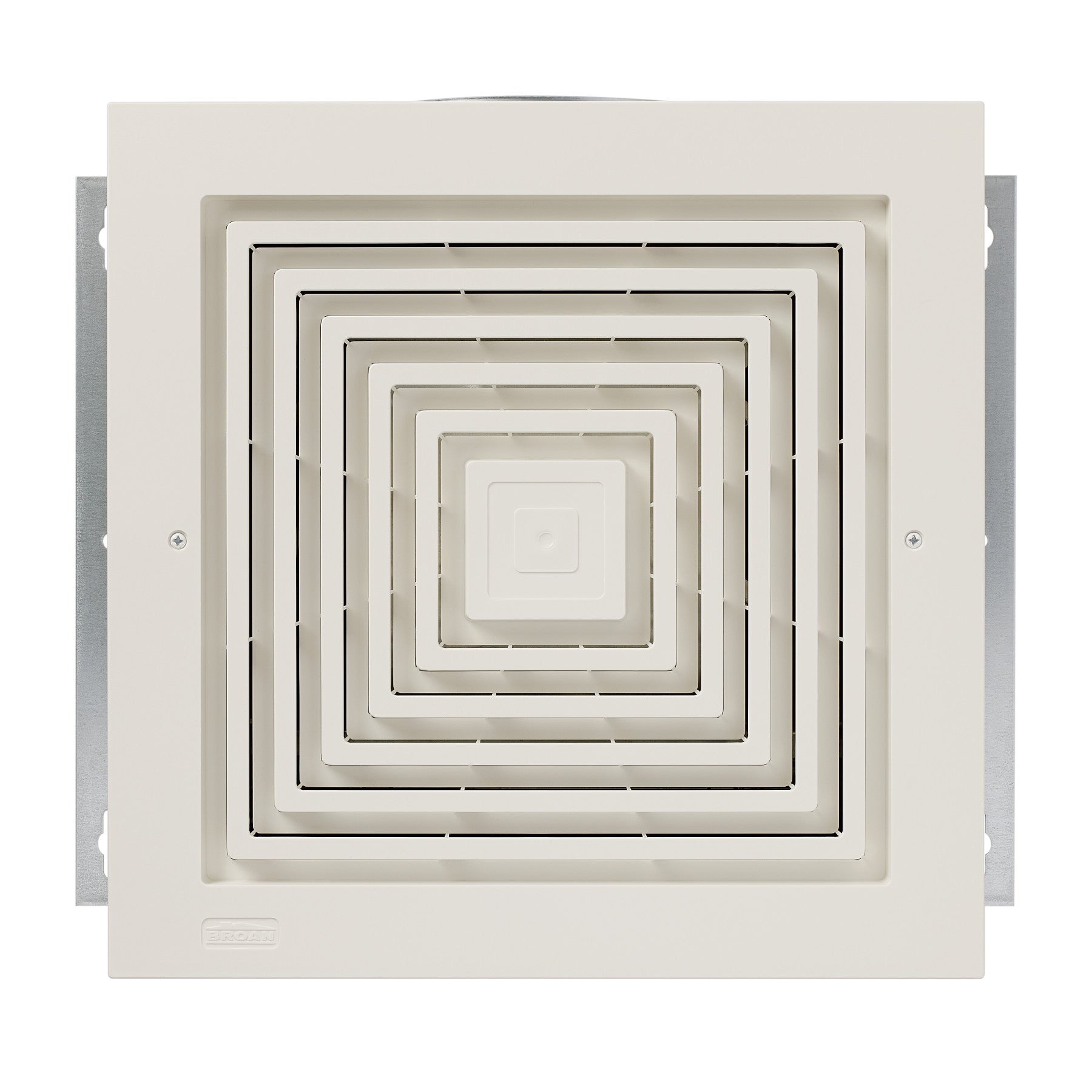

• Grille Length: 14"
• Grille Width: 14"
• Housing Dimensions: 12.25” x 12.25” x 11.75”
• Sound Level (Sones): 1
• UL Listed: Yes
• Grille Finish: White
• Humidity Sensing: No
• Motion Sensing: No
• Motor Engineered For Continuous Operation: Yes
• Night Light: No
• Radiation Damper Available: Yes
• Room Side Installation: No
• UL Listed for use over bathtubs or showers when connected to a GFCI circuit: No
• Rated Amps: 0.4
• Voltage: 120
• Can Be Used To Comply With Title 24: No
• Manufacturer Warranty: 1 Year
• Radiation Damper Compatible with this Model: Yes
