Broan-Nutone BLP150E75NS-HWF ONE 150 CFM Energy Recovery Ventilator (ERV) Hardwired Interior Door/Trim

Product Description

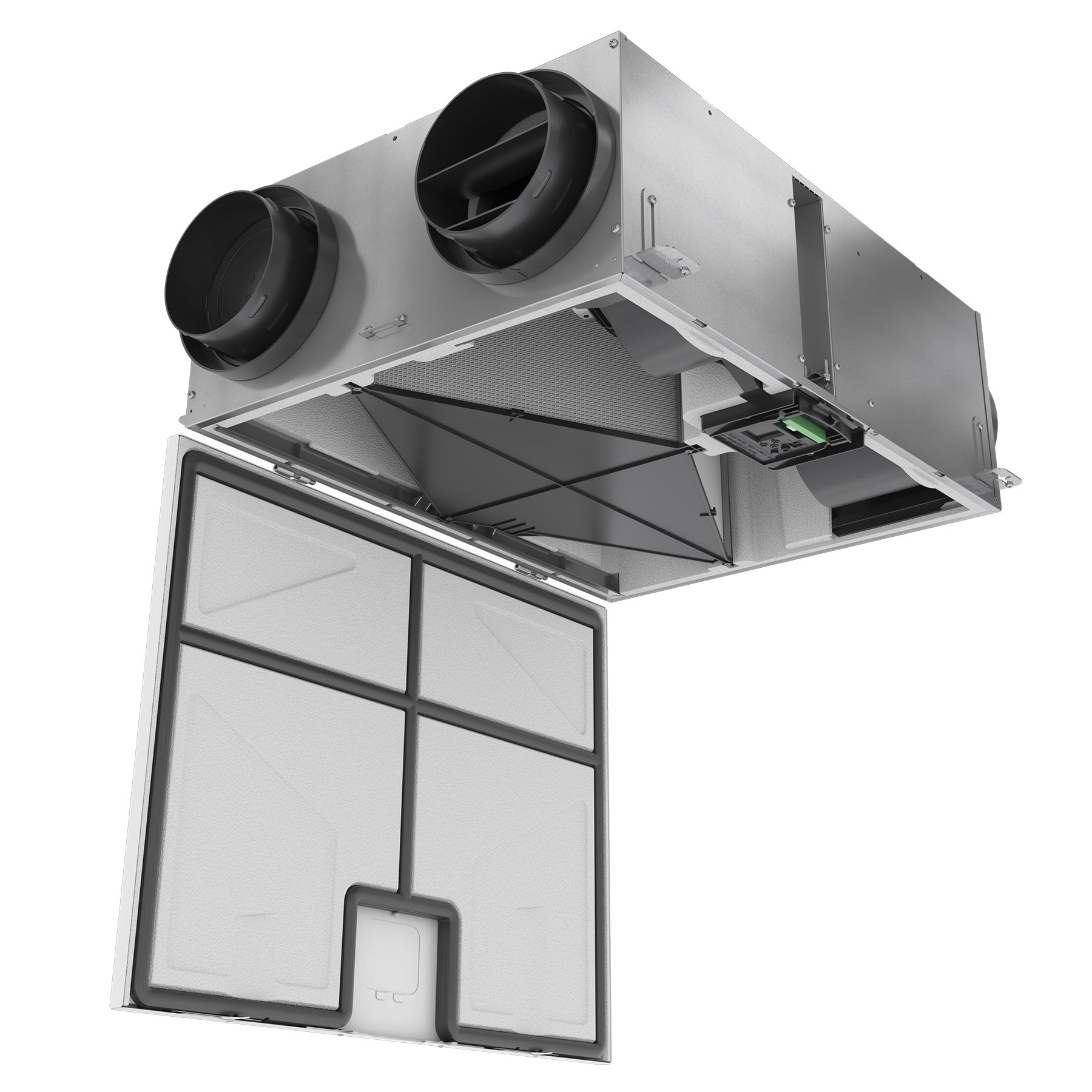

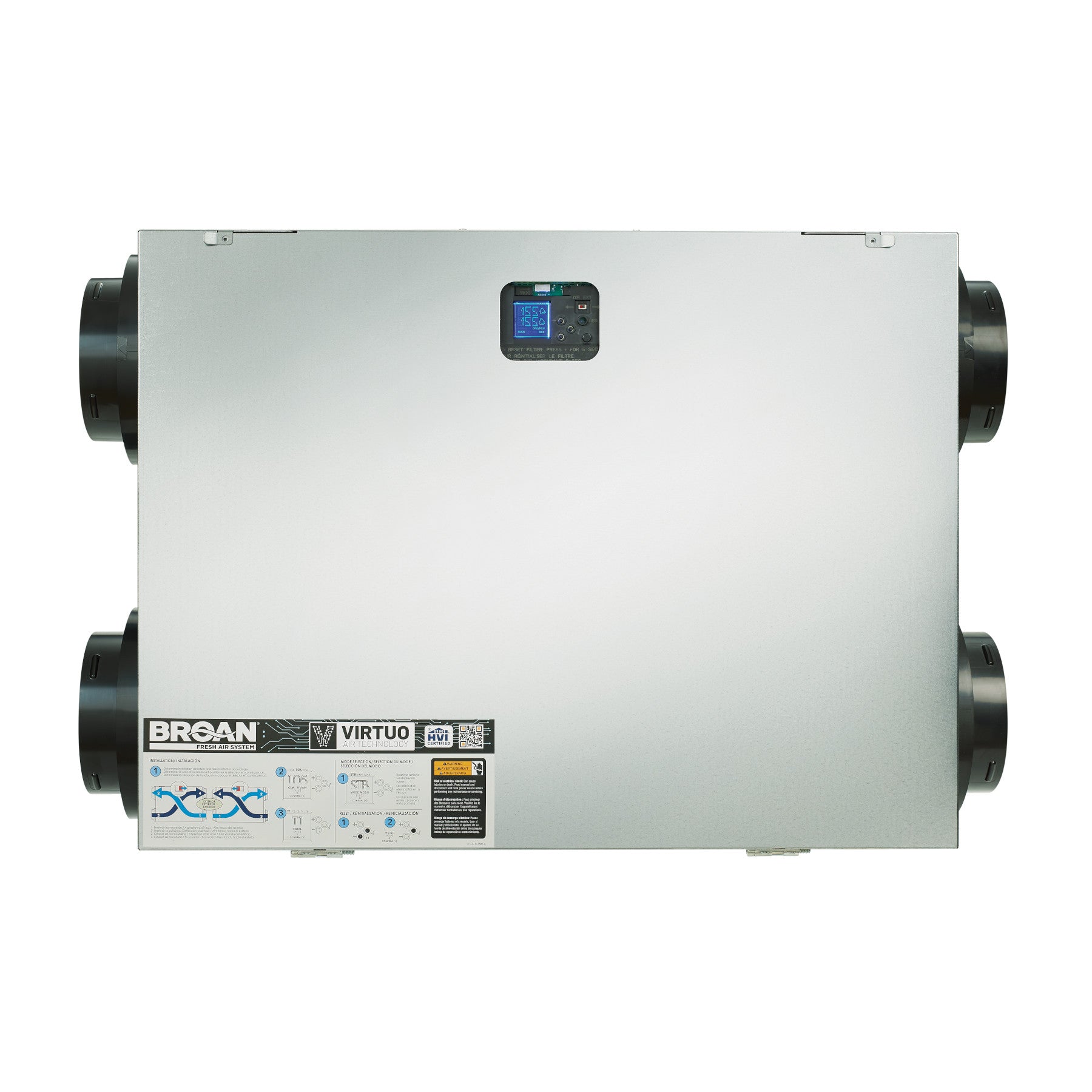

The Broan-Nutone BLP150E75NS-HWF ONE 150 CFM Energy Recovery Ventilator (ERV) features a prefinished white access door and trim kit, designed for mounting within ceiling or wall cavities. VIRTUO™ Technology delivers auto-balancing and self-adjusting performance. Field-adjustable airflow direction is configured using an integrated selection switch. An integrated LCD screen provides CFM selection and displays real-time airflow and power consumption data.

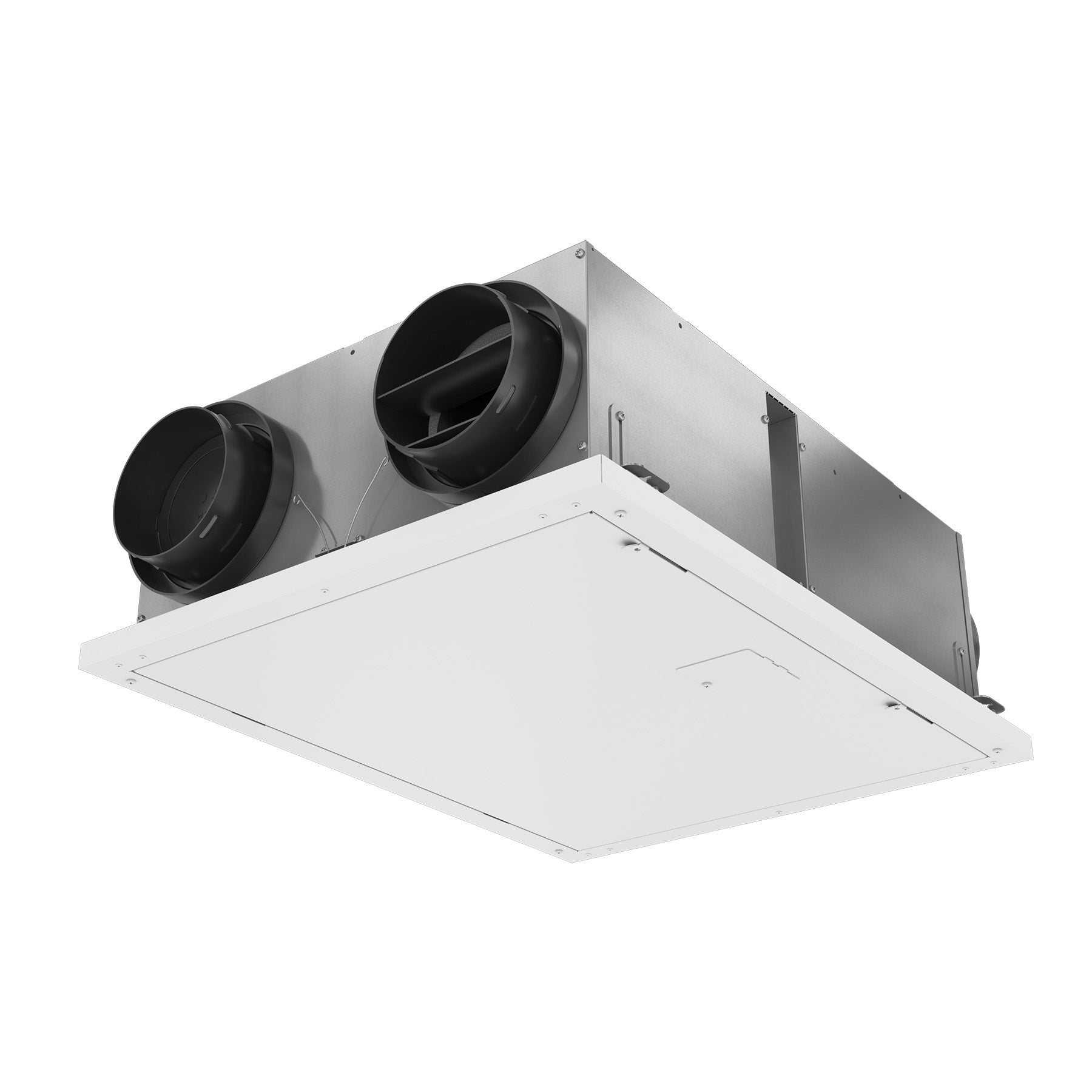

• Includes a prefinished white access door and trim kit.
• Reversible Airflow – Instantly switch airflow direction.

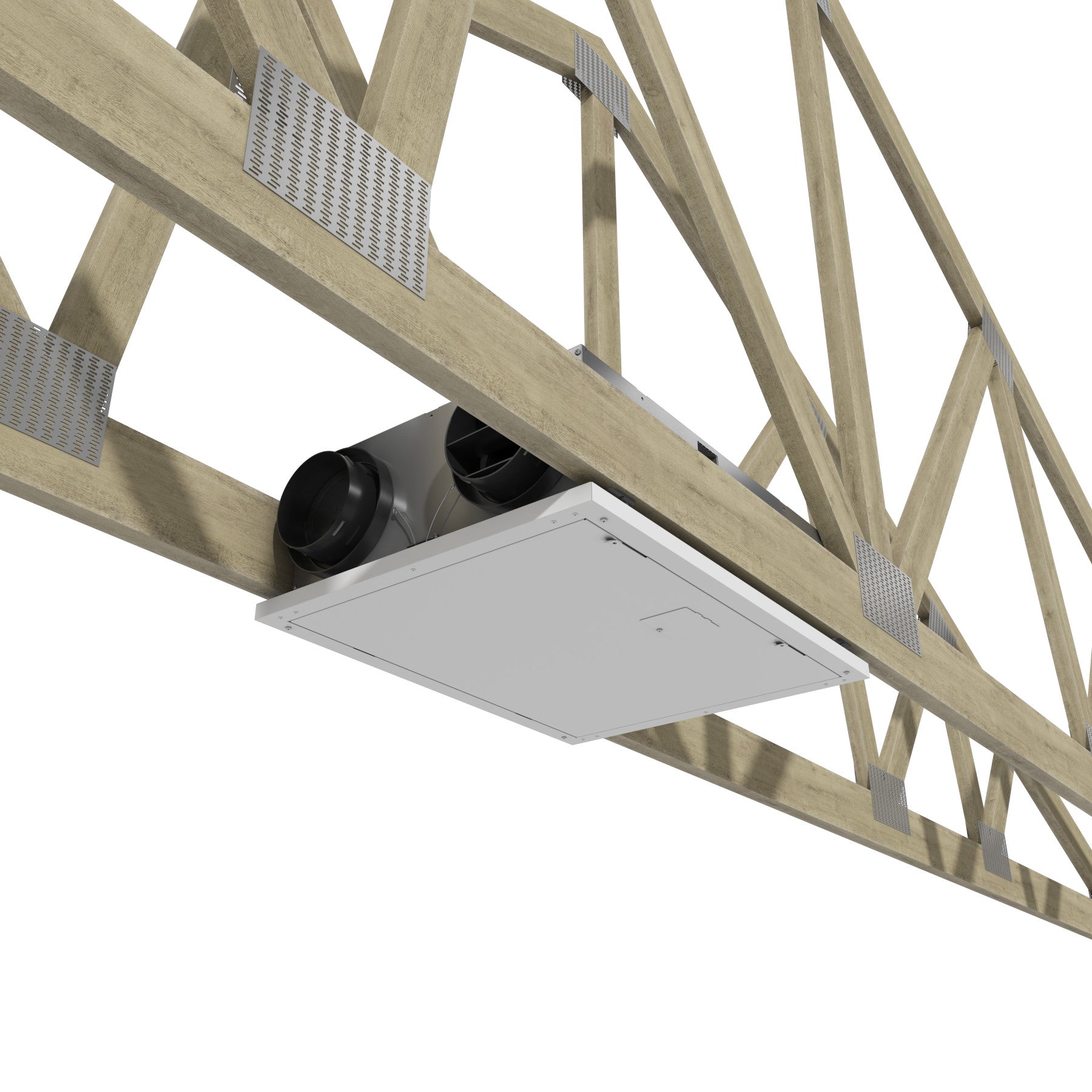

• Flexible Mounting – Wall or horizontal installation.

Product Highlights

This Broan-Nutone ERV offers seamless integration, flexible installation, and simplified project planning with its advanced features and energy-efficient design.

Product Information

Standard Information

• Brand: BROAN-NUTONE
• Manufacturer Part Number: BLP150E75NS-HWF
• Country of Origin: United States

Technical Specifications

• SKU: BLP150E75NS-HWF
• Brand/Manufacturer: Broan
• Static Pressure: 0.2 wg
• Maximum CFM: 155 CFM
• Duct Size: 6"
• Port Type: Side Port
• Wiring Options: Hardwired Interior Ready
• Electrical: 120 V
• Wattage: 170 W
• Mounting Type: Wall Mounted
• Length: 32"
• Height: 10.06"
• Width: 20.84"
• Warranty: 5-Year Core Warranty, 5-Year Parts Warranty
• Power Type: Hardwired
• Voltage: 120
• Min/max continuous airflow (CFM at 0.2 in. w.g.): 35 - 155 CFM
• Sensible recovery efficiency at 32°F: 84%
• Sensible recovery efficiency at -13°F: 26% (Not HVI Listed)
• Apparent sensible efficiency at 32°F: 87%
• Core Type: ERV
• Defrost Type: Exhaust
• Filtration Level: MERV 8
• ENERGY STAR® certified: No
• HVI Certified: No
• cUL Listed: No
• UL Listed: Yes
• Core Warranty: 5 Years
• Parts Warranty: 5 Years
• Brand: Broan-NuTone
• Mfr. Part Number: BLP150E75NS-HWF
• UPC Code: #026715275212
• Model: BLP150E75NS-HWF
• MPN: BLP150E75NS-HWF
• California Prop 65 Warning: No
• Country of Origin: United States
