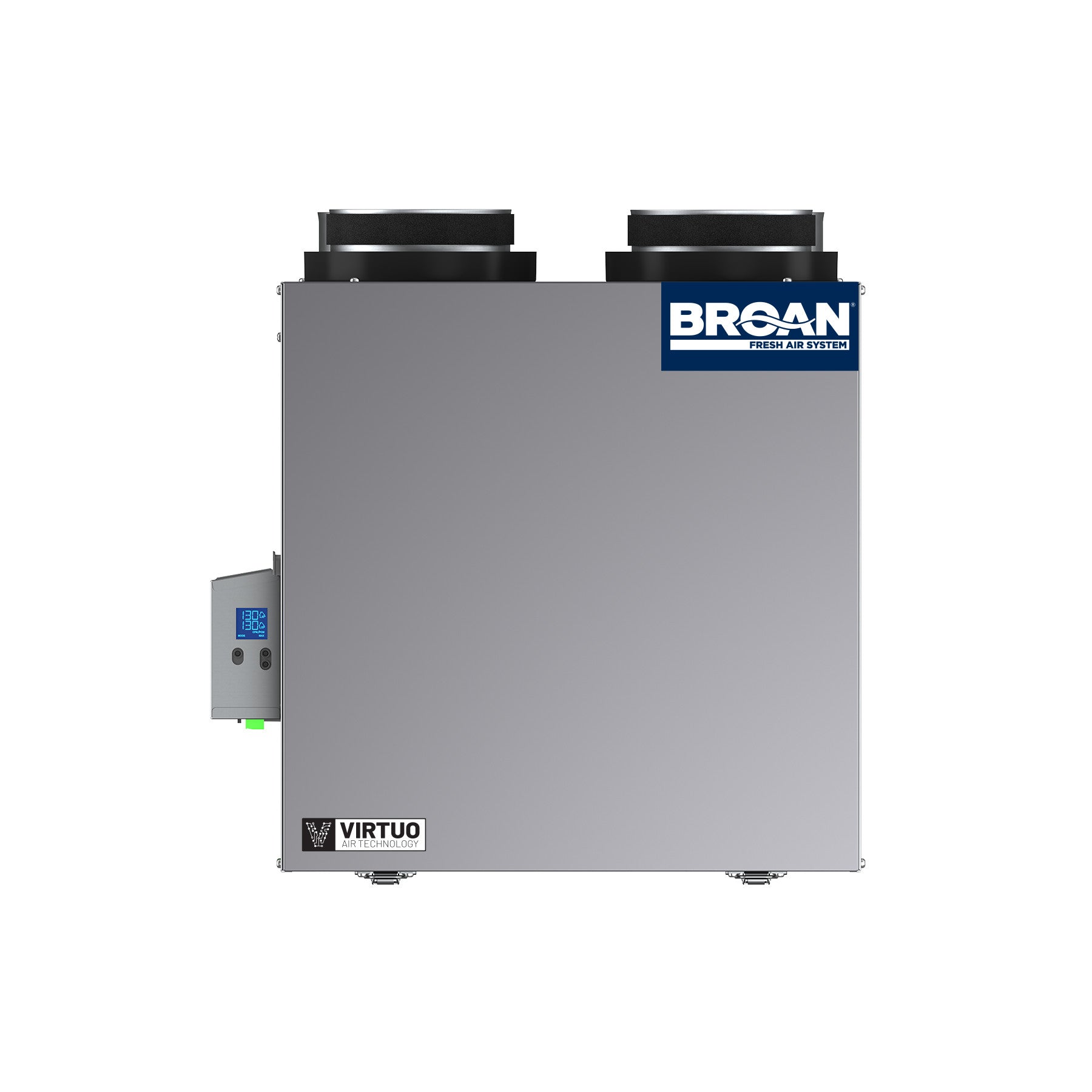

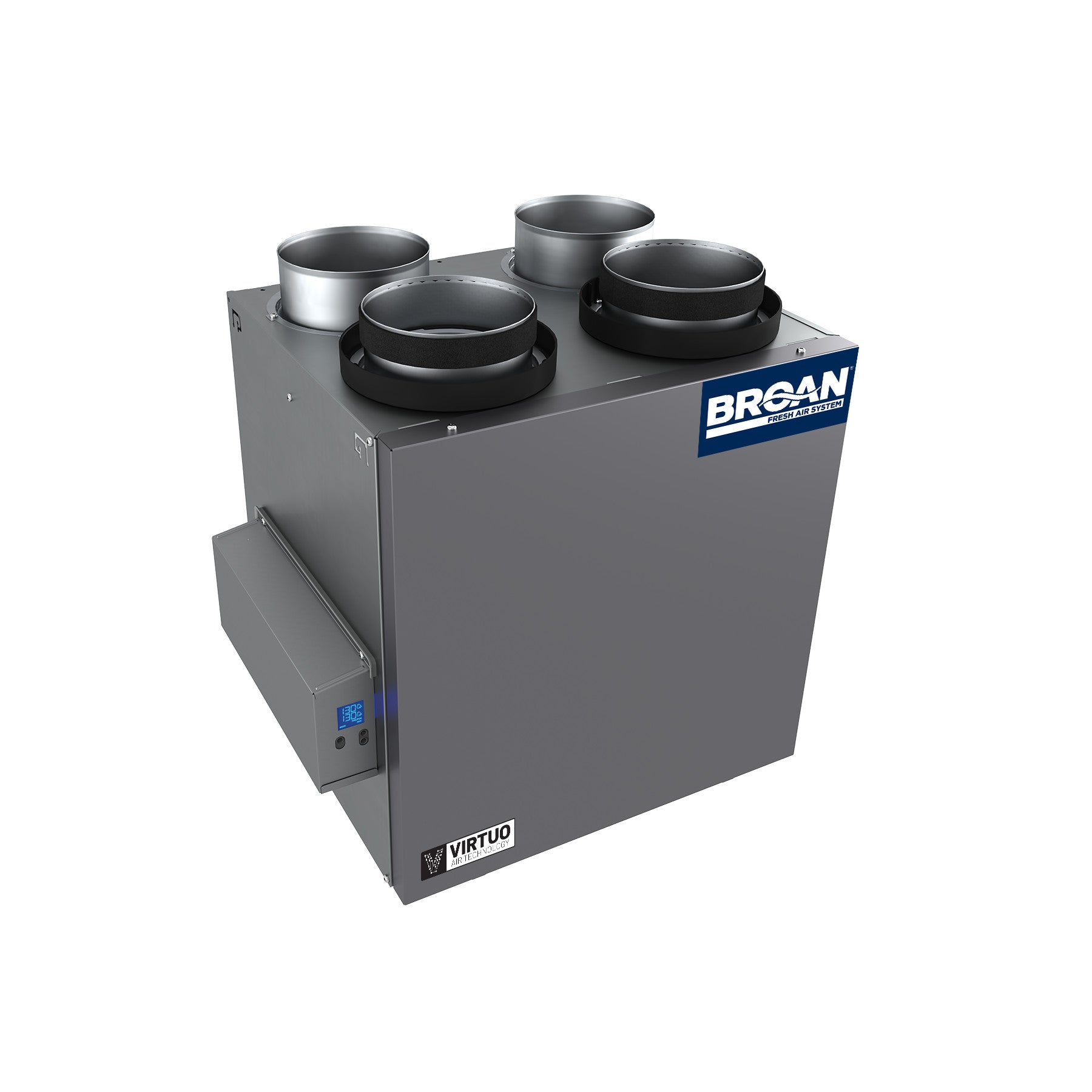

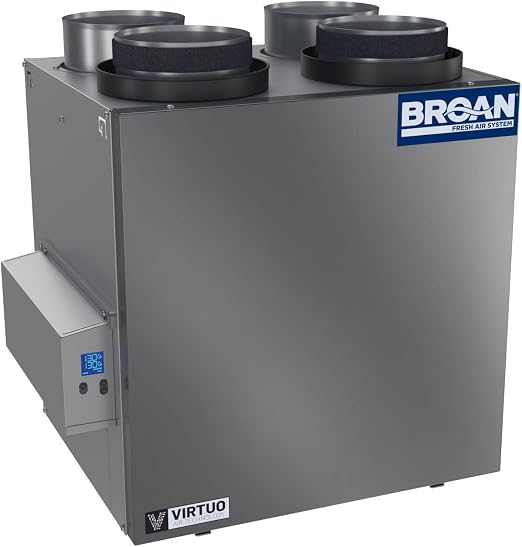

Broan-Nutone B160E65RT AI Series 160 CFM Energy Recovery Ventilator (Top Inlet)

Product Description

Broan-NuTone B160E65RT is an AI Series 160 CFM energy recovery ventilator with VIRTUO Air Technology and a top inlet configuration. The unit provides selectable airflow from 35 to 160 CFM, integrated LCD for real-time airflow measurement and automatic system balancing, PMSM ECM fan motors for energy-efficient operation, and factory-installed MERV 8 filtration with an optional MERV 13 upgrade. It is designed for wall or ceiling installation to support residential fresh-air ventilation and energy recovery.

• Selectable airflow range 35–160 CFM with integrated LCD for real-time airflow and diagnostics
• VIRTUO Air Technology with auto-balancing and energy recovery core (65SRE) for balanced ventilation
• Factory-installed MERV 8 filtration (optional MERV 13), PMSM ECM fan motors, top port configuration

Product Highlights

Top-port AI Series ERV with VIRTUO Air Technology, selectable 35–160 CFM, MERV 8 (upgradeable to MERV 13), PMSM ECM motors, integrated LCD and auto-balancing.

Product Information

Standard Information

• Brand: BROAN-NUTONE
• Manufacturer Part Number: B160E65RT
• Country of Origin: Canada

Technical Specifications

• Brand: Broan-NuTone
• Model / MPN: B160E65RT
• Series: AI
• Technology: VIRTUO Air Technology
• Core Technology: 65SRE
• Airflow (Selectable): 35 - 160 CFM
• Maximum Airflow: 160 CFM
• Sensible Recovery Efficiency at 32F: 67% (64 CFM)
• Sensible Recovery Efficiency at -13F: 56% (64 CFM)
• Apparent Sensible Efficiency at 32F: 72% (64 CFM)

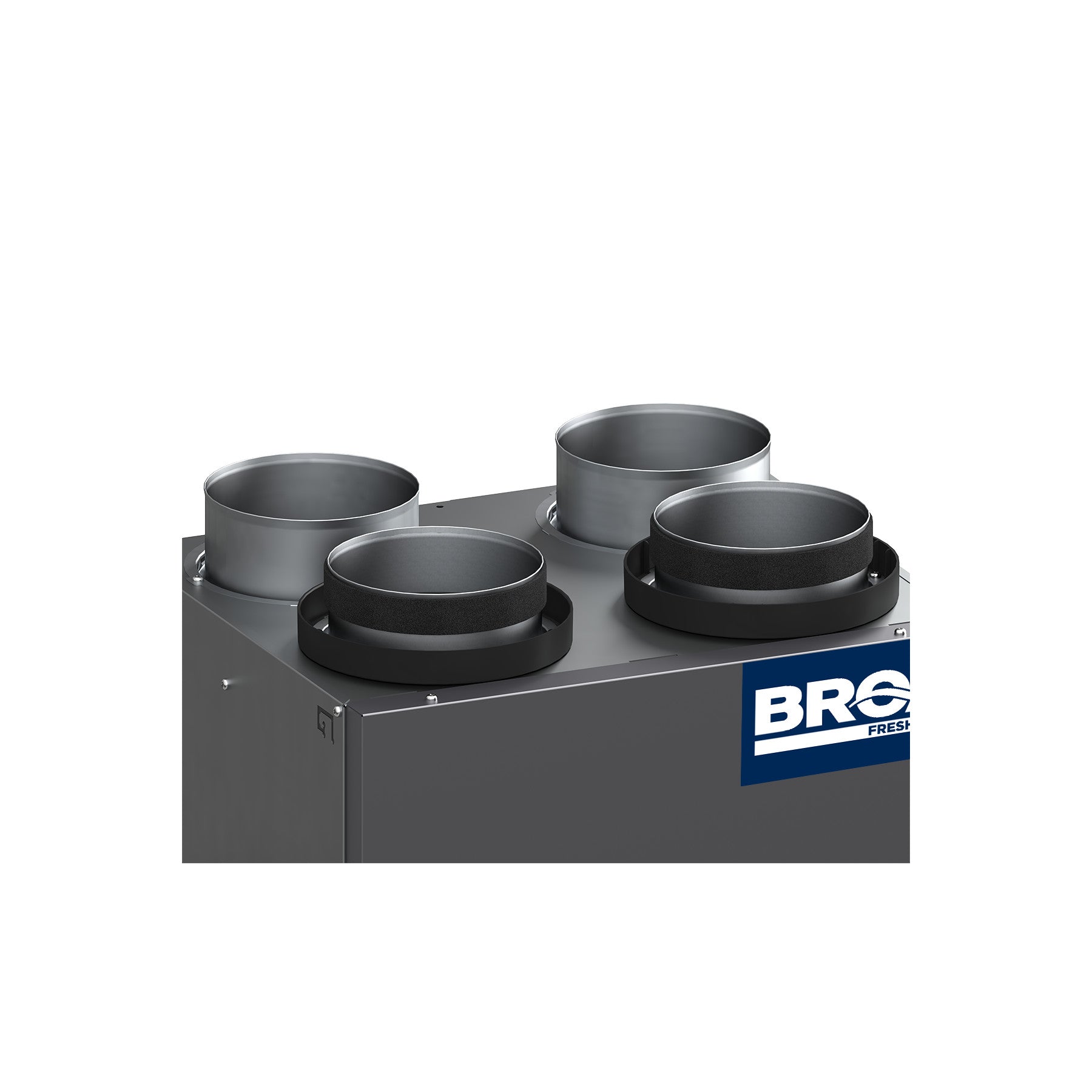

• Ports Location: Top
• Ports Size: 6" Round
• Ports Configuration: Top inlet / top ports
• Filtration: MERV 8 (standard), optional MERV 13 upgrade
• Fan Type: PMSM ECM
• Input Voltage: 120 Volts
• Amperage: 1.36 A
• Power Consumption: 163 W
• Air Flow Efficiency: 0.48 CFM per Watt
• Dimensions (H x W x L): 21.58 in x 21.07 in x 16.14 in
• Weight: 44 lb

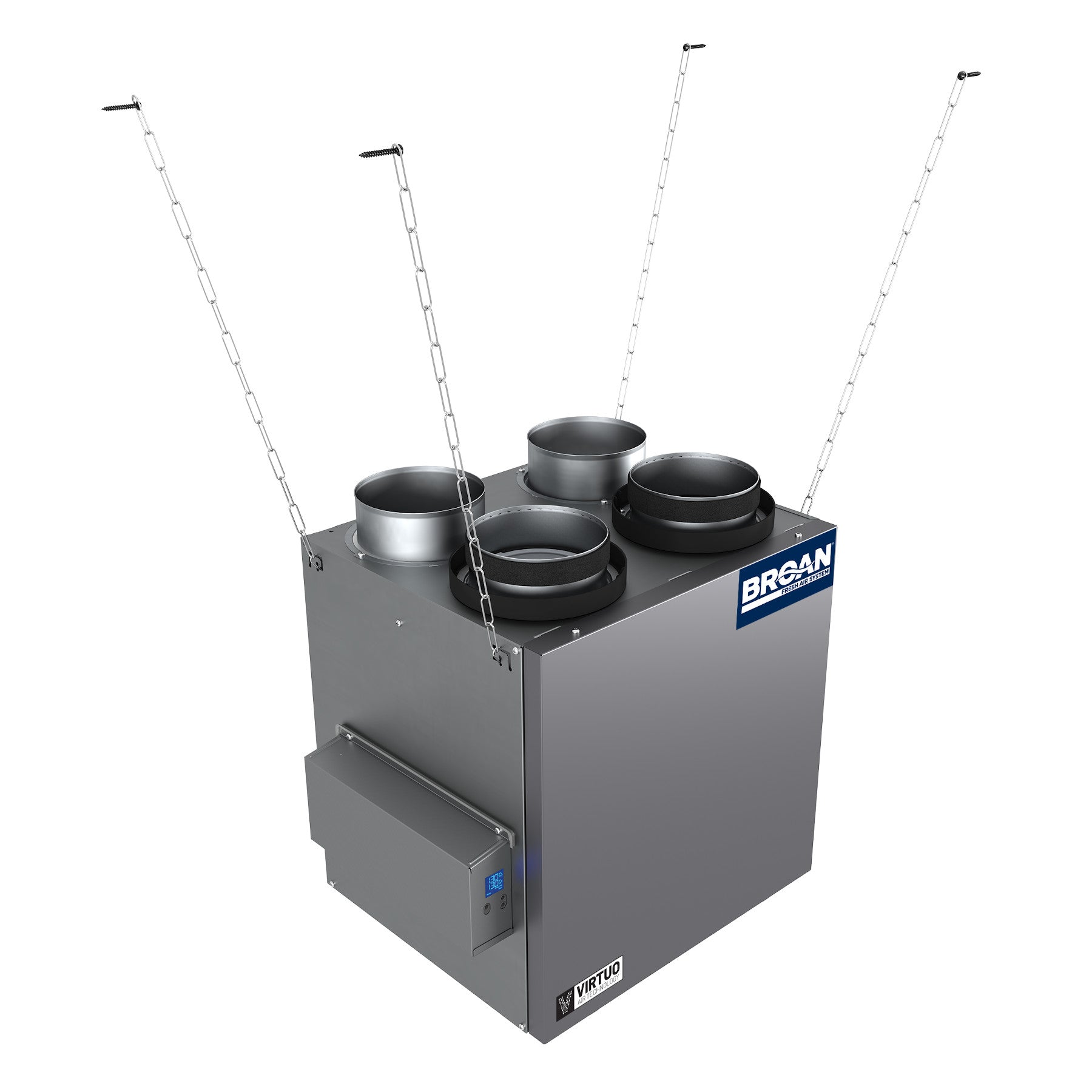

• Mounting Type: Wall or ceiling
• Certifications: HVI Certified; UL Listed; cUL Listed
• Form Factor: Wall mounted, ceiling mounted
