Product Description

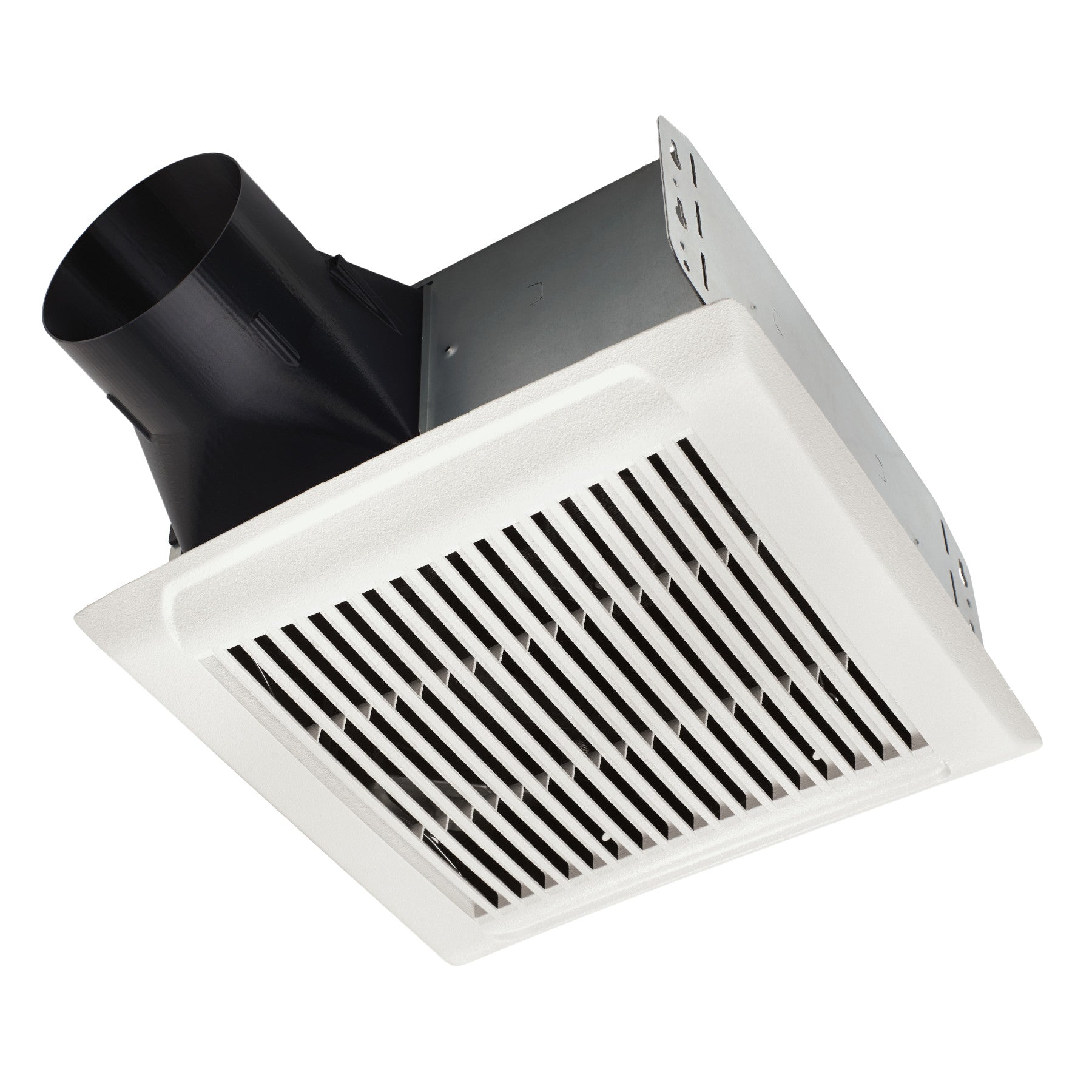

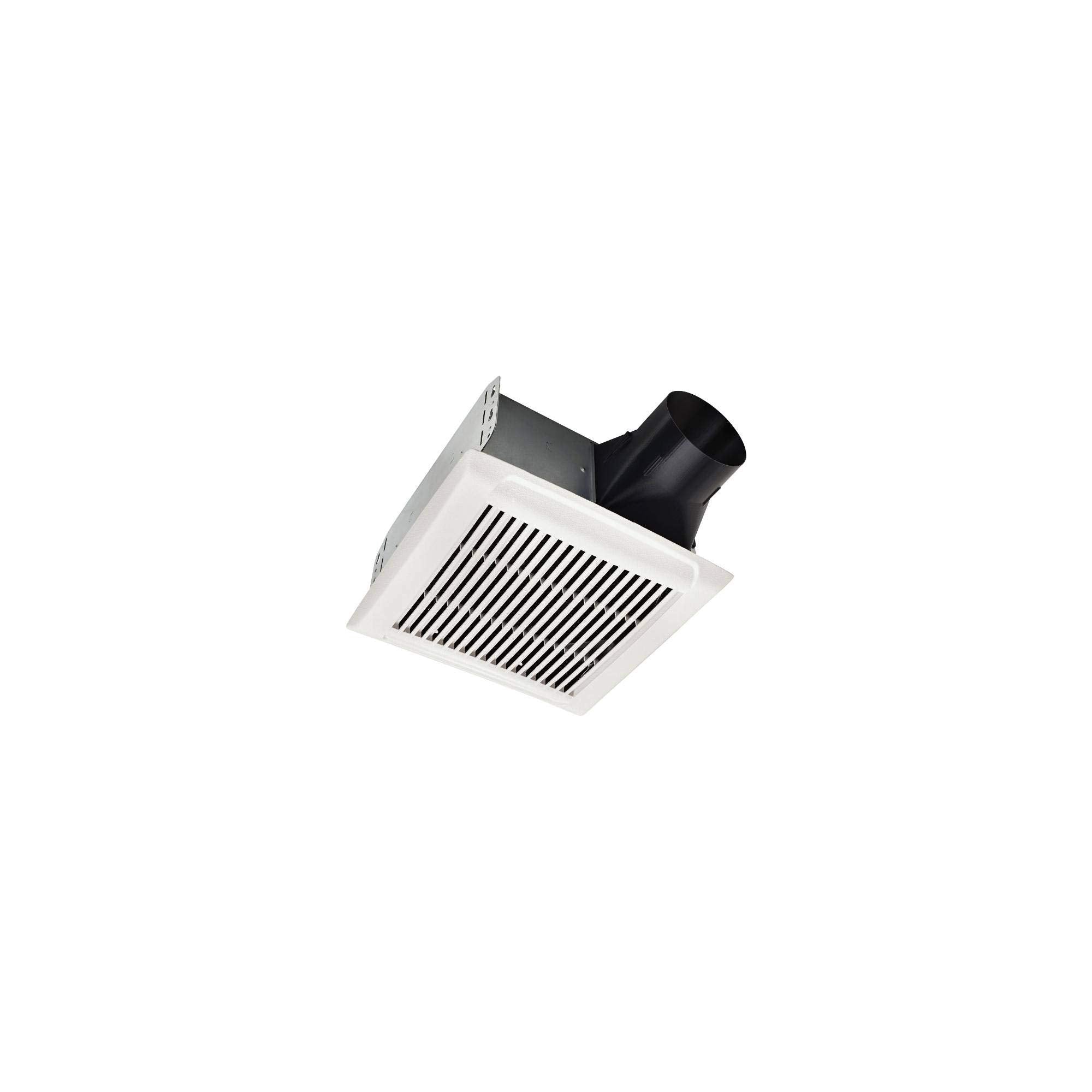

The Broan-NuTone AEN80 is an 80 CFM single-speed ceiling ventilation fan rated at 26.9 W and 120 VAC, designed for bathrooms up to 75 sq ft. It operates at 0.8 sones with a 4 in duct connection and 0.3 A current. The unit uses TrueSeal damper technology and an EzDuct connector for room-side retrofit installation, and features a galvanized steel housing with a polymeric grille. ENERGY STAR and UL listings are included.
- Airflow: 80 CFM; sound level: 0.8 sones; duct: 4 in
- Electrical: 120 VAC, 0.3 A, 26.9 W; single-speed AC motor with permanently lubricated plug-in design
- Installation: ceiling mount for retrofit or new construction; TrueSeal damper and EzDuct connector; UL listed for use over tubs/showers with GFCI
Product Highlights
Single-speed 80 CFM fan with TrueSeal damper and EzDuct room-side installation; ENERGY STAR and UL listed.
Product Information
Standard Information
-
Brand: BROAN-NUTONE
-
Manufacturer Part Number: AEN80
Technical Specifications
-
Brand: Broan-NuTone
-
Manufacturer Part Number: AEN80
-
Series: InVent / Flex Series
-
Air Flow (CFM): 80 CFM
-
Sound Level: 0.8 sones
-
Input Voltage: 120 VAC
-
Current: 0.3 A
-
Power Consumption: 26.9 W
-
Duct Diameter: 4 in
-
Speed: Single speed
-
Mounting Type: Ceiling (retrofit or new-construction)
-
Recommended Room Size: Up to 75 sq ft
-
Housing Material: Galvanized steel
-
Grille Material: Polymeric
-

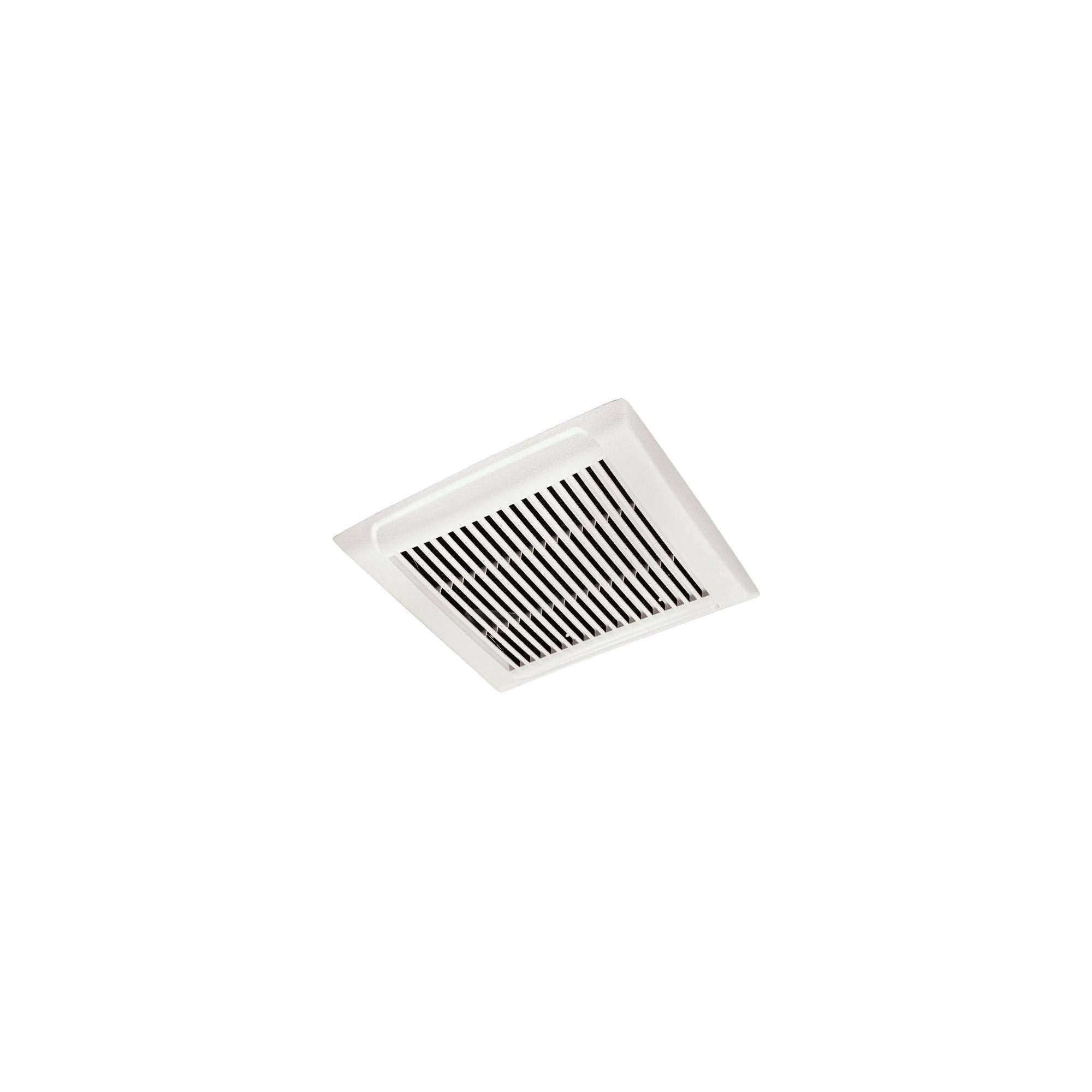

Grille Dimensions: 12 in (W) x 11-1/4 in (L)
-
Housing Dimensions: 10 in (W) x 9-1/4 in (L) x 5-3/4 in (H)
-
Motor: Plug-in permanently lubricated AC motor
-

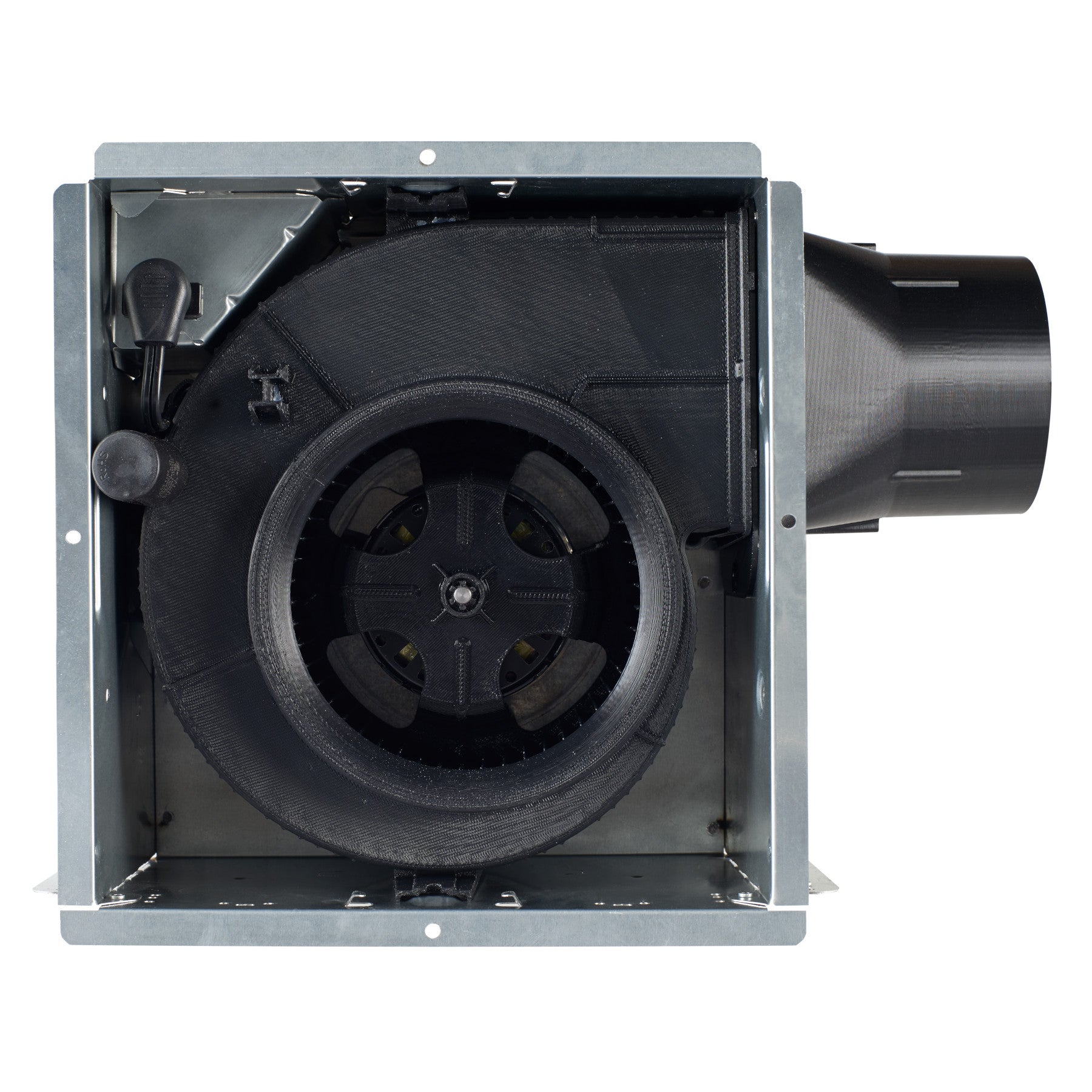

Blower: Dynamically balanced centrifugal blower wheel
-

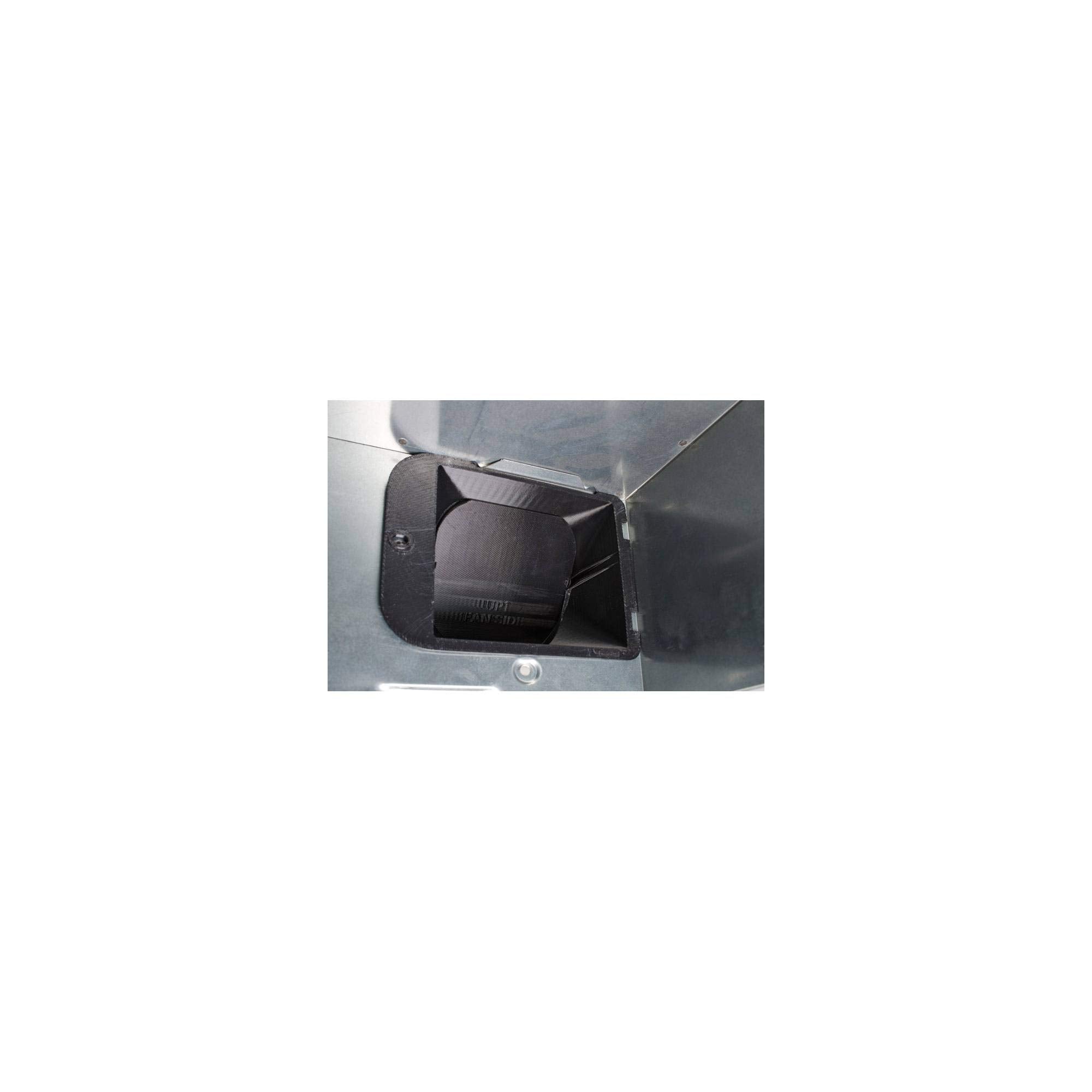

Damper Technology: TrueSeal damper (reduces air leakage up to 50%)
-
Connector: EzDuct connector for room-side duct connection
-
Certifications: ENERGY STAR; UL listed for use over tubs and showers when connected to a GFCI circuit; HVI Certified; cULus Listed
-
Mounting Notes: Foldable mounting ears; suitable for ceilings up to 7/12 pitch; 5-3/4 in housing height allows 2 x 6 in ceiling installations
-
UPC: 02671523528
-
Replacement Model: AE80K
