Broan-Nutone AE80B Ventilation Fan 80 CFM

Product Description

The Broan-Nutone AE80B ventilation fan is designed for easy installation with its Flex Series mounting system. This ceiling-mounted fan features foldable mounting ears and an EzDuct connector for straightforward setup. The innovative duct damper technology ensures a tight seal to reduce the backdraft of warm and cold air. Operating at eighty cubic feet per minute (CFM) with a quiet level of zero point seven sones, this fan is a reliable choice for improving indoor air quality.

• Energy Star certified for efficient operation
• UL Listed for installation above tubs or showers
• Room side installation requiring no access to the attic

Product Highlights

The Broan-Nutone AE80B offers reliable ventilation for bathrooms, ensuring improved air quality while being discreet. Its installation versatility and efficient design make it suitable for various applications.

Product Information

Standard Information

• Brand: Broan-NuTone
• Model Name: AE80B

Technical Specifications

• CFM: 80
• Sound Level (Sones): 0.7
• Duct Size: 4 in
• Grille Length: 11.5 in
• Grille Width: 12 in

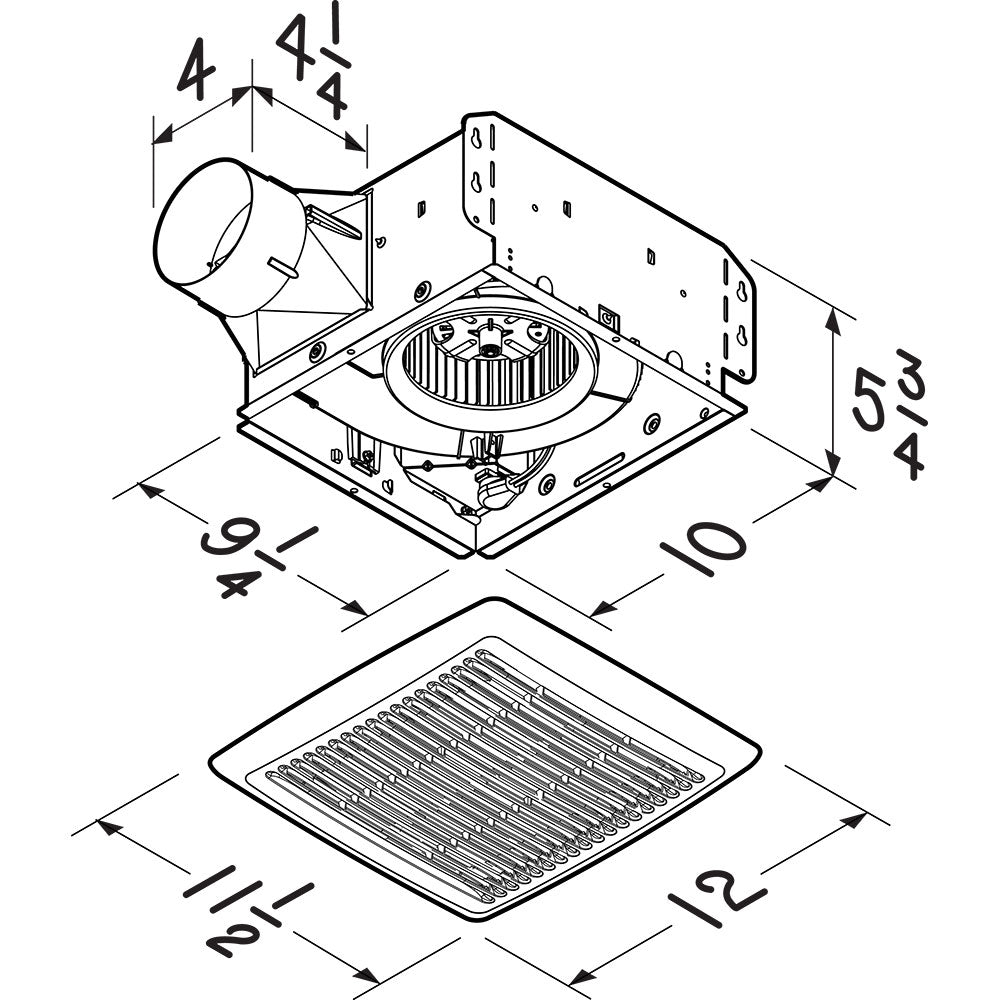

• Housing Dimensions: 9-1/4 in x 10 in x 5-3/4 in
• Voltage: 120 VAC
• Rated Amps: 0.3 A
• Wattage: 24.7 watts
• Motor Engineered For Continuous Operation: Yes
• Manufacturer Warranty: 3 Years
• Weight: 8 lbs
• Finish Type: White
• Indoor/Outdoor Usage: Indoor
