BROAN-NUTONE AE5011DC Flex DC Series Exhaust Bath Fan

Product Description

The BROAN-NUTONE AE5011DC Flex DC Series Exhaust Bath Fan is designed for ceiling-mounted installation, allowing for room-side setup without requiring attic access. This fan comes equipped with foldable mounting ears and an EZ Duct connector for easy installation.

• Ceiling mounted ventilation fan.
• Features a selectable CFM range of 50 to 110.
• Permanently lubricated motor for continuous operation.

Product Highlights

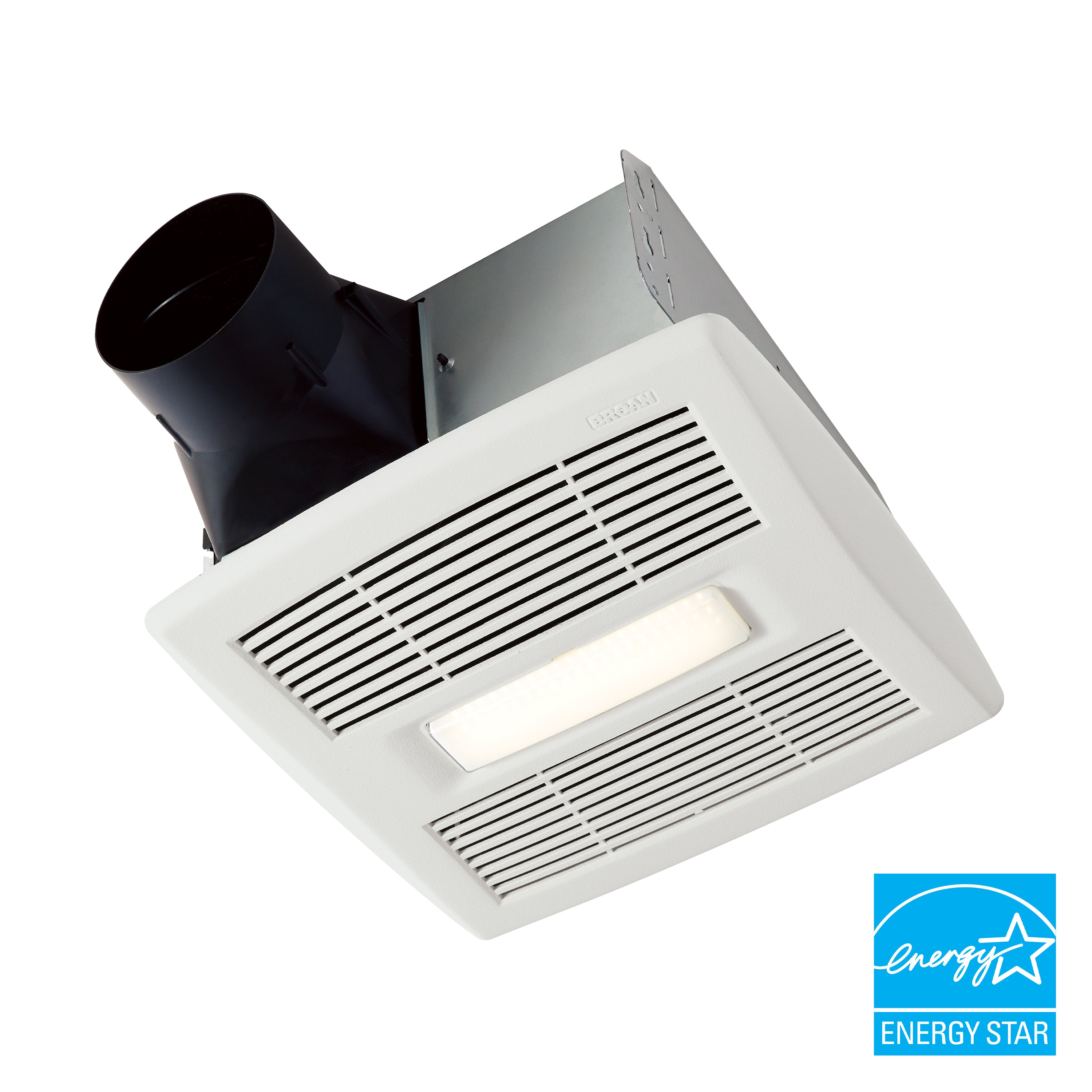

The fan incorporates duct damper technology, effectively reducing air leakage and preventing backdrafts. It is engineered for continuous use, supporting various room sizes up to 105 square feet. An integrated LED module may be included in select models, enhancing energy efficiency.

Product Information

Standard Information

• Brand: BROAN-NUTONE
• MPN: AE5011DC

Technical Specifications

• CFM: 50-80-110
• Duct Size: 4 inches
• ENERGY STAR Certified: Yes
• Grille Length: 11.5 inches
• Grille Width: 12 inches

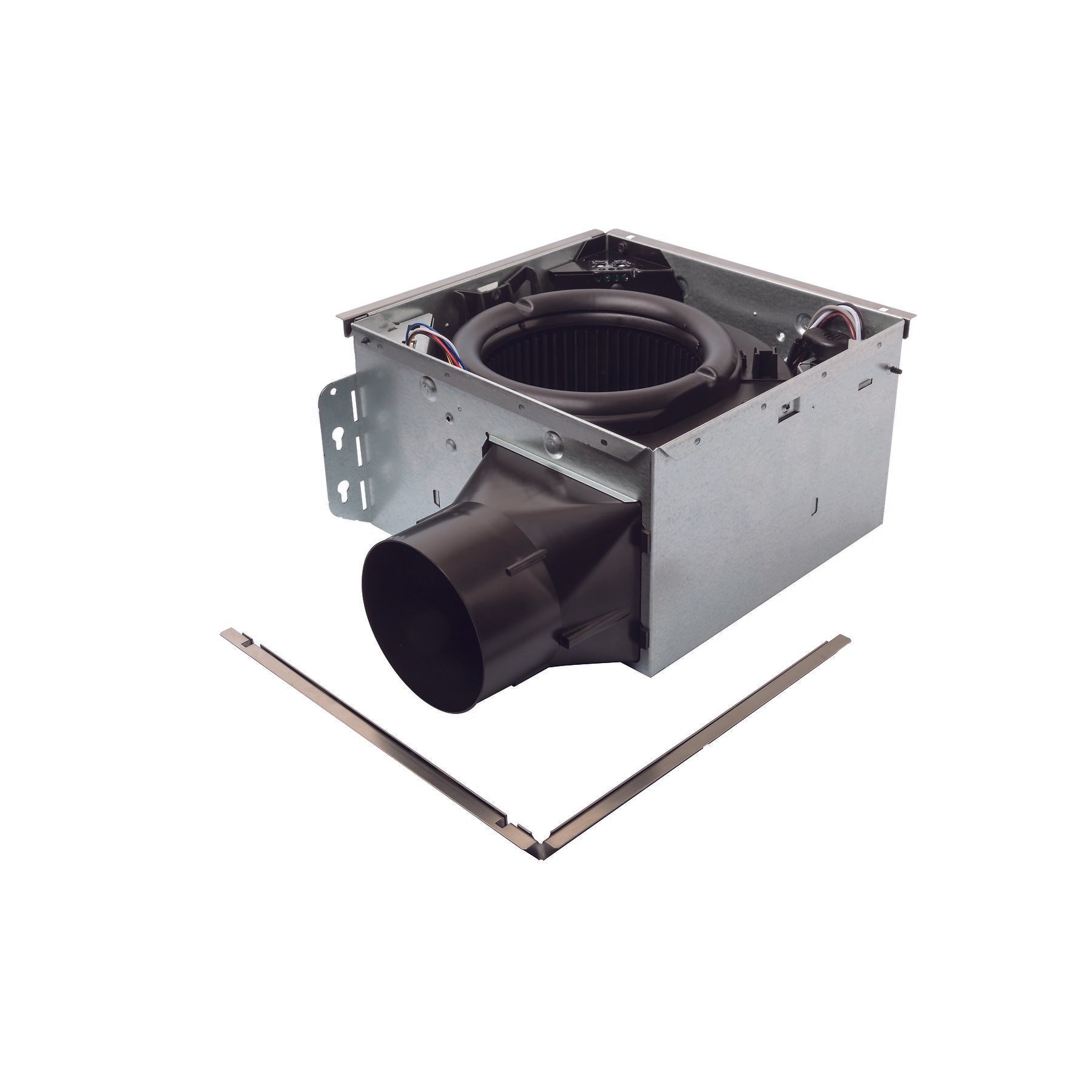

• Housing Dimensions: 9-1/4 x 10 x 5-3/4 inches
• Sound Level (Sones): 0
• UL Listed: Yes
• Grille Finish: White
• Room Side Installation: Yes
• Manufacturer Warranty: 3 Years
• Input Voltage: 120
