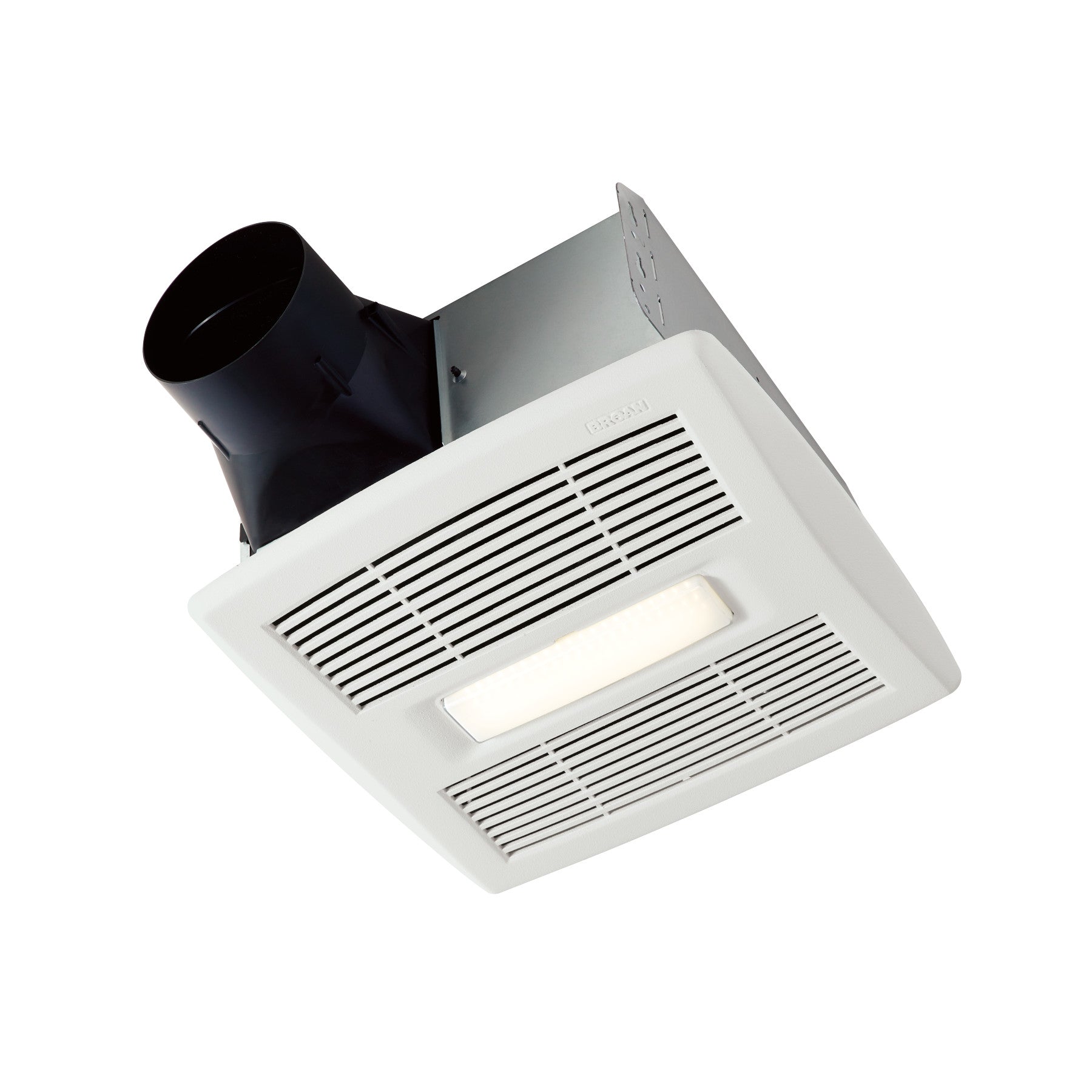

Broan-nutone ae110sl 110 Cfm Humidity Sensing Ventilation Fan Light

Product Description

The BROAN-NUTONE ae110sl is a ceiling-mounted ventilation fan with integrated LED lighting and built-in humidity sensing, designed for residential bathroom exhaust applications. It moves 110 CFM of air at an ultra-quiet 1.0 sones, making it suitable for most full bathrooms where noise and moisture control are both a concern. The integrated 3000K LED fixture provides energy-efficient illumination without requiring a separate light installation. Humidity sensing technology detects moisture conditions and activates the fan automatically, helping reduce the risk of mold and mildew accumulation over time. This unit carries an Energy Star rating, confirming it meets federal efficiency standards for ventilation equipment.

This fan is intended for residential bathroom ventilation in new construction and retrofit applications. The room-side installation design eliminates the need for attic access during retrofit jobs, which significantly reduces labor time on replacement projects. Foldable mounting ears accommodate both new-construction framing and room-side swap-outs in existing ceilings. The integrated duct connector can also be positioned from the room side, making the ae110sl a practical choice for finished spaces where overhead access is limited or unavailable.

Key Features

• 110 CFM airflow rated for most full bathrooms
• 1.0 sones for near-silent operation during continuous ventilation
• Built-in humidity sensor activates fan automatically when moisture levels rise
• 3000K energy-efficient LED lighting integrated into the unit
• Retrofit-friendly design: full installation achievable from the room side with no attic access
• TrueSeal damper technology reduces air leakage by up to 50 percent
• Foldable mounting ears support both new construction and replacement ceiling installs

Compatibility

Designed as an OEM-style replacement or new-construction fit for residential bathroom ceiling ventilation applications requiring a combination exhaust fan and light fixture.

Installation Notes

Installation is typically performed by a licensed electrician or qualified contractor in accordance with NEC requirements for bathroom exhaust equipment. Shut off the circuit breaker supplying power to the installation location before beginning any wiring work. Confirm the duct path and termination point meet local mechanical code requirements for exhaust ventilation. Do not operate the unit without a properly connected duct run, as recirculating humid air without exhaust will reduce effectiveness and may void the Energy Star rating.

Technical Specifications

• Airflow: 110 CFM
• Sound Rating: 1.0 sones
• Light Color Temperature: 3000K
• Certification: Energy Star
• Air Leakage Reduction: Up to 50 percent with TrueSeal damper

Standard Information

• Brand: BROAN-NUTONE
• Manufacturer Part Number: ae110sl
