Product Description

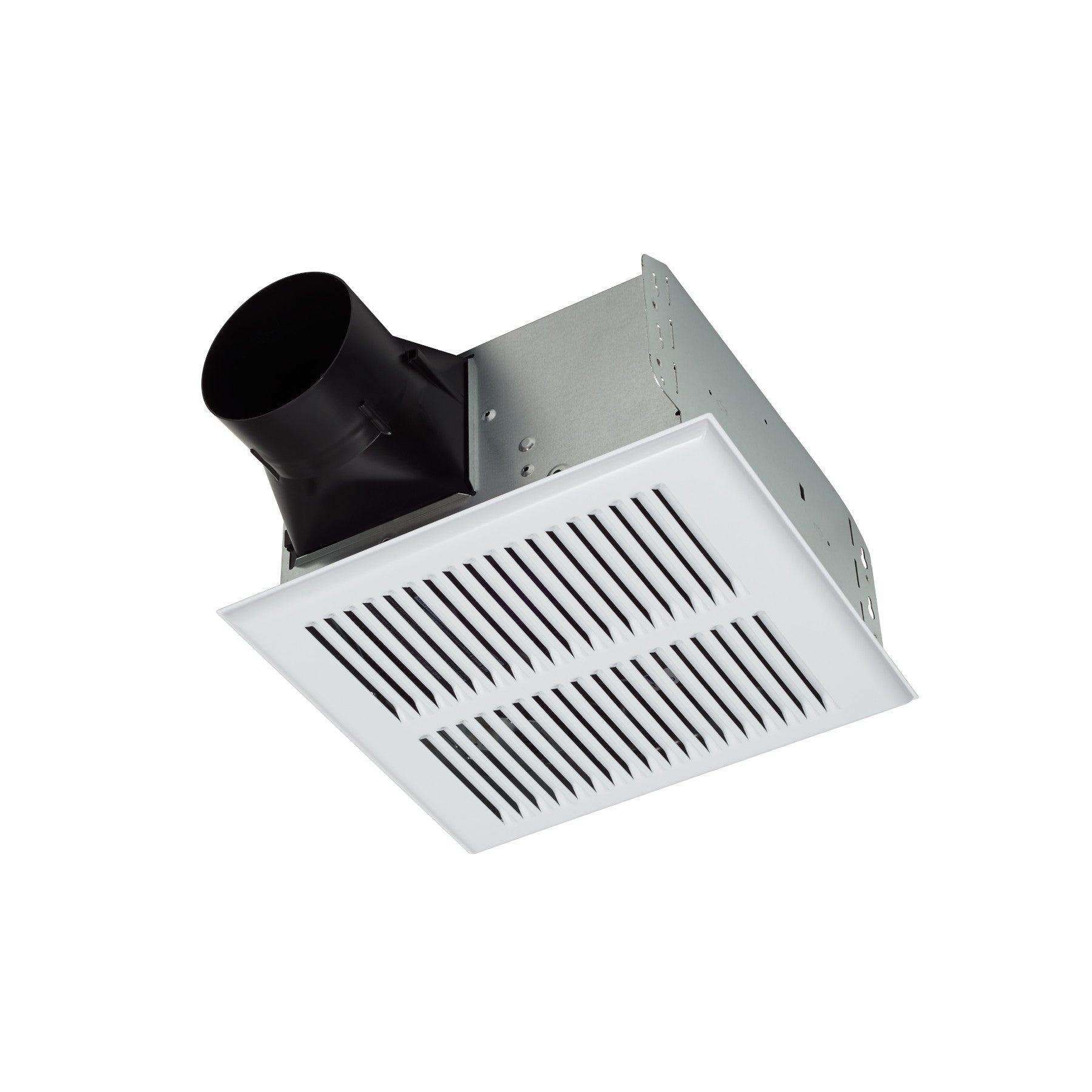

The Broan-NuTone A80HDF Metal Finish Pack is an 80 CFM ventilation fan. Designed for use with Broan A000HF fan Housing Packs to complete the installation. Innovations include foldable mounting ears and new damper and housing technology that improve building airtightness. The fan features a powerful motor that delivers 80 CFM of airflow.
- 80 CFM reduces humidity to quickly eliminate fogged mirrors and manage moisture in bathrooms up to 75 square feet
- TrueSeal Damper technology reduces air leakage up to 50% compared to competitive models
- EzDuct connector can be installed room-side with no attic access required
Product Highlights
The Broan-NuTone A80HDF ventilation fan is easy to install and maintain. The fan mounts directly to a ceiling or wall, and the included hardware makes installation quick and easy.
Product Information
Standard Information
-
Brand: BROAN-NUTONE
-
Manufacturer Part Number: A80HDF
Technical Specifications
-
Duct Size: 4"
-
Air Flow Capacity (CFM): 80
-
Sone: 2.0
-
Product Type: Ventilation Fan
-
Voltage: 120v
-
Amperage: 0.37
-

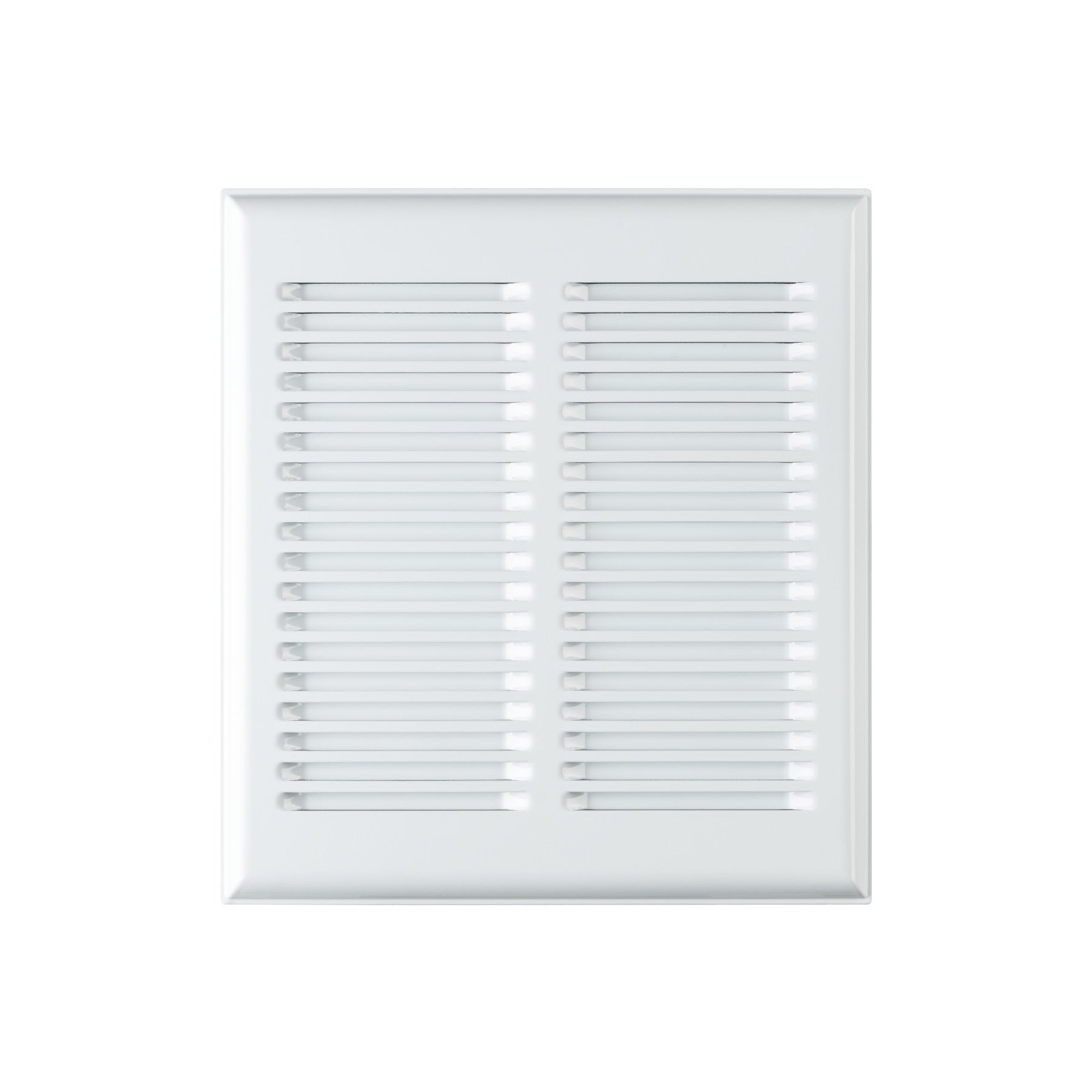

Grille Material: Metal
-
Grille Finish: White
-
Rated Amps: 0.4
-
ENERGY STAR certified: No
-
Grille Length: 11
-
Grille Width: 12
-
UL Listed: Yes
-
Humidity Sensing: No
-
Motion Sensing: No
-
Motor Engineered For Continuous Operation: Yes
-
Night Light: No
-
Radiation Damper Available: Yes
-
Room Side Installation: Yes
-
UL Listed for use over bathtubs or showers when connected to a GFCI circuit: Yes
-
Heater Wattage: 0
-
Recommended Room Size (Sq Ft): 75
-
Can Be Used To Comply With Title 24: No
-
Minimum Construction Space Required: 2" x 6"
-
High Efficiency Luminaire: No
-
Minimum Recommended Flow: 0
-
Item Number: A80HDF
-
Brand: BROAN-NuTone
