Broan-Nutone 99080362 Electric Motor 4.0 Amps Replacement GE WB26X5099

Product Description

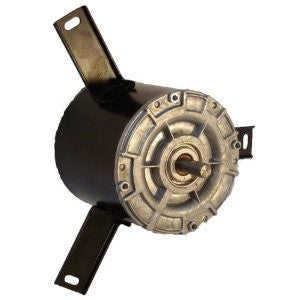

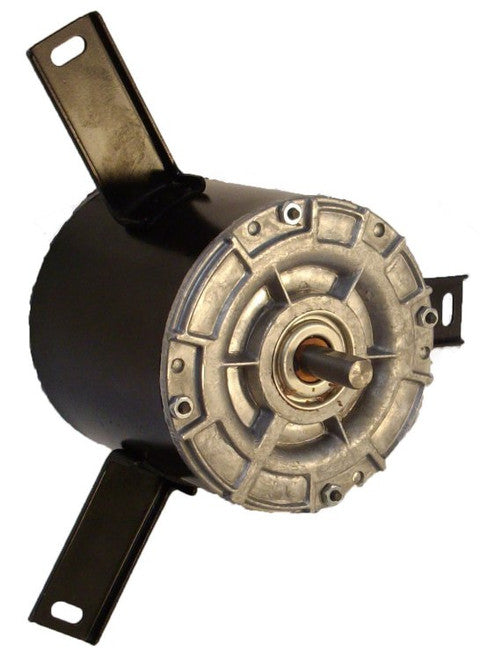

The BROAN-NUTONE 99080362 Electric Motor is a slimline motor with capacitor, operating at 120 Volts and 60 Hz with 4.0 Amps. It features a 5-inch diameter and a shaft size of 1/2 inch x 1 1/8 inches. The motor includes three mount tabs extending out 3 1/4 inches overall, 1 15/16 inches wide with a special plug.

• Operates at 120 Volts and 60 Hz
• Features a 5-inch diameter motor
• Includes a capacitor of 7.5 MFD370VAC

Product Highlights

The BROAN-NUTONE 99080362 electric motor is suitable for various applications, including vent fan and range hood replacements. It is designed for durability and efficient performance.

Product Information

Standard Information

• Brand: BROAN-NUTONE
• Manufacturer Part Number: 99080362

Technical Specifications

• Amps: 4.0
• Volts: 120
• Hz: 60
• Diameter: 5 Inch
• Shaft Size: 1/2 inch x 1 1/8 inches
• Capacitor: 7.5 MFD370VAC
• Mount Tabs: Three Mount Tabs Extend out 3 1/4 inches Overall, 1 15/16 inches Wide
• Cross Reference: GE WB26X5099, DE2J056N, 2730, 2736, DE2J056
• Width: 6.00 (in)
• Height: 6.00 (in)
• Depth: 6.00 (in)
• Rotation: CW
• RPM: 1750
• Motor Case Length: 4 7/8"
