BROAN-NUTONE 99-08-0667 Vent Fan Motor 120V 1 Pack

Product Description

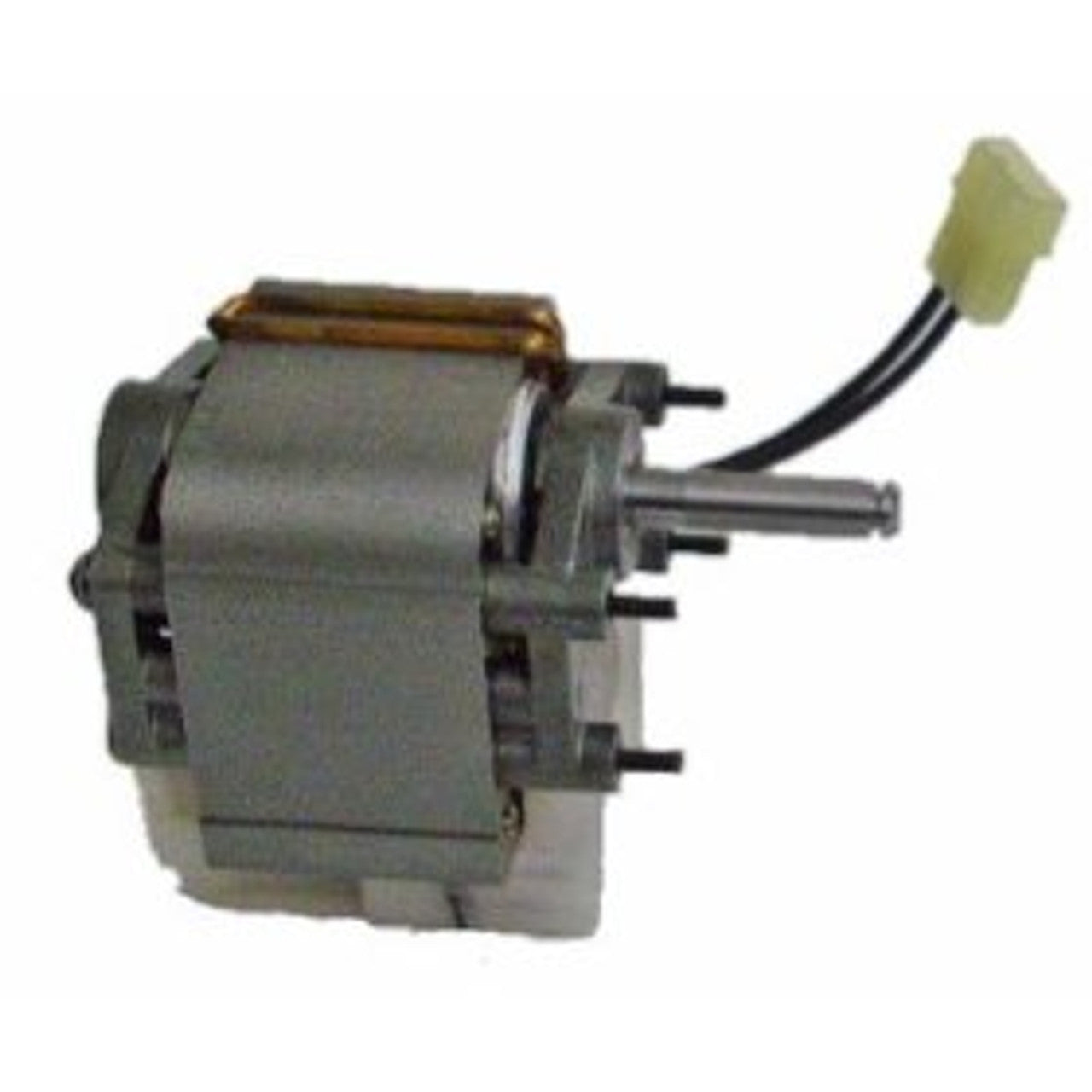

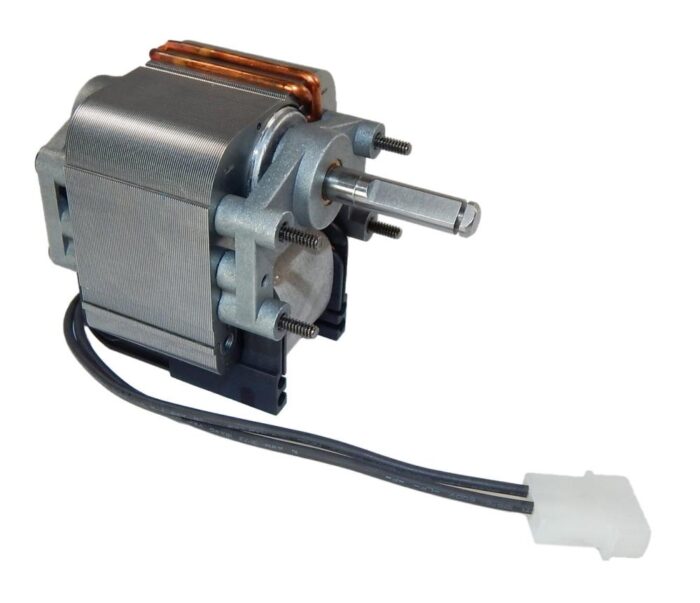

The BROAN-NUTONE 99-08-0667 is a vent fan motor designed for ventilation systems. It operates at 120V and 60 Hz, drawing 1.9 Amps. This motor rotates counter-clockwise at a speed of 3000 RPM. It includes thermal protection and features two black wires with an end connector. The shaft measures five sixteenths of an inch in diameter and one and five sixteenths inches in length.

• Operates at 120V and 60 Hz.
• Features CCW rotation at 3000 RPM.
• Includes shaft with five sixteenths diameter and one and five sixteenths length.

Product Highlights

This motor is ideal for those looking to replace their ventilation fan motor in Broan-Nutone products, ensuring reliable performance and longevity.

Product Information

Standard Information

• Brand: BROAN-NUTONE
• MPN: 99-08-0667

Technical Specifications

• Input Voltage: 120 Volt
• Frequency: 60 Hz
• Input Current: 1.9 Amp
• Rotation: CCW Rotation
• Speed: 3000 RPM
• Thermal Protection: Thermally Protected L, Class B
• Wiring: Two Black Wires with End Connector
• Shaft Diameter: 5/16 Diameter with Flat Side
• Shaft Length: 1-5/16
• Motor Type: OEM Vent Fan Motor
• Compatibility: Designed for Broan-Nutone products
