Broan-Nutone 99-08-0273 Replacement 3.3 inches Dia. Fan Motor 0.39 Amp 1500 RPM

Product Description

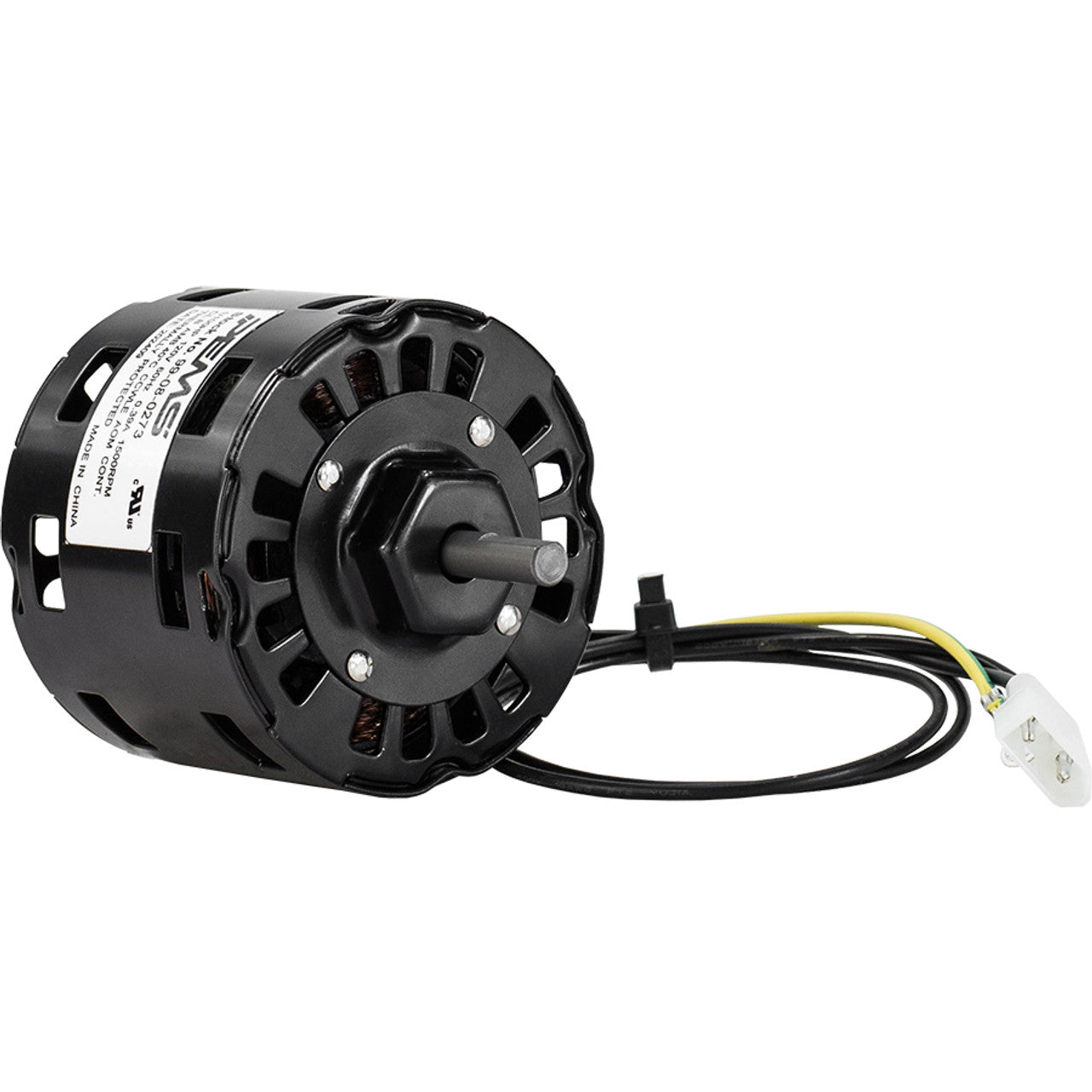

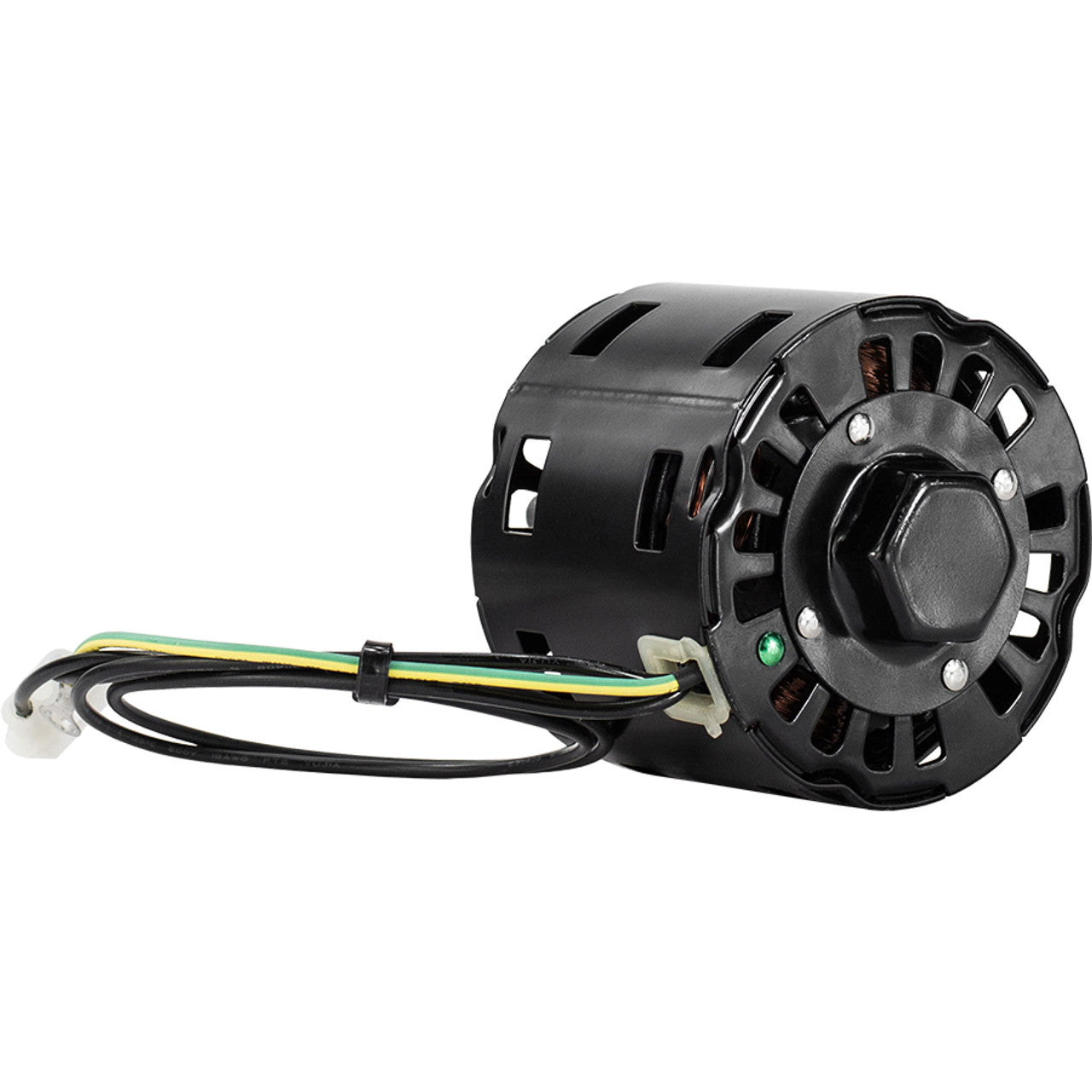

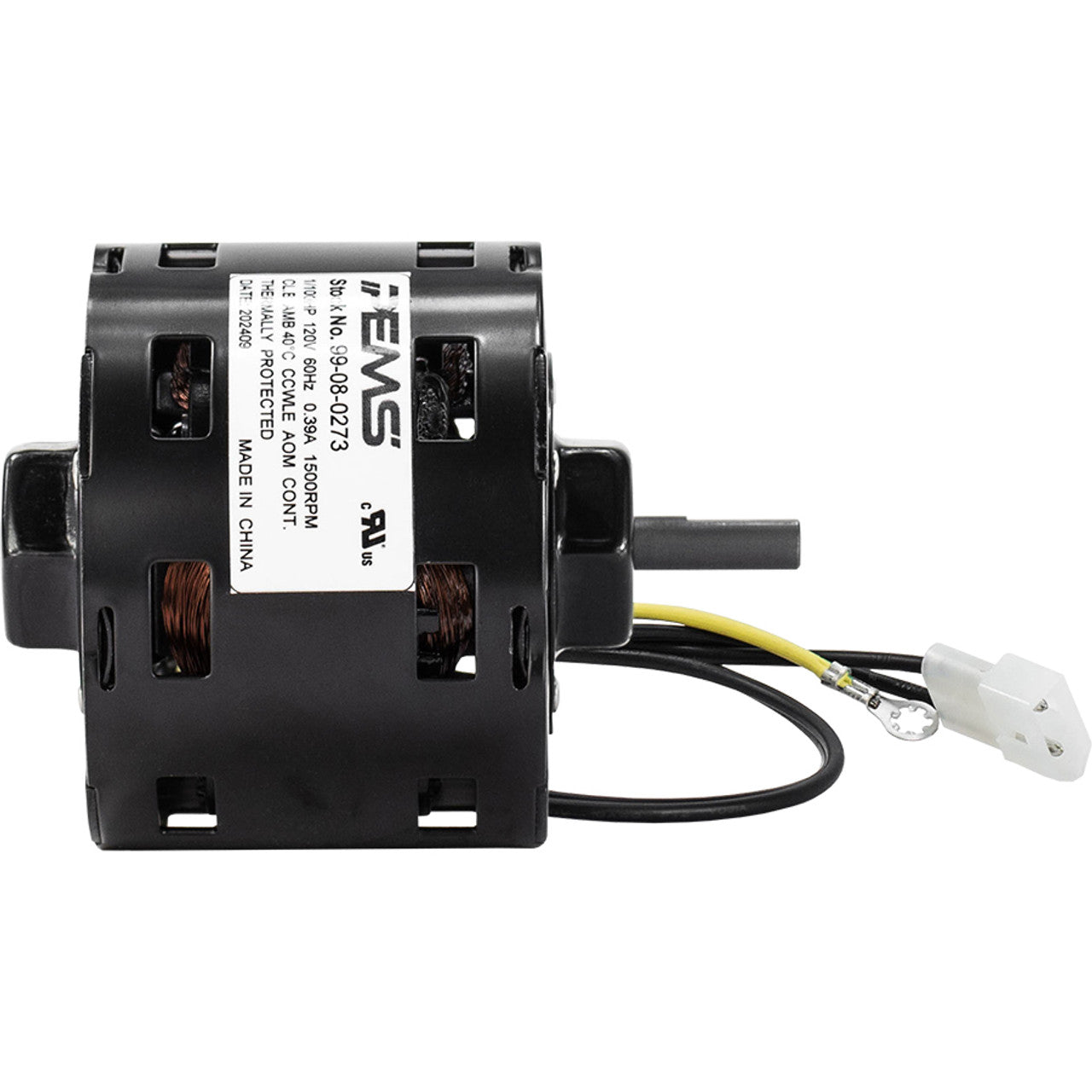

The BROAN-NUTONE 99-08-0273 is a replacement fan motor with a 3.3" diameter, operating at 0.39 Amp and 1500 RPM. This 120V, 60 Hz motor is thermally protected and features a CW rotation when viewing the shaft end. It includes three wires: two black and one green ground wire. Designed with a shaft size of 5/16" Dia. x 7/8" Long with Flat.

• Replacement fan motor
• 3.3" diameter
• 0.39 Amp

Product Highlights

This BROAN-NUTONE fan motor is designed to replace motors in Broan Units HS90, MS90, and S90.

Product Information

Standard Information

• Brand: BROAN-NUTONE
• Manufacturer Part Number: 99-08-0273

Technical Specifications

• Voltage: 120V
• Amps: 0.39 amps
• Frequency: 60hz
• RPM: 1500 RPM
• Motor Diameter: 3.3"
• Rotation: CW Shaft End
• Shaft Size: 5/16" x 7/8"
• Motor Case Length: 2.5"
• Leads: 12" Leads with Plastic Connector Plug
