Broan-Nutone 99-08-0176 Fan Motor 1.5 Amp, 120Volts

Product Description

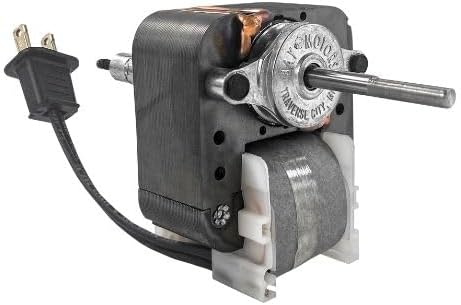

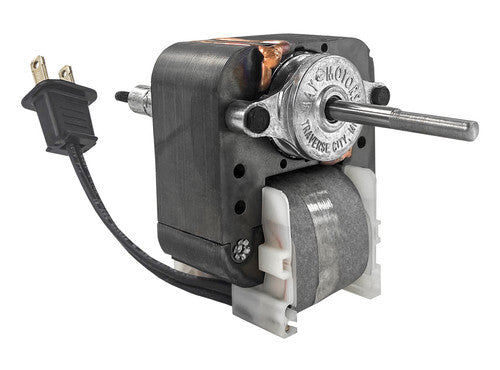

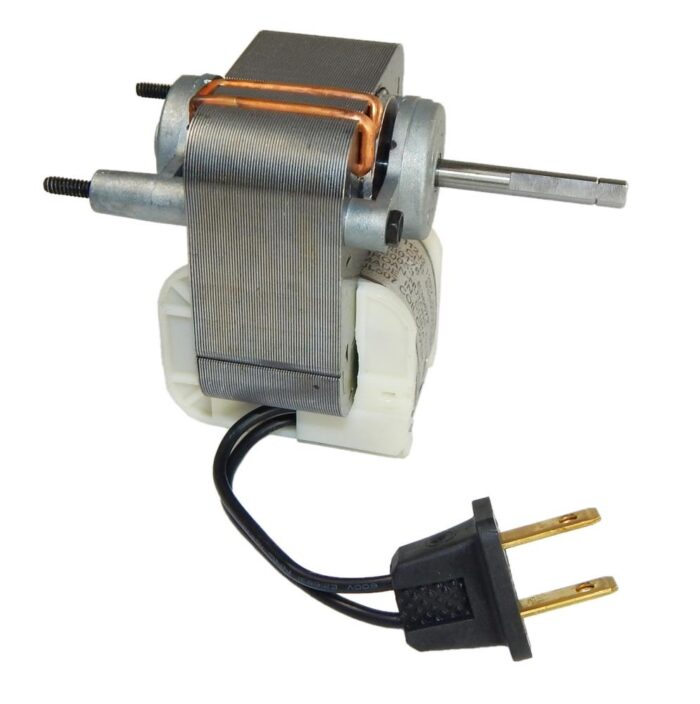

The BROAN-NUTONE 99-08-0176 fan motor is a direct OEM aftermarket replacement compatible with Broan S99080176. Operating at 120 Volts and 60Hz, this motor is designed for optimal performance in Broan Nutone ventilation systems. It fits Broan units 505MG, 507MG, 503-A, 505-A, 505-B, 507-A, 507-B, and 507-C.

• Direct OEM Aftermarket Replacement
• Easy to install
• 1.5 Amp, 1 1/8" stack, 120 Volts, 60Hz

Product Highlights

This ventilation motor ensures proper airflow and reliability for Broan Nutone systems. It features a 7/32" Dia. x 1-3/8" Long shaft with a flat and a CW shaft end rotation.

Product Information

Standard Information

• Brand: BROAN-NUTONE
• Manufacturer Part Number: 99-08-0176
• Country of Origin: USA

Technical Specifications

• Brand: CSH
• Input Voltage: 120 Volts
• Frequency: 60 Hz
• Output Current: 1.5 Amps
• Motor Style: C-Frame
• Shaft: 7/32" x 1-3/8"
• Rotation: CW Shaft End
• Stack: 1 1/8"
• Fits Broan Units: 505MG, 507MG, 503-A, 505-A, 505-B, 507-A, 507-B, 507-C
• Shaft Diameter: 7/32 Inches with a flat
• Shaft Length: 1-3/8 Inches
• Shaft_Diameter: 0.218
• Shaft_Length: 1.375
• Shaft_Type: Single
