Broan-Nutone 97009316 Attic Fan Motor 3.4 amps REPLACEMENT S97009316

Product Description

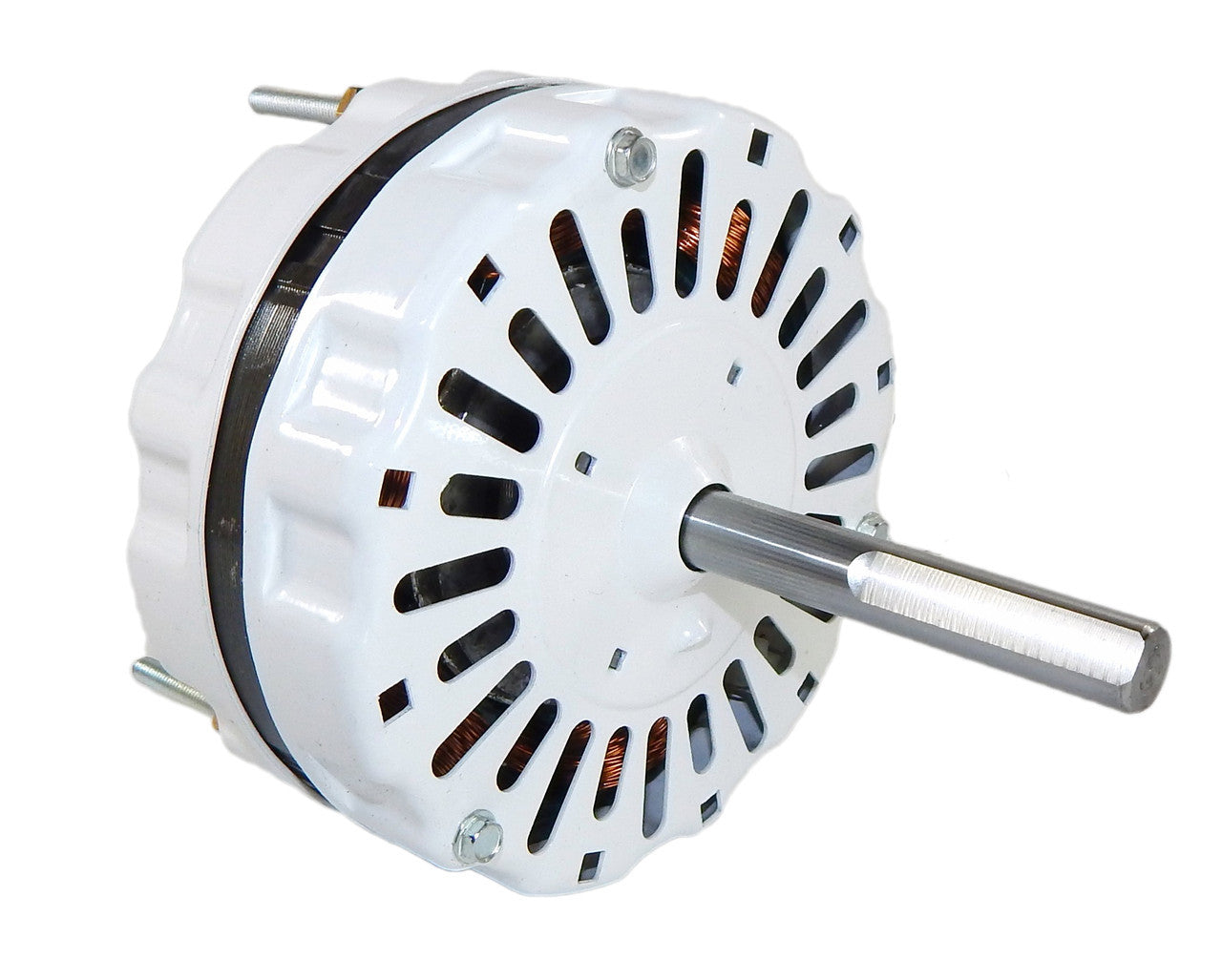

The BROAN-NUTONE 97009316 is a direct replacement motor for Broan models 340, 343, 350, and 353 attic fans. This motor operates at 120V and 60 Hz, delivering 3.4 amps and 1160 RPM. It features a 5-inch diameter and a clockwise shaft end rotation. The motor is manufactured by McMillian and made in the USA.

• Direct replacement for Broan 97009316
• Manufactured by McMillian
• Made in USA

Product Highlights

Direct replacement motor for Broan attic fans. Operates at 120V, 3.4 amps, and 1160 RPM. Features a 5" diameter and clockwise shaft rotation.

Product Information

Standard Information

• Brand: BROAN-NUTONE
• Manufacturer Part Number: 97009316
• Country of Origin: USA

Technical Specifications

• SKU: PD9316
• Volts: 120
• Hertz: 60
• Amps: 3.4
• RPM: 1160
• Diameter: 5 inch
• Rotation: Clockwise Shaft End
• Shaft: 1/2" x 2 3/4" with flat
• Motor Length: 2 1/4" less shaft

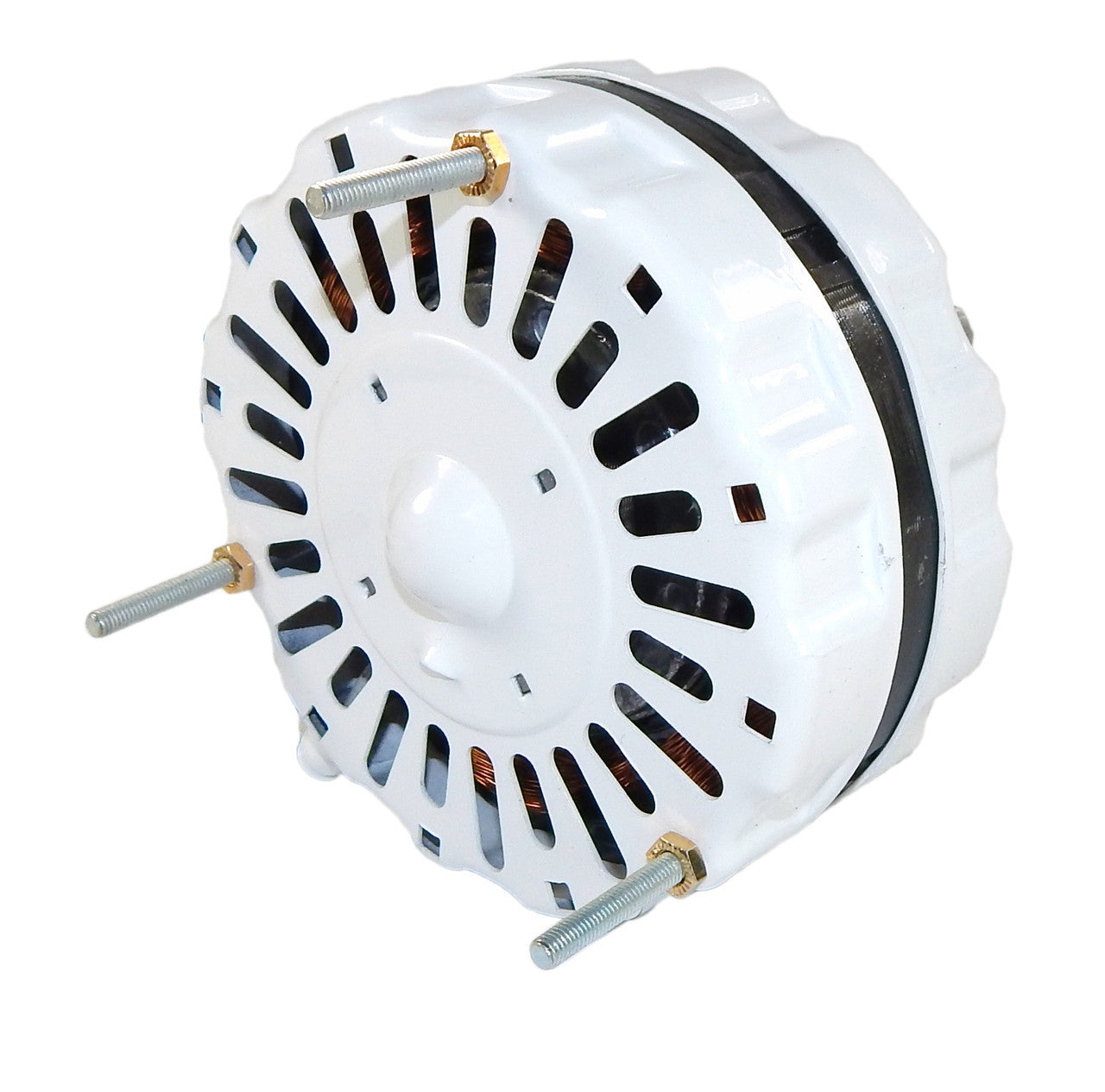

• Mounting: 3 mounting studs on back, 4" on center
• Insulation Class: 130 (B)
• Thermal Protection: Thermally Protected L
• Wires: (2) Black & White
• Shaft Diameter: 1/2 in
• No-Load RPM: 1160 RPM
