BROAN-NUTONE 97-01-7706 Blower Assembly

Product Description

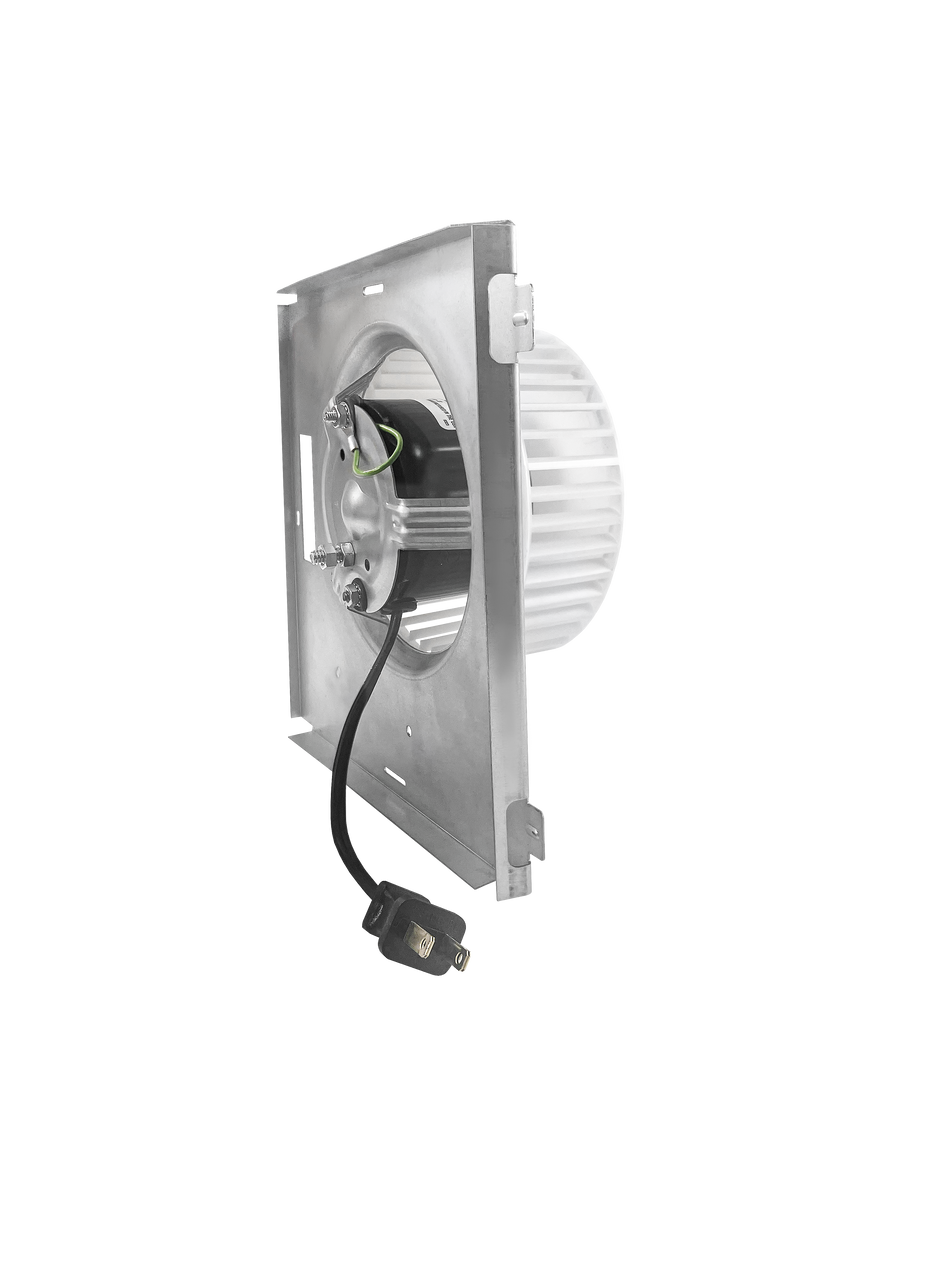

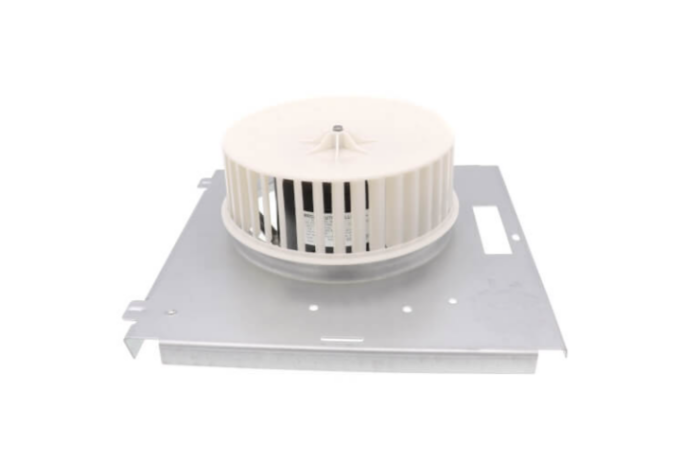

The BROAN-NUTONE 97-01-7706 blower assembly includes a motor, blower wheel, and mounting bracket. The motor operates at a voltage of one hundred fifteen to one hundred twenty volts and a speed of one thousand five hundred thirty-four RPM. The blower wheel has a diameter of five and three-quarter inches and a width of two inches with a one-fourth inch bore. The mounting bracket measures nine inches by nine inches. This assembly is designed as a replacement part for specific Nutone vent fan models.

• Includes motor, blower wheel, and mounting bracket.
• Motor operates at one hundred fifteen to one hundred twenty volts and one thousand five hundred thirty-four RPM.
• Designed as a replacement part for specified Nutone vent fans.

Product Highlights

This blower assembly enhances air movement in Nutone models and ensures optimal performance.

Product Information

Standard Information

• Brand: Broan-NuTone
• MPN: 97-01-7706

Technical Specifications

• Model Name: S97017706
• Input Voltage: 120 Volts
• Power Consumption: 100 Watts
• Motor Speed: 1534 RPM
• Motor Diameter: 3.3 inches
• Shaft Dimensions: 1/4 inches diameter x 1 inch long
• Rotation: CCW facing shaft end
• Motor Case Length: 1 15/16 inches
• Blower Wheel Diameter: 5 3/4 inches
• Blower Wheel Width: 2 inches
• Blower Wheel Bore: 1/4 inches
• Mounting Bracket Dimensions: 9 x 9 inches
• Item Dimensions (LxWxH): 9 x 9 x 6 inches
• Item Weight: 3 pounds
