Broan-Nutone 97-01-7705 Blower Assembly Replacement

Product Description

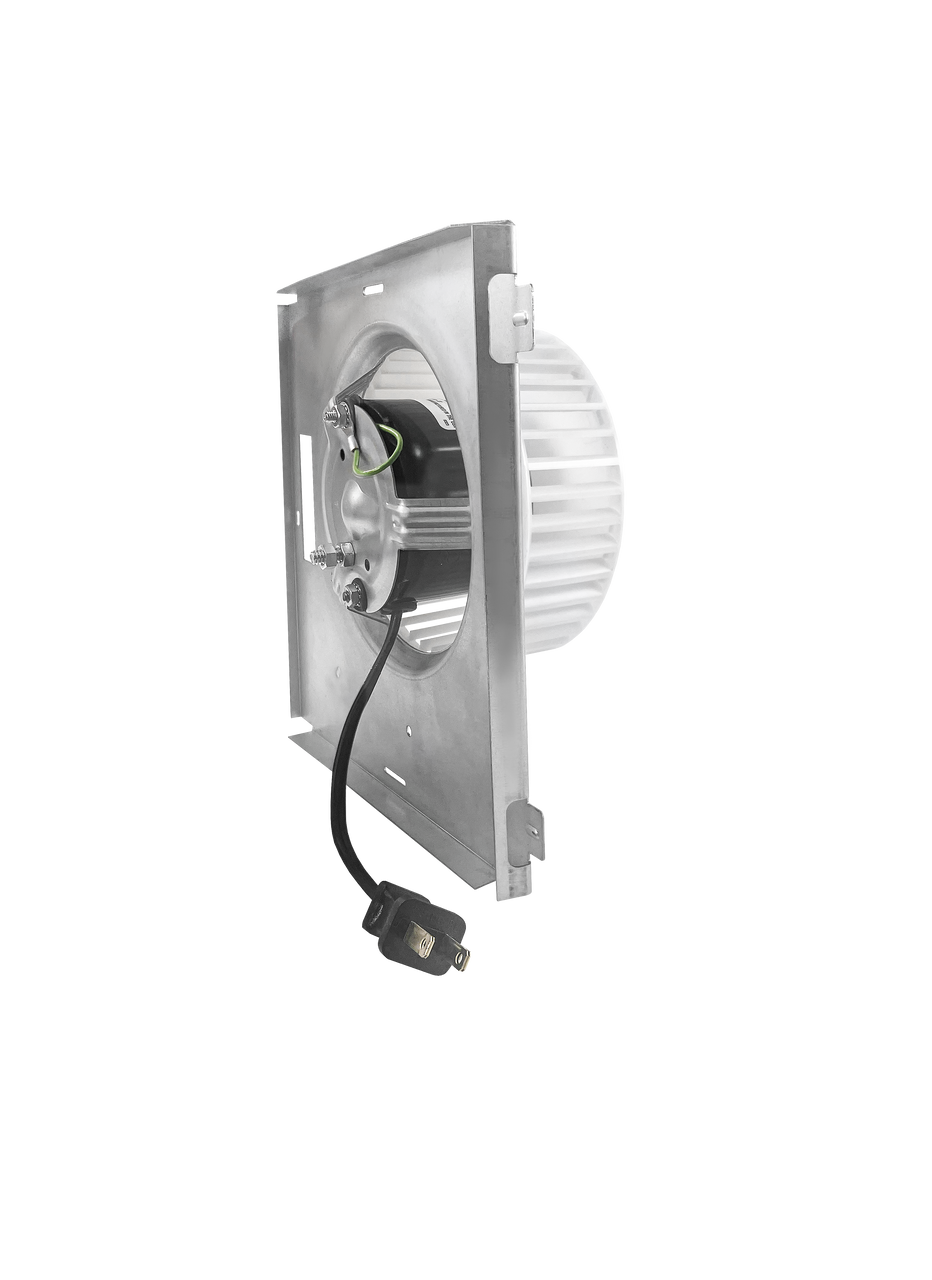

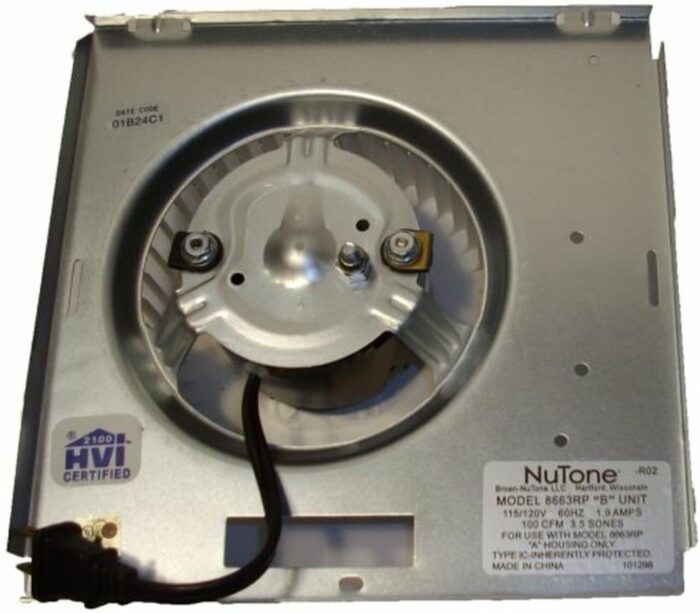

The Broan-Nutone 97-01-7705 is a blower assembly used as a replacement for Broan-Nutone ventilation systems. This assembly contains a motor, blower wheel, and housing to enhance airflow and efficiency in compatible systems. It is designed to replace Nutone assemblies 8663RP and 8814R.

• Includes motor, blower wheel, and housing.
• Designed to promote optimal airflow.
• Replaces Nutone assemblies 8663RP & 8814R.

Product Highlights

This blower assembly is critical for maintaining ventilation efficiency in your system.

Product Information

Standard Information

• Brand: Broan-Nutone
• MPN: 97-01-7705

Technical Specifications

• Motor Diameter: 3.3 inches
• Motor Shaft: 1/4 Dia. x 1 Long
• Rotation: CCW Viewing Shaft End
• Mounting Studs: 2 Opposite Shaft End
• Motor Case Length: 1 15/16 inches
• Input Voltage: 115 Volt
• Plug Type: 2-Prong
• Blower Wheel Diameter: 5 3/4 inches
• Blower Wheel Width: 2 inches
• Blower Wheel Bore: 1/4 inches
• Mounting Bracket Dimensions: 9 x 9 inches including mounting tags on one side
