BROAN-NUTONE 97-01-1220 Blower Assembly

Product Description

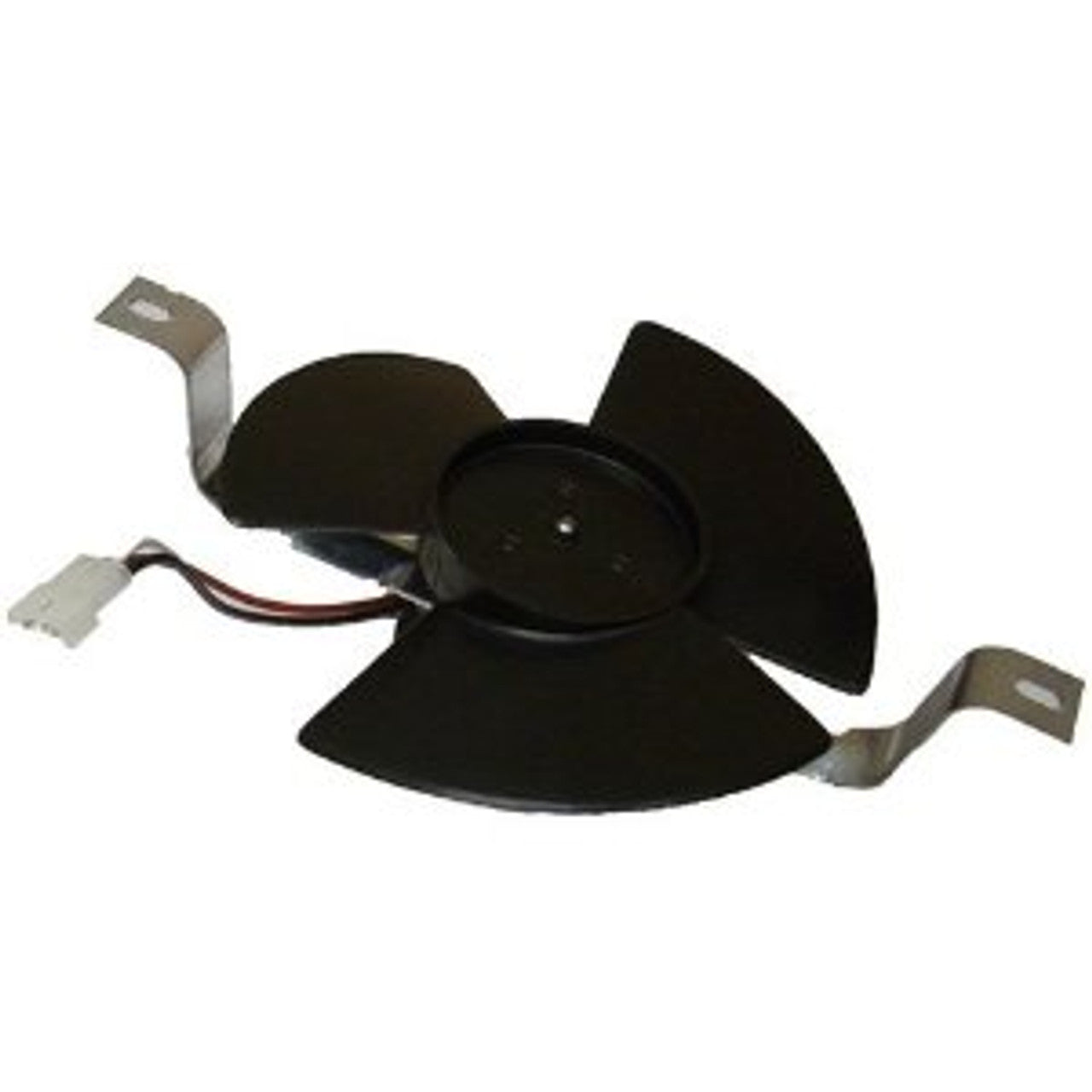

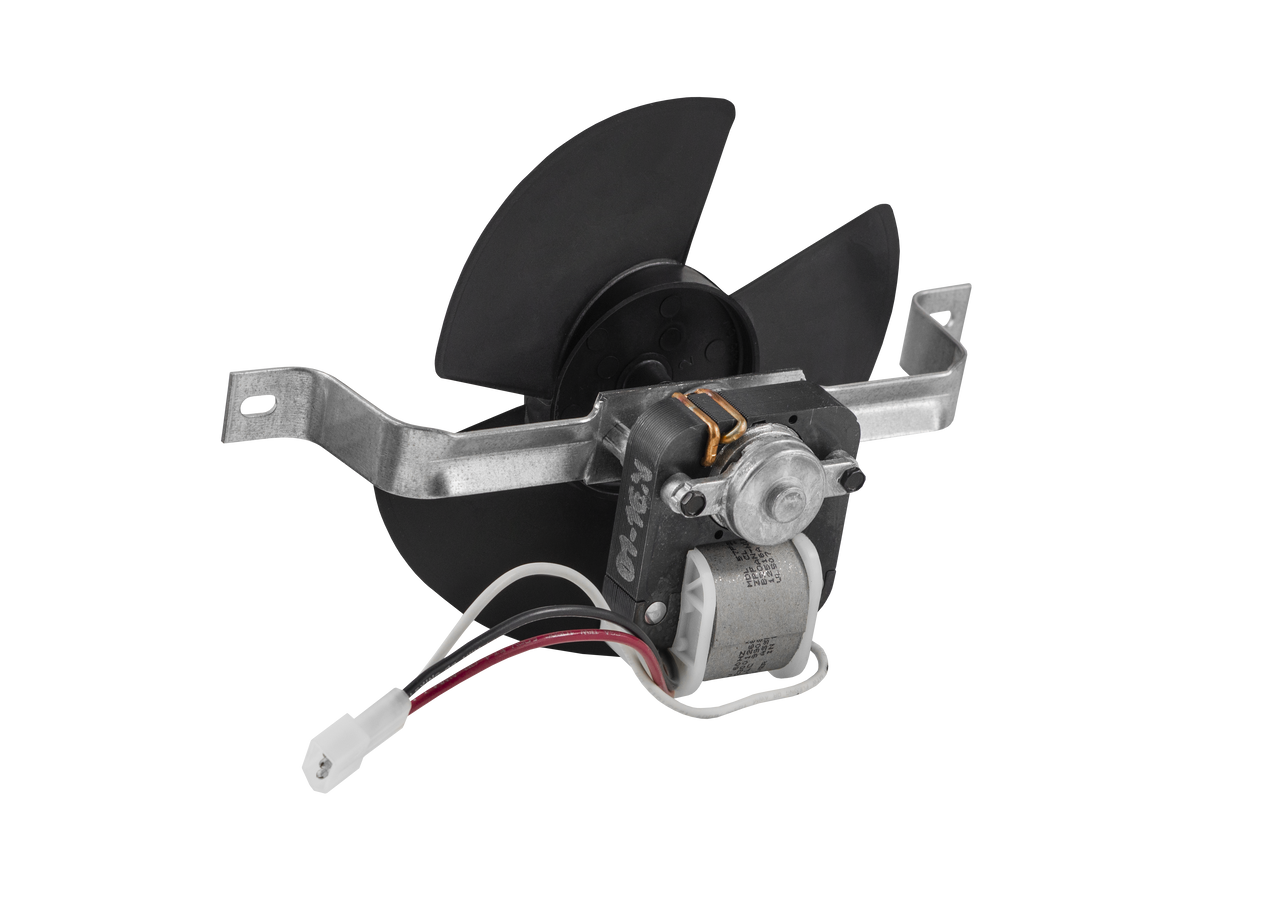

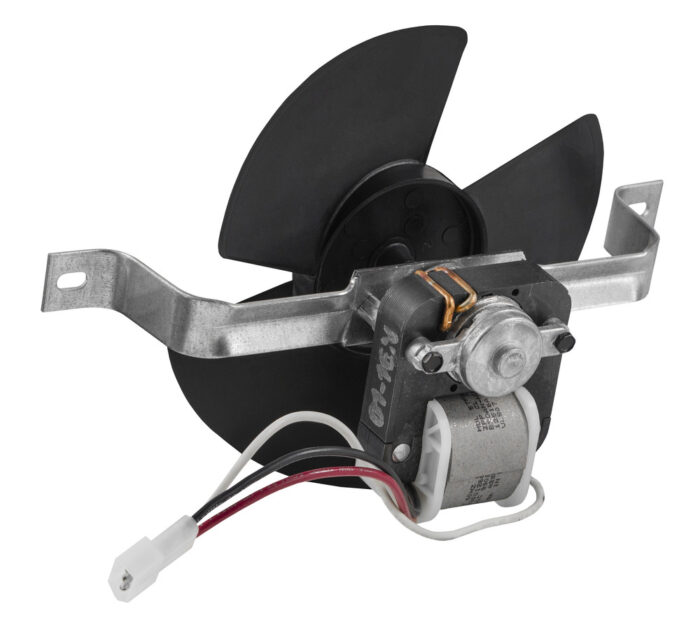

The BROAN-NUTONE 97-01-1220 blower assembly is an essential replacement component for various ventilation systems. It is equipped with a C-Frame electric motor and a three-blade fan. This motor runs on 120V and 60 Hz power supply, drawing a current of 0.7 Amps. The fan assembly is supplied with a mounting bracket that measures eight and three-eighths inches center to center.

• Replacement part for ventilation systems
• C-Frame electric motor with three-blade fan
• Operates on 120V and 60 Hz power

Product Highlights

Reliable blower assembly for enhancing airflow in ventilation systems.

Product Information

Standard Information

• Brand: BROAN-NUTONE
• MPN: 97-01-1220

Technical Specifications

• Input Voltage: 120V
• Input Frequency: 60 Hz
• Input Current: 0.7 Amps
• Stack: 9/16 inches
• Fan Type: 6 Three Blade Fan
• Mounting Bracket: 8-3/8 inches Center to Center
• Rotation: CCW
• Speed: 2
• Plug Type: Special 3 Wire Plug
