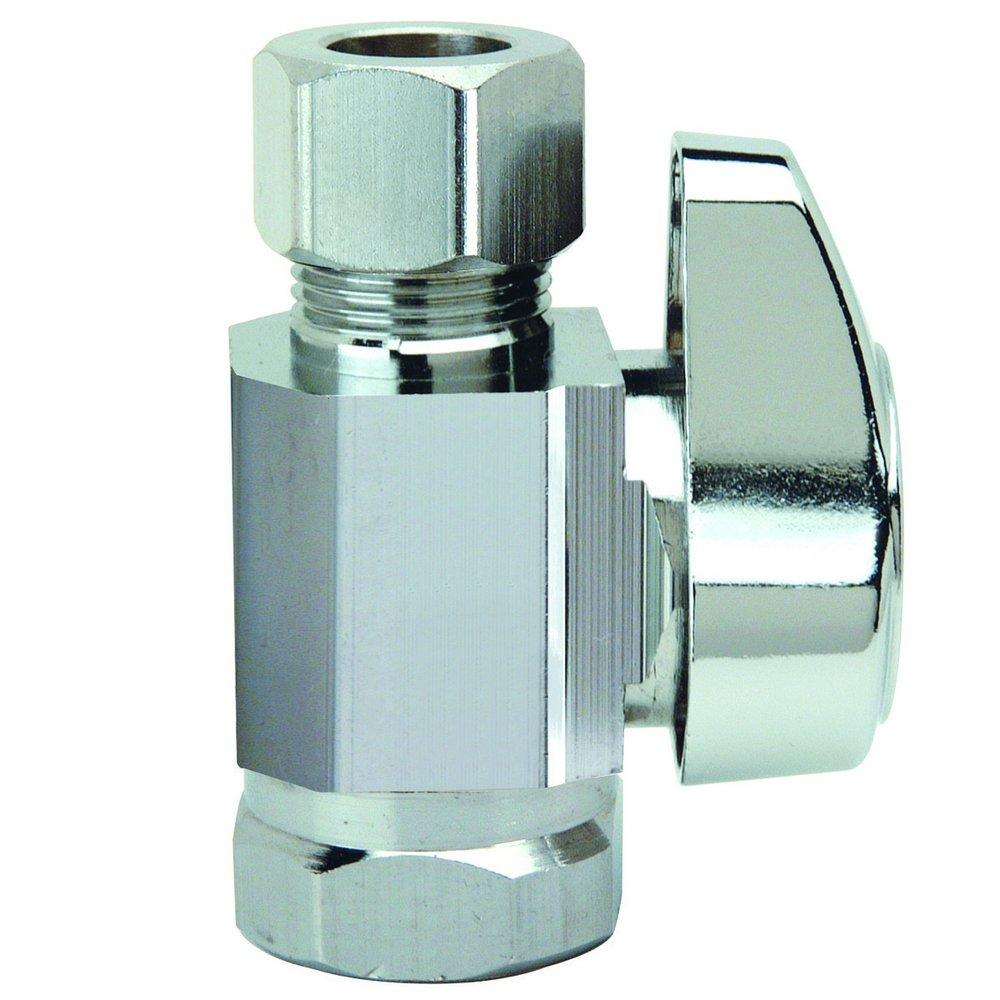

BrassCraft G2R10XC 1/4 Turn Straight Stop Valve 3/8 inch FIP x 3/8 inch OD Compression Chrome

Product Description

BrassCraft G2R10XC 1/4 Turn Straight Stop Valve is designed to control water flow to household plumbing fixtures such as faucets, toilets, dishwashers, and washing machines. The valve features a polished chrome finish and a durable machined brass body.

• 1/4-turn operation
• 3/8 inch FIP inlet x 3/8 inch OD compression outlet
• Compatible with copper, PEX, and CPVC

Product Highlights

This valve allows for smooth on-off operation without freeze-ups, even after long periods of non-use. It is lead-free and compliant with low-lead requirements in California and Vermont. The handle is corrosion-resistant and designed for easy removal to protect against accidental operation during rough-ins.

Product Information

Standard Information

• Brand: BrassCraft
• Manufacturer: BrassCraft Manufacturing

Technical Specifications

• MPN: G2R10XC
• Inlet Size: 3/8 inch
• Outlet Size: 3/8 inch
• Inlet Type: FIP
• Outlet Type: OD Compression
• Material: Chrome Plated Brass
• Pressure Rating: 125 psi
• Temperature Rating: 40 to 140 deg F
• Dimensions: 1.88 inches L
• Type: 1/4 Turn
• Finish: Polished Chrome
