Product Description

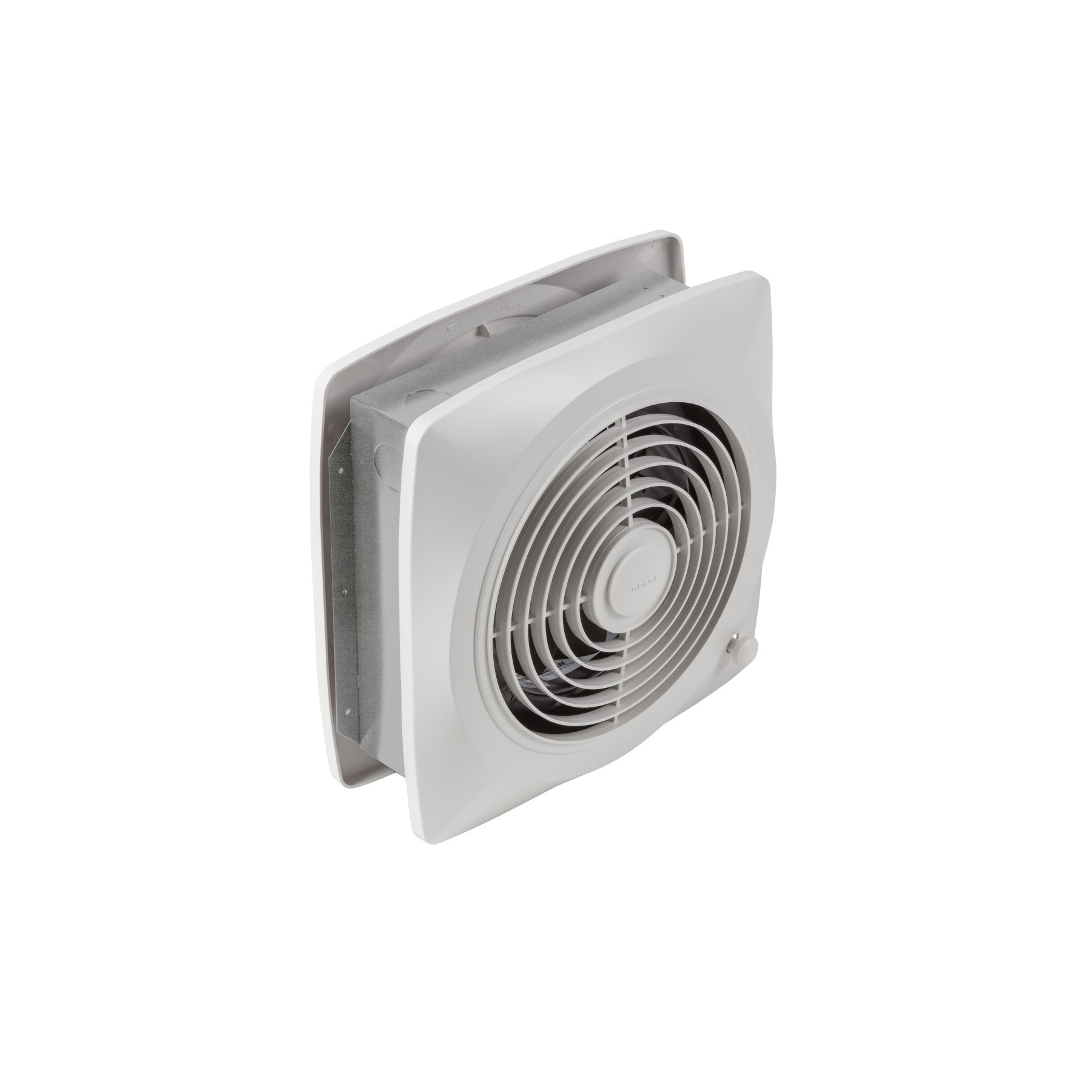

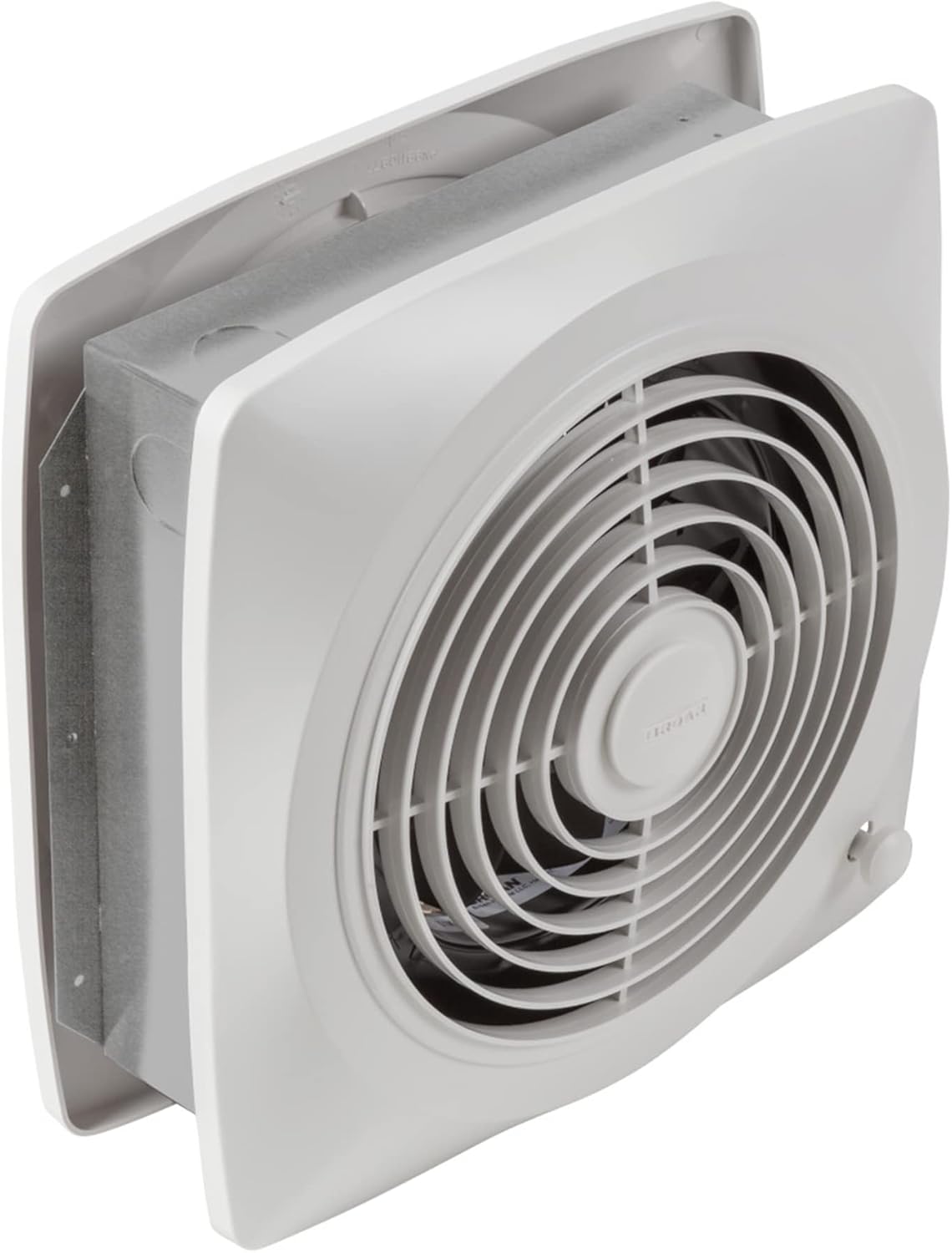

The Broan-NuTone 511 Room-to-Room Ventilation Fan eliminates humidity and smoke. This fan features an adjustable speed switch with positive off. It operates at 180 CFM with a 4.5 Sone rating. The unit is designed to fit walls from 3" to 5.5" thick and includes a permanently lubricated motor.
- Includes Adjustable Speed Switch With Positive Off
- Operates at 180 CFM and has a 4.5 Sone rating
- Adjustable housings designed to fit walls from 3" to 5.5" thick
Product Highlights
This ventilation fan helps eliminate tobacco smoke and cooking odors to keep your house smelling fresh.
Product Information
Standard Information
-
Brand: Broan-NuTone
-
Manufacturer Part Number: 511
-
Country of Origin: Mexico
Technical Specifications
-
Color: White
-
Style: Fan
-
Voltage: 120 Volt
-
Wattage: 4.5 watts
-
Room Type: Kitchen
-
Model Name: Ventilation Fan
-
Finish Type: Painted
-
Noise Level: 4.5 Sones
-
Power Source: Ac
-
Special Feature: Includes Adjustable Speed Switch With Positive Off
-
Air Flow Capacity: 180 Cubic Feet Per Minute
-
Batteries Included?: No
-
Batteries Required?: No
-
Electric fan design: Exhaust Fan
-
Included Components: Exhaust Fan
-
Indoor/Outdoor Usage: Indoor
-
Recommended Uses For Product: Exhausting, Ventilating
-
Blade Material: Plastic
-
RPM: 1575 rpm
-
Type: Room To Room Wall Fan
-
Sones: 4.5 Sone
-
Width: 13.5 in
-
Height: 5.5 in
-
Length: 11.5 in
-
Amperage: 0.9 Amp
-
Duct Size: 11.5 in
-
Duct Shape: Round
-
Nightlight: No
-
Airflow Rate: 180 CFM
-
Applications: For Removing Humidity From Laundry Rooms, Tobacco Smoke From Rec Rooms, Fumes From Workshops Or Cooking Fumes From Kitchens
-
Grille Width: 13.5 in
-
Installation: Wall
-
Grille Length: 13.5 in
-
Housing Width: 11.5 in
-
Housing Height: 11.5 in
-
Grille Material: Polymeric
-
Housing Material: Galvanized
-
MPN: 511
-
UPC: 026715022922
-
Brand: Broan-NuTone
-
Size: 8-Inch 180 CFM 3.5 Sones
-
Number of Items: 1.0
-
Product Type: ELECTRIC_FAN
-
Manufacturer: Broan
-
Model / MPN: 511
-
Amperage Rating: 0.9 A
-
Application: For removing humidity from laundry rooms, tobacco smoke from rec rooms, fumes from workshops or cooking fumes from kitchens
-
Domestic/Import: Domestic
-
Flow Rate: 180 cfm
-
Frequency Rating: 60 Hz
-
Housing Length: 11.5 in
-
Mounting Type: Wall
-
Standards/Approvals: UL Listed|HVI 2100 Certified
-
Voltage Rating: 120 VAC
-
CFM: 180
-
Sound Level (Sones): 4.5
-
UL Listed: Yes
-
Grille Finish: White
-
Humidity Sensing: No
-
Motion Sensing: No
-
Motor Engineered For Continuous Operation: No
-
Night Light: No
-
Radiation Damper Available: No
-
Room Side Installation: No
-
UL Listed for use over bathtubs or showers when connected to a GFCI circuit: No
-
Heater Wattage: 0
-
Rated Amps: 0.9
-
Can Be Used To Comply With Title 24: No
-
High Efficiency Luminaire: No
-
Colour: White
-
Special feature: Includes Adjustable Speed Switch With Positive Off
-
Recommended uses for product: Exhausting, Ventilating
-
Mounting type: Ceiling Mount
-
Power Source Type: Corded Electric
-
Controller Type: Button Control
-
Number Of Speeds: 1
-
Number of Blades: 3
-
Switch Type: Push Button
-
Indoor Outdoor Usage: Indoor
-
Control Method: Touch
-
Is Product Cordless: No
-
Is Electric: Yes
-
Number of Power Levels: 1
-
Main Power Connector Type: NEMA 5-15
-
Material Type: Plastic
-
Specification Met: UL
-
Style Name: Fan
-
Theme: Ventilation, Air Quality Control
-
Air Flow: 180 CFM
-
Fan Type: Utility
-
Grille Color: White
-
Grille Shape: Square
-
Motor Rpm: 1575
