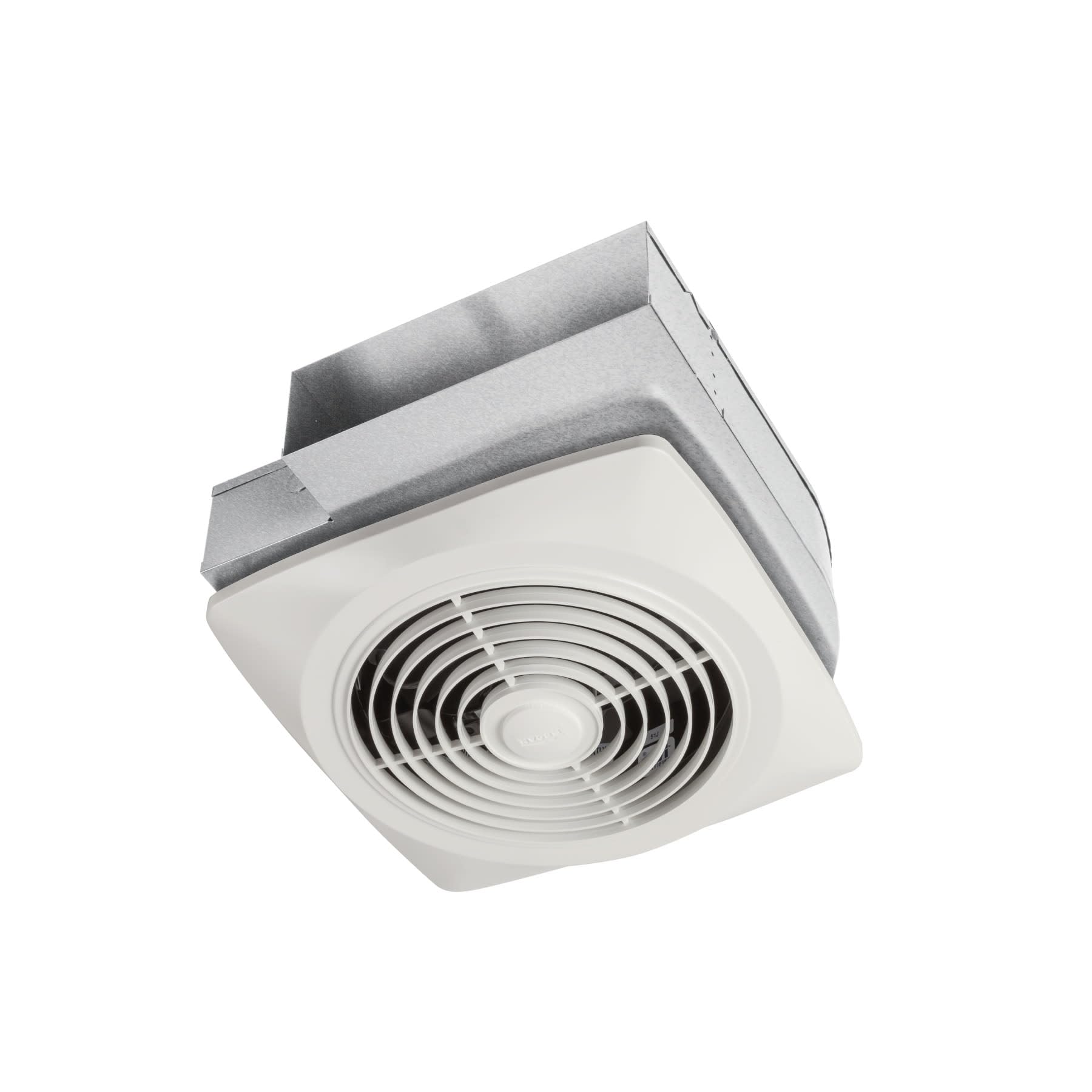

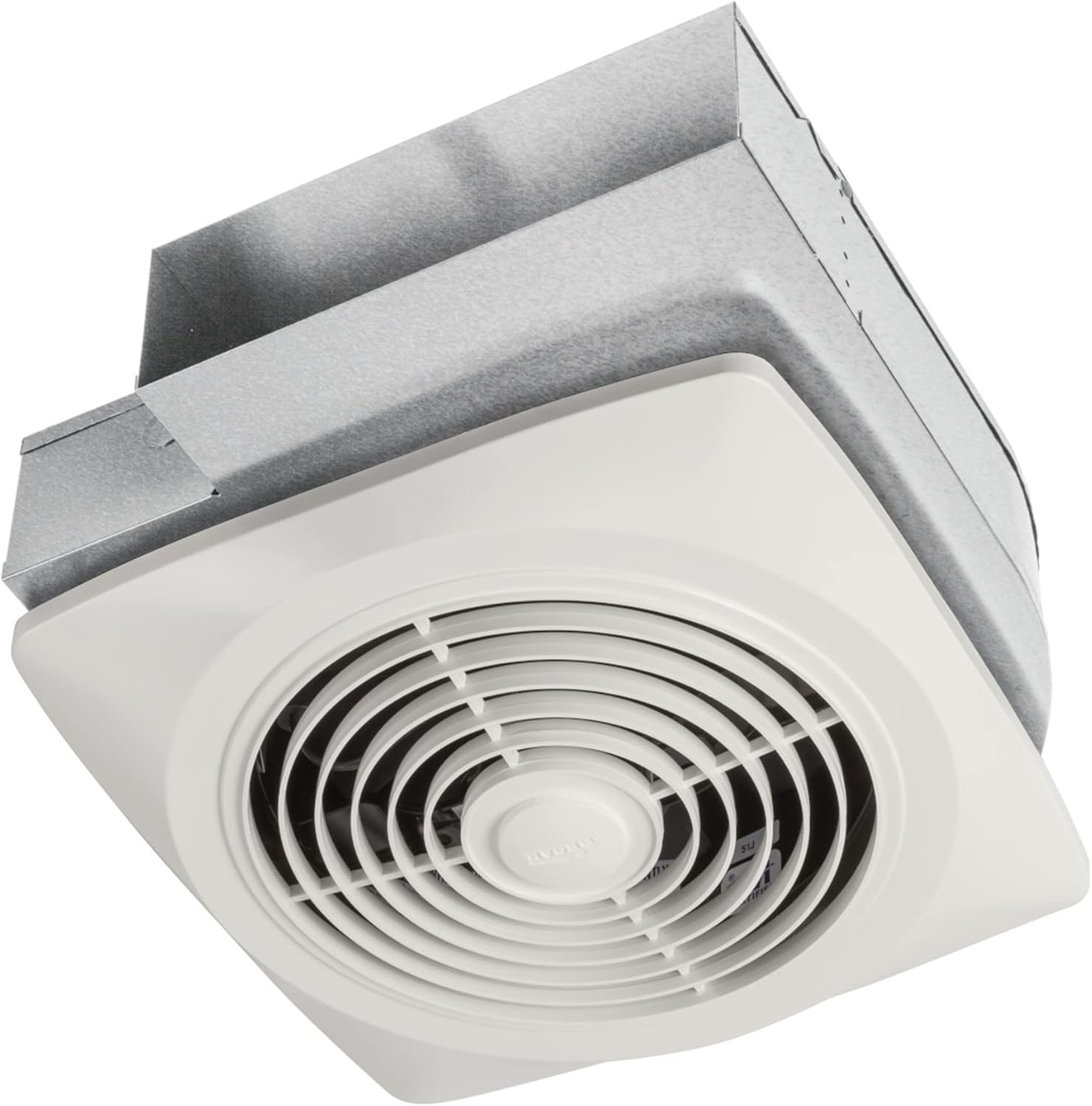

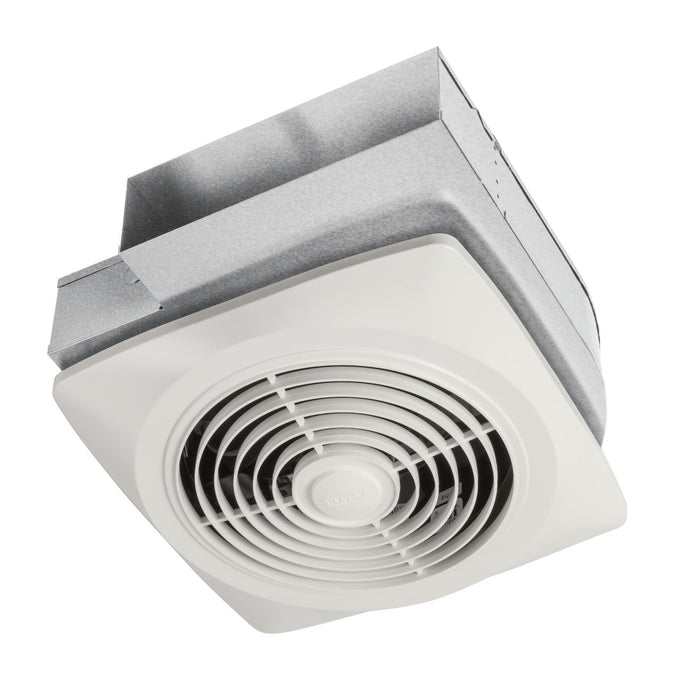

Broan-Nutone 503 Bath Fan 160 CFM 5.0 Sones 8-Inch

Product Description

The Broan-NuTone 503 Bath Fan is an 8-inch fan that delivers 160 CFM at 5.0 Sones. This bath fan is designed to eliminate odors and humidity. It can be installed between ceiling joists or wall studs. The fan features a built-in damper to prevent backdrafts.

• Operates at 160 CFM and 5.0 Sones for efficient performance.
• Features a built-in damper to prevent backdrafts.
• The galvanized steel housing installs easily between ceiling joists or wall studs.

Product Highlights

This Broan-NuTone bath fan is designed for eliminating odors and humidity in kitchens and bathrooms. It operates efficiently and features a backdraft damper.

Product Information

Standard Information

• Brand: BROAN-NUTONE
• Manufacturer Part Number: 503
• Country of Origin: US - United States

Technical Specifications

• Color: White
• Style: Fan
• Finish: White
• Voltage: 120 V
• Wattage: 60 watts
• Room Type: Kitchen
• Model Name: bath fan
• Finish Type: White
• Power Source: AC
• Collection Name: Home
• Batteries Included?: No
• Batteries Required?: No
• Electric fan design: Exhaust Fan
• Included Components: fan
• Installation Method: Full Install
• Indoor/Outdoor Usage: Indoor
• Recommended Uses For Product: Ventilating
• Size: 8-Inch 160 CFM 5.0 Sones

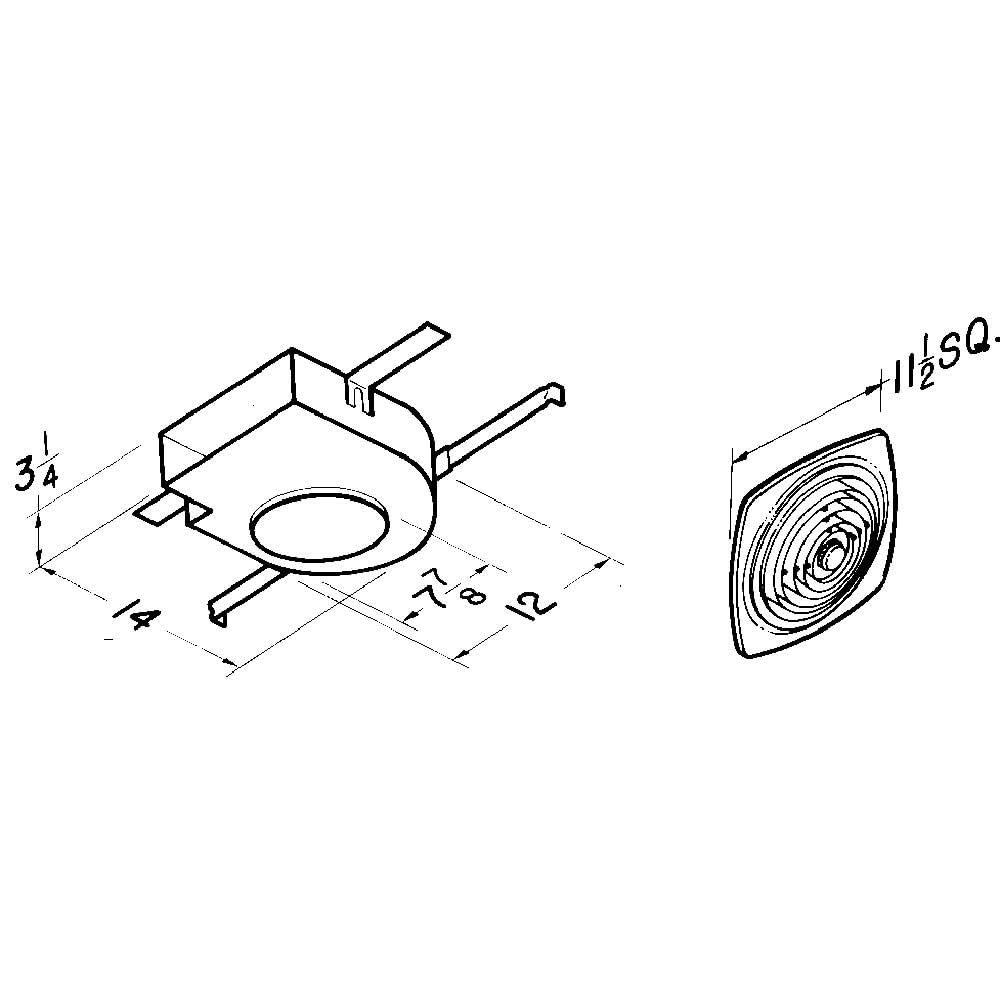

• Housing Dimensions: 14 L x 12 in. W
• CFM: 160

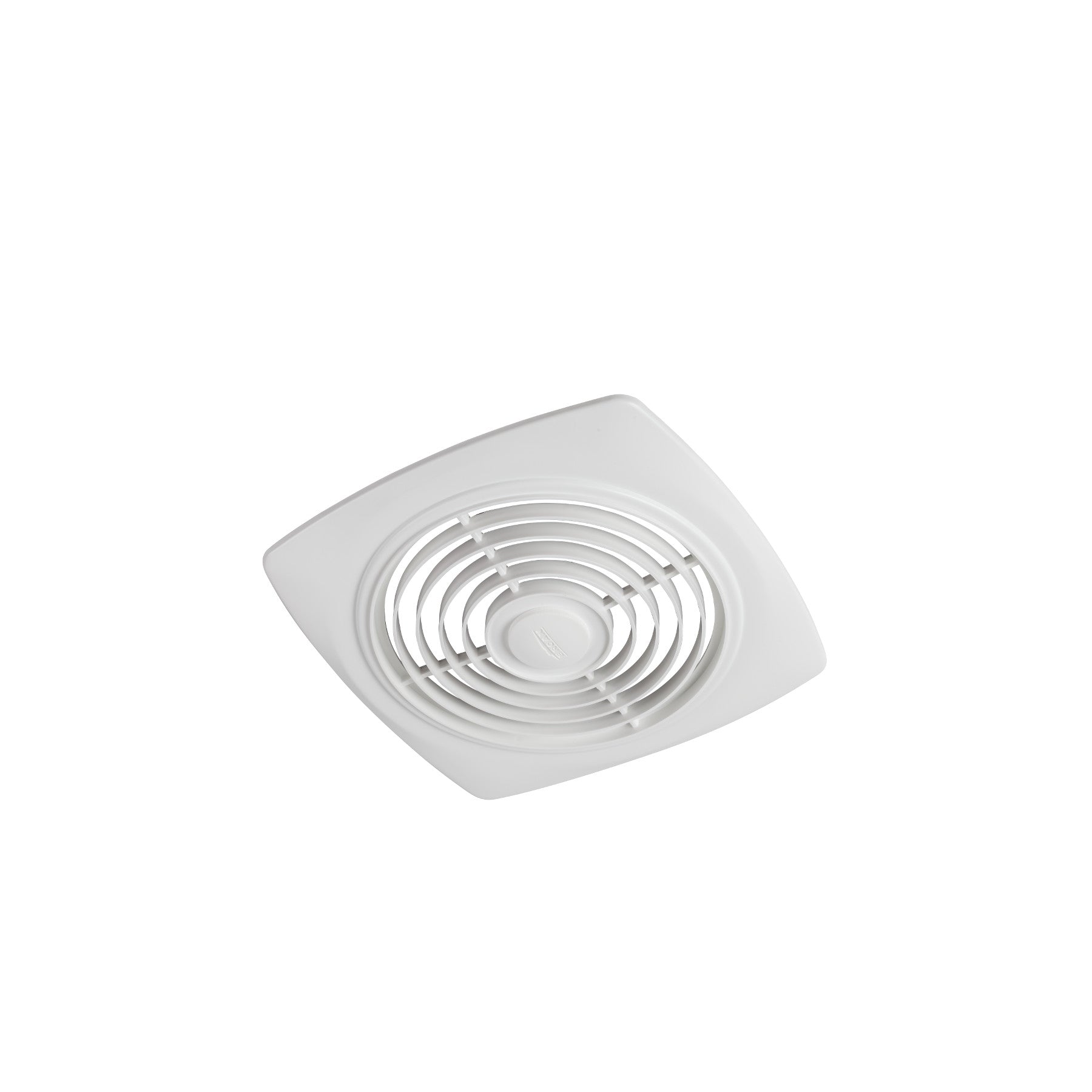

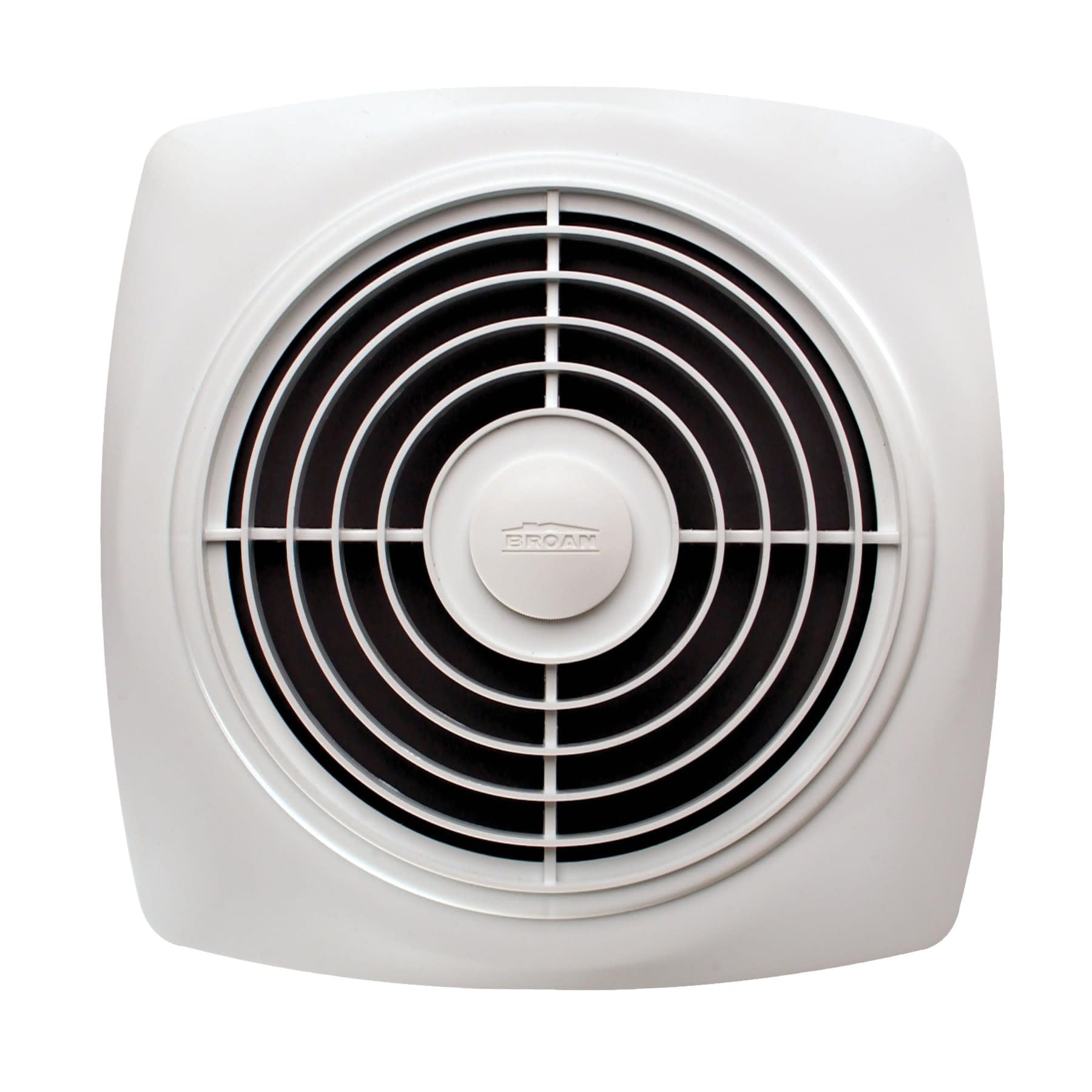

• Grill Size: 11-1/2 in. L x 11-1/2 in. W
• Duct Size: 3-1/4 in.
• Number of Items: 1.0
• Cooling Method: forced air
• Noise Level: 5 Sones
• Material: Alloy Steel
• Air Flow Capacity: 160 Cubic Feet Per Minute
• Manufacturer: Broan
• Part Number: 503
• Item model number: 503
• Is Discontinued By Manufacturer: No
• Blade Length: 10 Inches
• Mounting Type: Wall Mount
• Model: Broan-NuTone 503
• Number of Speeds: 1
• Vent Style: Flat
• Item Depth: 13 in
• Mounting: Wall, Ceiling, Siding
• Ventilation System: Exhaust Fan
• Number of Blades: 1
• Shape: Square
• Features: Paintable, Timer
• Room: Any Room, Bathroom, Kitchen
• Type: Wall Fan
• Item Height: 3.25
• Item Width: 12"
• Item Diameter: 8 in
• ENERGY STAR® certified: No
• Grille Length: 11.5
• Grille Width: 11.5
• Sound Level (Sones): 5
• UL Listed: Yes
• Grille Finish: White
• Humidity Sensing: No
• Motion Sensing: No
• Motor Engineered For Continuous Operation: No
• Night Light: No
• Radiation Damper Available: No
• Room Side Installation: No
• UL Listed for use over bathtubs or showers when connected to a GFCI circuit: No
• Heater Wattage: 0
• Rated Amps: 1.5
• Can Be Used To Comply With Title 24: No
• Minimum Construction Space Required: 2" x 4"
• Manufacturer Warranty: 1 Year
• High Efficiency Luminaire: No
