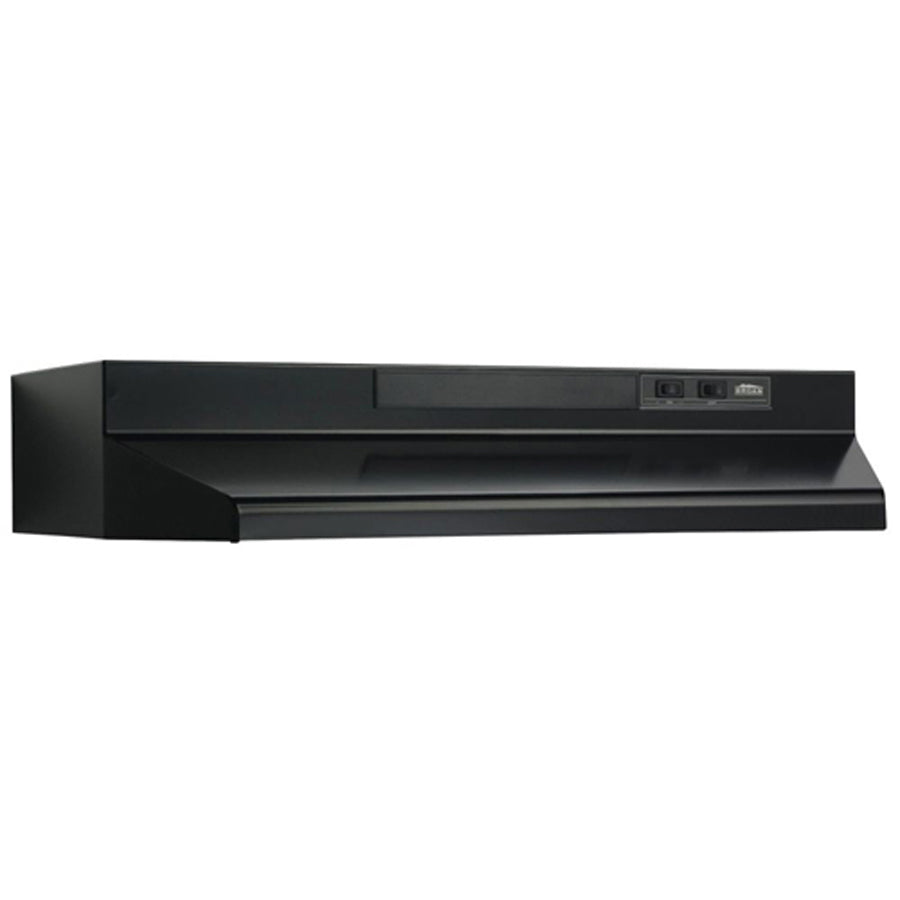

Broan-nutone 433023 Range Hood 220 Cfm 30 Inches Black

Product Description

The BROAN-NUTONE 433023 is a ducted or non-ducted under-cabinet range hood designed for residential kitchen ventilation. Running on 115 volts at 1.8 amps, it moves up to 220 CFM through a two-speed rocker switch fan control. The steel body is finished in black powder coating with all edges hemmed for safety and structural integrity. At 7 sones on high, the noise level is typical for this class of hood. A licensed electrician or experienced installer handles the wiring, while the ductwork connection suits either a 10 inch x 3-1/4 inch rectangular or 7 inch round collar. The unit is ADA compliant and carries UL listing.

The 433023 fits under-cabinet installations in residential kitchens above standard ranges or cooktops. The 30 inch width suits most 30 inch range openings. The hood accepts a 75-watt incandescent lamp for cooktop task lighting. The reusable grease filter is removable for straightforward maintenance without specialized tools. Both ducted and non-ducted configurations are supported, making it usable in kitchens where exterior venting is not available.

Key Features

• 220 CFM airflow with two-speed rocker switch fan control
• Ducted and non-ducted installation options via 10 inch x 3-1/4 inch rectangular or 7 inch round duct collar
• Removable and reusable grease filter for easy maintenance
• Black powder-coat finish applied with advanced technology coating process
• All edges hemmed for safety and added structural strength
• ADA compliant; UL listed
• Accepts 75-watt incandescent lamp for task lighting

Compatibility

Designed as an OEM-style replacement or new-installation under-cabinet range hood for standard 30 inch residential kitchen cabinetry configurations supporting ducted or non-ducted ventilation setups.

Installation Notes

Installation should be performed by a qualified electrician or experienced installer following local electrical codes and NEC requirements. Disconnect power at the breaker before beginning any wiring work. Verify duct routing and termination point before cutting cabinet openings, and confirm the selected duct collar size matches the existing or planned ductwork. Do not exceed the lamp wattage rating of 75 watts when installing the cooktop light.

Technical Specifications

• Airflow: 220 CFM
• Voltage Rating: 115 volts
• Current Rating: 1.8 amps
• Sound Level: 7 sones
• Duct Size: 10 inches x 3-1/4 inches rectangular or 7 inches round
• Duct Type: Ducted and non-ducted
• Fan Control: Two-speed rocker switch
• Lamp Type: 75-watt incandescent
• Width: 30 inches
• Depth: 17.5 inches
• Height: 6 inches
• Weight: 13.8 pounds
• Material: Steel
• Finish: Black powder coat
• Approval: UL listed
• ADA Compliant: Yes

Standard Information

• Brand: BROAN-NUTONE
• Manufacturer Part Number: 433023
