Broan-Nutone 198 Wall Heater 2000/4000W 240 Volt 16-3/8 x 1-1/4 x 20-1/4 Inch

Product Description

The Broan-NuTone 198 wall heater provides an energy-saving heating solution for residential and light commercial use. The heater features a white painted grille and is factory wired for 4000W at 240V AC but easily converts to 2000W at 120V AC. It includes an adjustable, front-mounted thermostat and a manual reset thermal overload protector for lasting use. The housing is made of 22-gauge steel.

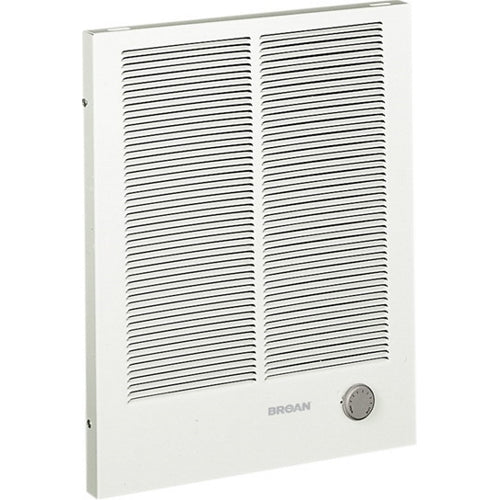

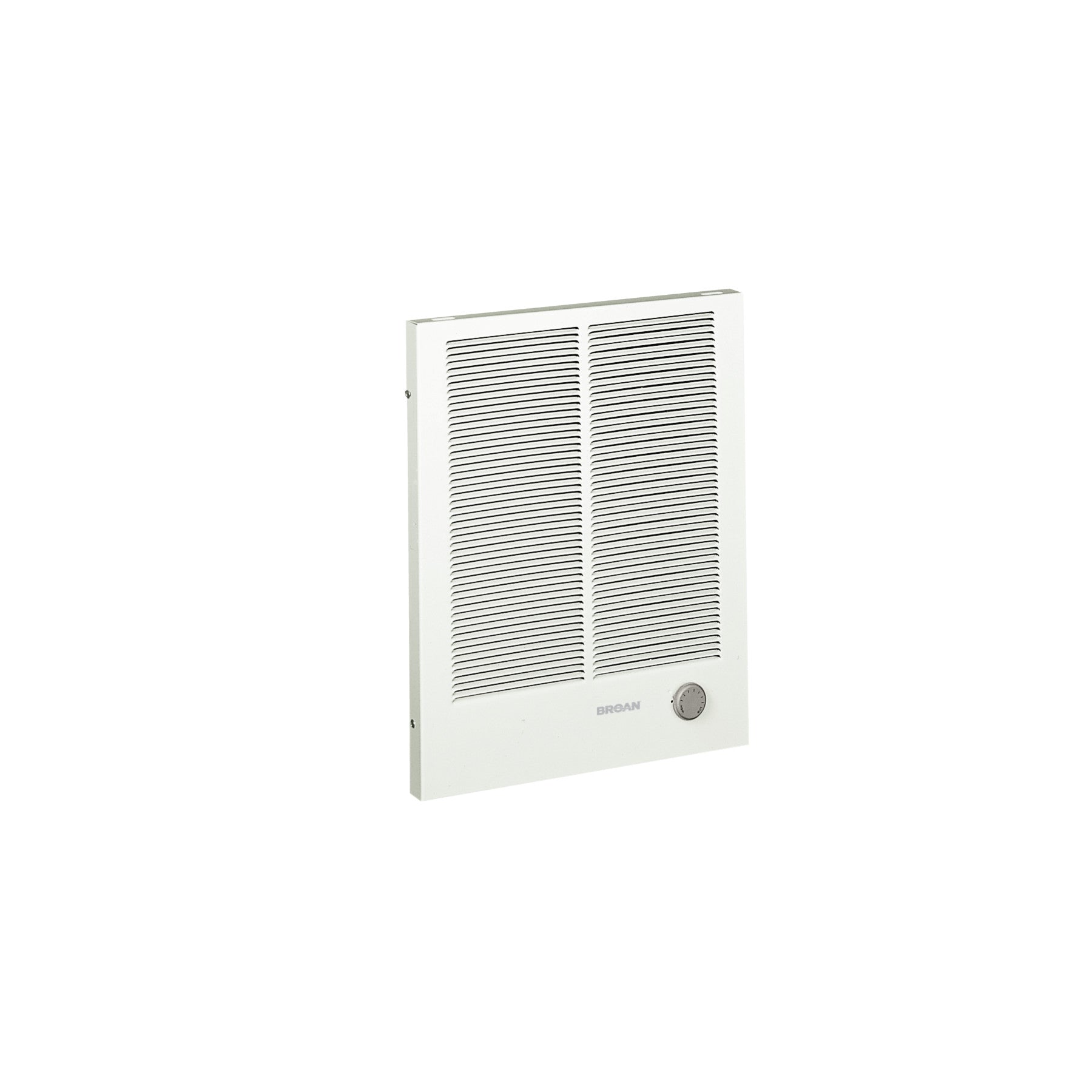

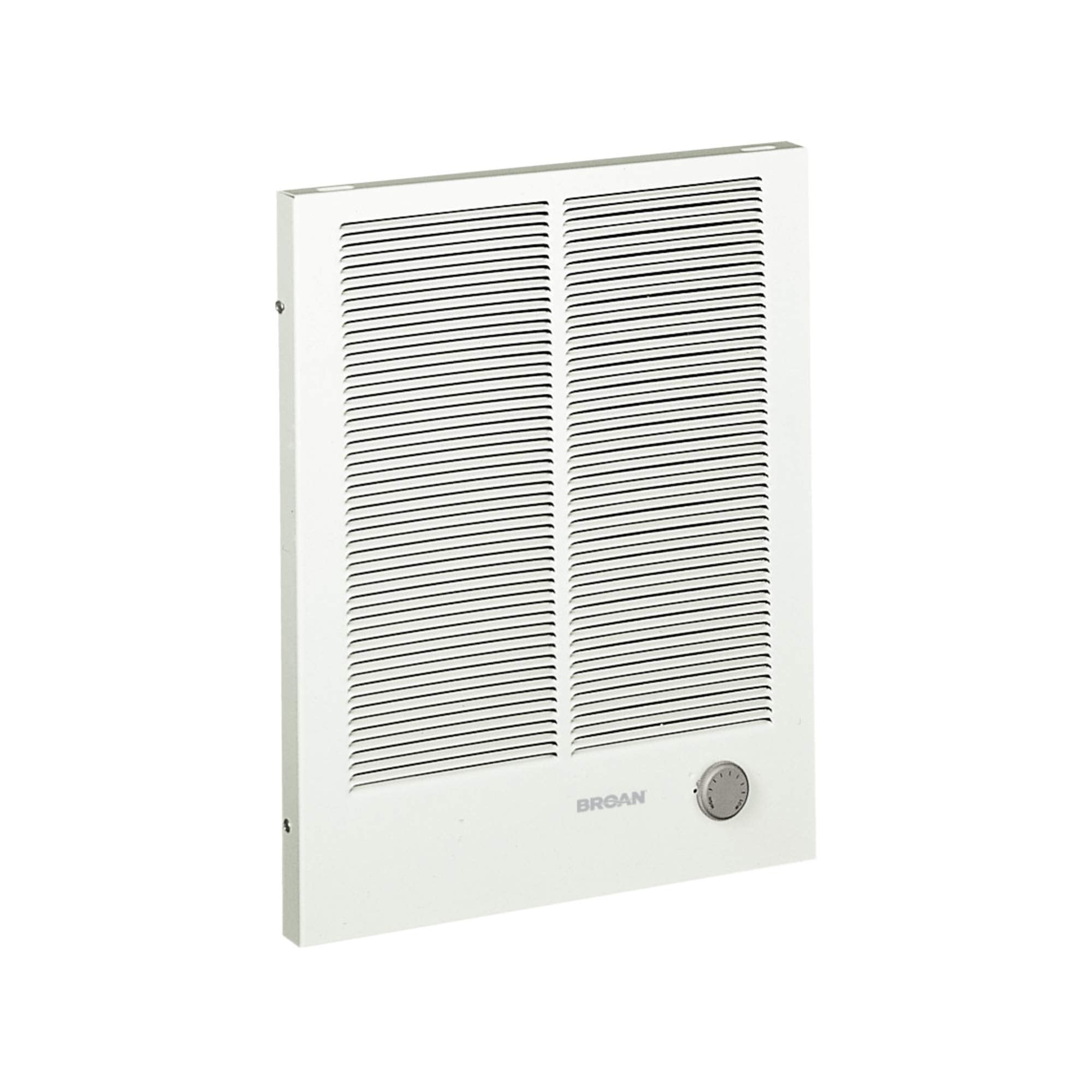

• Wall Heater with white painted grille
• Features a heavy-duty, 18-gauge steel grille with downflow louvers
• Includes an adjustable, front-mounted thermostat for easy temperature control

Product Highlights

High capacity wall heater with adjustable thermostat and durable steel construction, suitable for residential and light commercial applications.

Product Information

Standard Information

• Brand: Broan-NuTone
• Manufacturer Part Number: 198
• Country of Origin: United States

Technical Specifications

• Type: High-Capacity
• Brand: Broan-NuTone
• Voltage: 120 Volts
• Wattage: 2000/4000 Watt
• Applications: For Lobbies, Entrance Ways, Vestibules Or Any Area Requiring High Wattage Heating
• Housing Material: 22-Gauge Steel
• Size: 2000/4000 Watt 240 VAC
• Model / MPN: 198
• Amperage Rating: 8.3/16.7 A
• Material: Steel
• Mounting Type: Wall
• Power Rating: 4/2 kW
• Standards/Approvals: UL Listed
• Auto Shut-off: Yes
• Heater Type: Fan-Forced Wall
• Number Of Heat Settings: Variable (Infinite)
• Thermostat: Yes
• UL Listed: Yes
• Coverage Area (sq ft): 265-400
• BTU/hr at 208 Volts: 10204
• BTU/hr at 240 Volts: 13653
• Grille Dimensions - Width: 16.375
• Housing Length/Depth: 3.75
• Watts at 208 VAC: 3000
• Watts at 240 VAC: 4000
• Special Feature: Adjustable Temperature
• Form Factor: Wall
• Indoor/Outdoor Usage: Indoor
• Recommended Uses For Product: Home, Office
• Room Type: Bedroom, Kitchen
• Heating Coverage: 265-400 sq ft
• Fuel Type: Electric
• Amperage: 16.67 Amps
• Part Number: 198
• Item model number: 198
• Is Discontinued By Manufacturer: No
• Style: 4000/2000 Watt
• Item Package Quantity: 1
• Special Features: Adjustable Temperature
• Batteries Included?: No
• Batteries Required?: No
• Application: For Lobbies, Entrance Ways, Vestibules Or Any Area Requiring High Wattage Heating
• ARRA Compliant: N
• Buy American Compliant: N
• Catalog Number: 198
• Country of Origin: USA
• EU RoHS Indicator: N
• Mounting: Wall Stud, Recess/Surface
• Standard: UL
• Standards: UL Listed
• UNSPSC: 40101809
