Broan-Nutone 170 Wall Heater, Painted Grille, 500/1000 Watt 120 VAC

Product Description

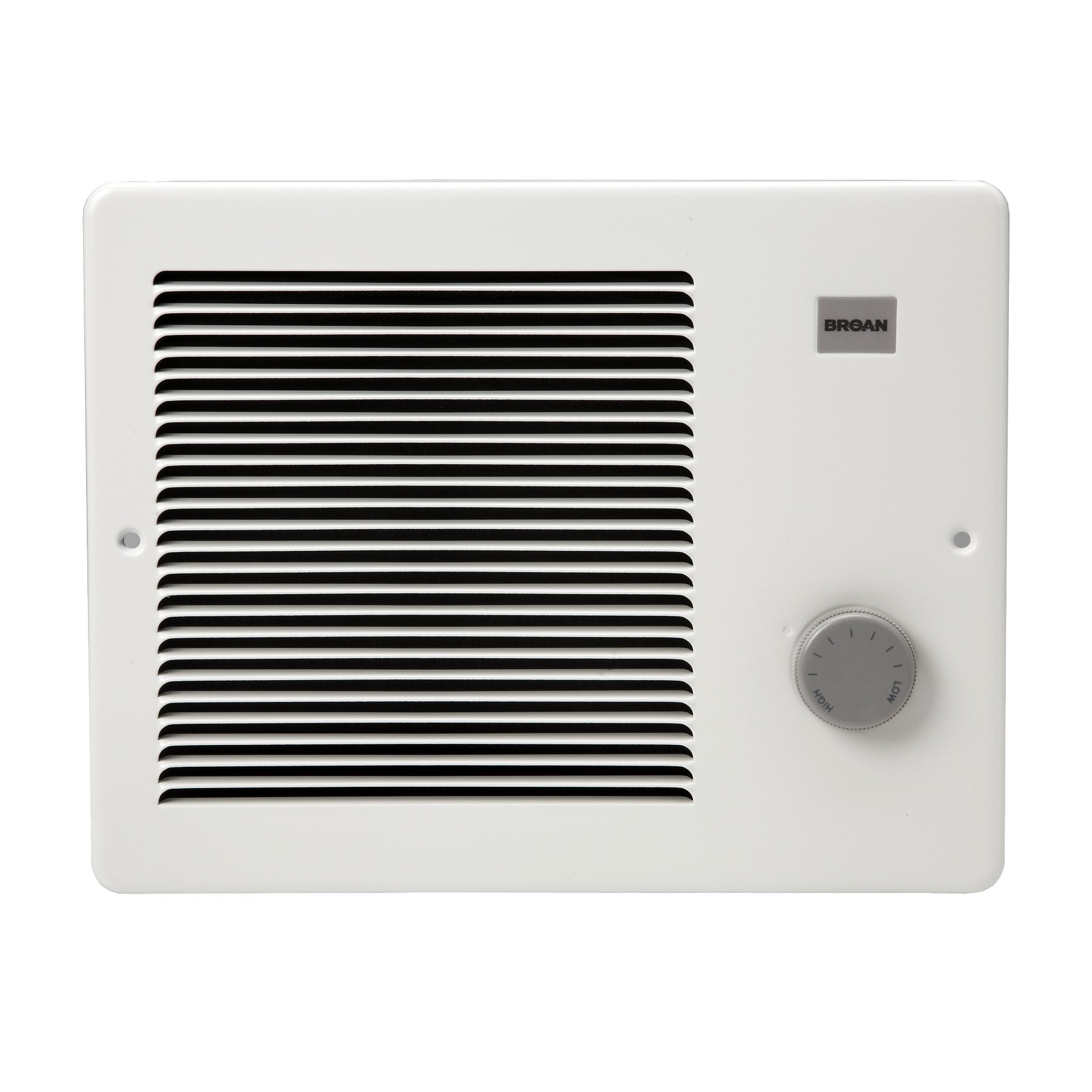

The Broan-NuTone 170 Wall Heater with Painted Grille operates at 500/1000 Watt 120 VAC and features White Enamel Steel construction. Ideal for bathrooms or other areas where supplemental warmth is desired, this wall-mounted heater provides efficient heating for small spaces. It features a white grille with downflow louvers to direct heat.

• Painted Grille
• Operates at 500/1000 Watt 120 VAC
• White Enamel Steel construction

Product Highlights

Provides efficient heating for small spaces with a white grille and adjustable thermostat for customized comfort.

Product Information

Standard Information

• Brand: BROAN-NUTONE
• Manufacturer Part Number: 170

Technical Specifications

• Wattage: 500/1000 Watt
• Amperage: 4.16 Amps
• Material: Steel
• Room Type: Bathroom, Kitchen
• Mounting Type: Wall Mount
• Batteries Included?: No
• Batteries Required?: No
• Included Components: Heater
• Product Dimensions: 3.75"D x 10.25"W x 7.75"H
• Product UPC: 02671500443
• 12-Digit UPC: 026715004430
• Applications: For Bathrooms Or Other Areas Where You Want Added Warmth On Demand
• Housing Material: 24-Gauge Steel
• Model / MPN: 170
• Amperage Rating: 4.16 A
• Application: For bathrooms or Other areas that requires added warmth on demand
• Power Rating: 1 kW
• Standards/Approvals: UL Listed
• Type: Fan Forced
• Auto Shut-off: Yes
• Heater Type: Fan-Forced Wall
• Number Of Heat Settings: Variable (Infinite)
• Thermostat: Yes
• UL Listed: Yes
• Coverage Area (sq ft): 65-100
• BTU/hr at 120 Volts: 3413
• BTU/hr at 240 Volts: 3413
• Grille Dimensions - Width: 12
• Housing Length/Depth: 3.75
• Watts And Amps At 240 Volts: 4.16
• Watts at 120 VAC: 1000
• Watts at 240 VAC: 1000
• Manufacturer Warranty: 1 Year
• Power Source: Electric
• Heating Element Material: Steel
• Control Style: Dial, Switch
• BTU Heating Rating: 3413 BTU
• Power: 1000 W
• Item Width: 10.25 in
• Collection: Model 170
• Depth: 4-1/4 in
• Height: 9-1/4 in
• Length: 4-1/4 in
• Product Type: Heater
• Volts: 120/208/240V
• Watts: 1000 W
• Weight: 6.17 lb
• Width: 12 in
• Item Depth: 3.75 in
• Mounting Location: Wall
• Dimensions: H: 9.3 in
• Dimensions: W: 12 in
• Dimensions: D: 4.3 in
• Voltage: 120 VAC
